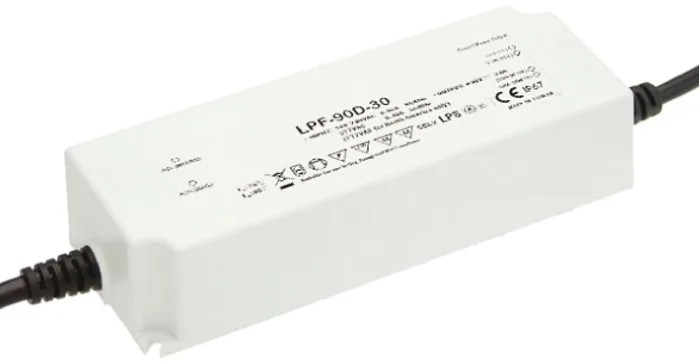

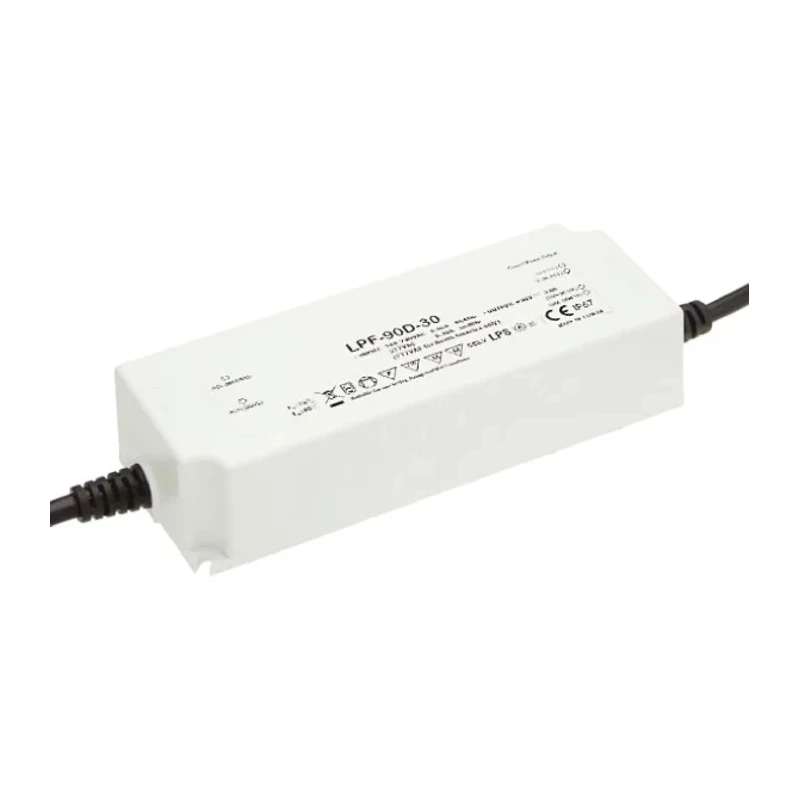

MEAN WELL Waterproof IP67 Enclosed Constant Voltage LED Driver, 36V, 90W, 2.5A Output, AC-DC
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Series | LPF-90 |
| Configuration | Encapsulated |
| Sub Type | LED Driver |
| Operating Modes | Constant Voltage |
| Number of outputs | 1 |
| Terminal type | Wire |
| Maximum Output Power | 90W |
| Input Voltage | 305, 90, 127, 431V ac |
| Output Voltage | 36V |
| Power Dissipation | 90W |
| Standards/Approvals | UL, EN, TUV |
| Primary Type | AC-DC |
| Driver Current | 2.5A |
Key Features
- The driver features a fully encapsulated plastic case suited for dry, damp, and wet locations.
- Universal AC input voltage range supports 90V to 305V AC operation.
- High efficiency up to 91% with built-in active power factor correction (PFC).
- Protected against short circuits, overload, over voltage, and over temperature conditions.
- Compliant with international safety and EMC standards including UL, EN, and TÜV certifications.
- Mounts securely via screw type and terminates with wire terminals for ease of installation.
- No dimming functionality ensures consistent constant voltage output.
- Designed specifically for industrial and commercial LED lighting use cases.
Product Description
MEAN WELL LPF-90-36 LED Driver is a robust, waterproof IP67 rated power supply delivering constant voltage for LED lighting systems. This 36V, 90W LED driver outputs a current of 2.5A, accommodating industrial and commercial lighting installations where reliable and durable power delivery is required.
The device features a fully encapsulated plastic case ensuring high ingress protection, suitable for use in dry, damp, or wet locations. The universal AC input voltage range supports operation from 90V up to 305V AC, enabling compatibility with a wide variety of power sources.
This LED driver integrates an active power factor correction (PFC) for improved energy efficiency, reaching up to 91%. It includes comprehensive protection mechanisms such as short circuit, overload, over voltage, and thermal protections to ensure safe and stable performance.
Mounting is facilitated by screw type fixtures, and the wiring is handled through wire terminals, making it straightforward to install in LED lighting applications. The driver does not support dimming operation, providing consistent constant voltage output suitable for fixed lighting setups.
MEAN WELL LPF-90-36 complies with global safety and electromagnetic compatibility standards such as UL, EN, and TÜV, guaranteeing reliability and safety in professional LED lighting systems. Its encapsulated structure and IP67 rating make it ideal for outdoor and harsh environment applications in industrial, manufacturing, commercial, and water treatment settings.
The driver features a fully encapsulated plastic case suited for dry, damp, and wet locations. Universal AC input voltage range supports 90V to 305V AC operation. High efficiency up to 91% with built-in active power factor correction (PFC).
Protected against short circuits, overload, over voltage, and over temperature conditions. Compliant with international safety and EMC standards including UL, EN, and TÜV certifications. Mounts securely via screw type and terminates with wire terminals for ease of installation.
No dimming functionality ensures consistent constant voltage output. Designed specifically for industrial and commercial LED lighting use cases. Encapsulated construction offers protection conforming to IP67 ingress rating.
Manufactured in China with a robust design suitable for LED lighting and moving applications.
This LED driver is a trusted solution for LED lighting in diverse industrial and commercial environments. For additional products and variants, browse the LED Drivers category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this LED driver is 36V.
The maximum output power is 90W.
It has a current output rating of 2.5A.
The input voltage range supports operation from 90V to 305V AC.
This driver includes protection against short circuits, overload, over voltage, and over temperature conditions.
The IP rating of this model is IP67, making it suitable for wet locations.
It mounts securely via screw type fixtures.
The driver terminates with wire terminals for ease of installation.
No, this LED driver does not support dimming functionality, ensuring a consistent constant voltage output.
It complies with international safety and EMC standards including UL, EN, and TÜV certifications.
It features a fully encapsulated plastic case, making it suitable for dry, damp, and wet locations.
This LED driver is manufactured in China.
