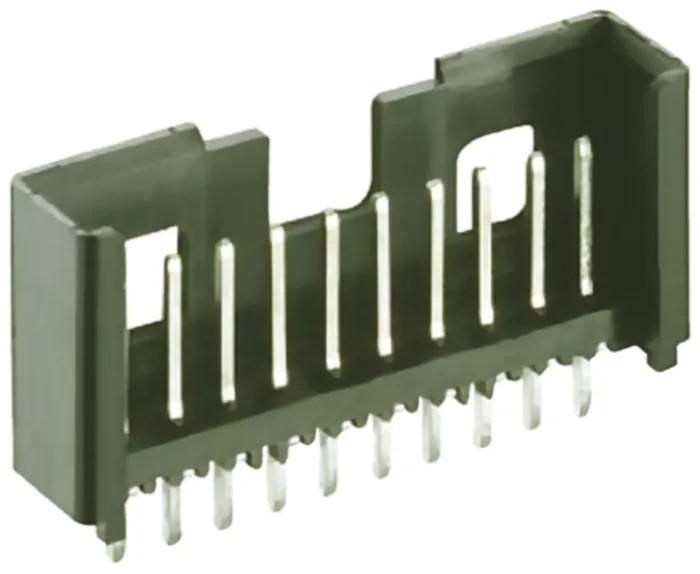

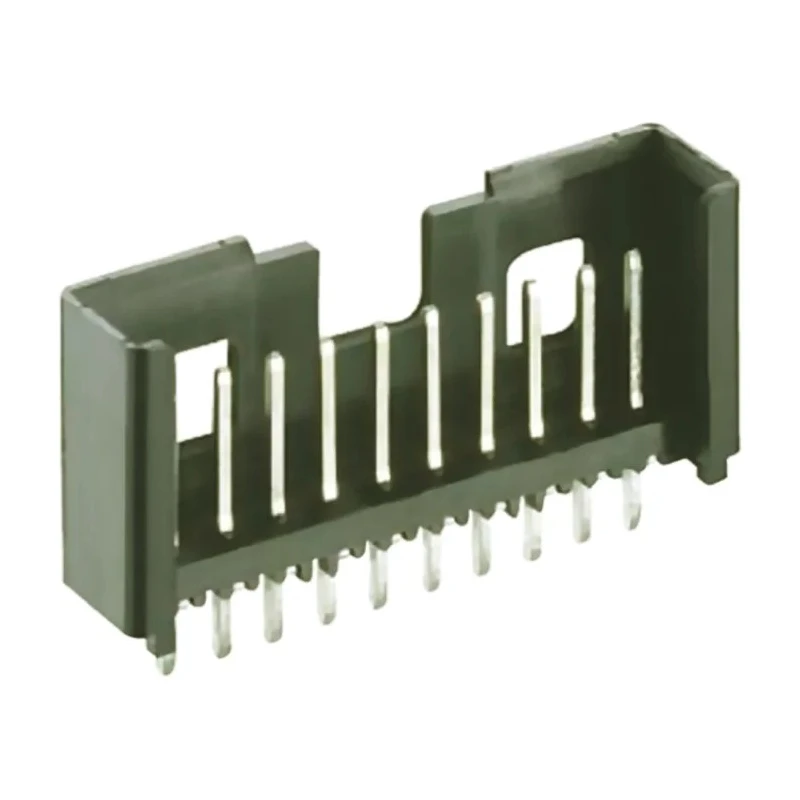

Lumberg Minimodul Series Straight Through Hole PCB Header, 20 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 2,5 MSF/O 20

Free Delivery in India | Lowest Global Shipping Charges

Lumberg Minimodul Series Straight Through Hole PCB Header, 20 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 2,5 MSF/O 20

Name: Lumberg Minimodul Series Straight Through Hole PCB Header, 20 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 2,5 MSF/O 20
Brand: LUMBERG
SKU: 129055
Price: 1.03 USD
Availability: InStock



Category PCB Header Brand LUMBERG Condition New

Specifications

Country of Origin	India
Voltage	160V
Brand	Lumberg
Orientation	Straight
Current	5A
Model	2,5 MSF/O 20
Mount Type	Through Hole
Housing Material	Glass Filled Polyamide
Contact Material	Brass
Series	Minimodul
Termination Type	Solder
Maximum Operating Temperature	120°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Supports current rating up to 5 amperes for reliable signal and low load applications.
Constructed with glass filled polyamide housing for enhanced durability and insulation.
Features brass contacts with tin plating to ensure dependable electrical connectivity.
Designed for a wide temperature range from -40°C to 120°C to operate under diverse environmental conditions.
Complies with DIN EN 60664/IEC 60664, IEC 60335-1, and IEC 60695-2-11 standards ensuring quality and safety.
Utilizes solder termination and male contact gender for secure and easy board integration.
Ideal for use in industrial electronics, power and connectors assemblies, and PCB wiring systems.
Shrouded and straight orientation enhances connector protection and ease of mating.

Product Description

Lumberg 2,5 MSF/O 20 Minimodul Series Straight Through Hole PCB Header is designed with 20 contacts arranged in a single row with a precise 2.5 mm pitch, suited for wire-to-board applications using through-hole mounting technology.

This PCB header supports a current rating of 5 amperes, making it suitable for signal transmission and low load current applications. The housing is made of glass filled polyamide which provides mechanical stability and electrical insulation, essential for industrial and manufacturing environments.

The contacts are made from brass and plated with tin enabling corrosion resistance and reliable conductivity. Its operational temperature ranges from -40°C to 120°C, allowing deployment in a variety of environmental conditions without performance degradation.

The connector system is shrouded to provide protection and minimize misalignment during mating, complemented by a male contact gender and solder termination for efficient assembly on printed circuit boards. Compliance with DIN EN 60664/IEC 60664, IEC 60335-1, and IEC 60695-2-11 standards assures adherence to international safety and performance norms.

This product is well suited for industrial electronics, laboratory equipment, manufacturing, and power distribution applications where durable and precise PCB connections are critical.

Supports current rating up to 5 amperes for reliable signal and low load applications. Constructed with glass filled polyamide housing for enhanced durability and insulation. Features brass contacts with tin plating to ensure dependable electrical connectivity.

Designed for a wide temperature range from -40°C to 120°C to operate under diverse environmental conditions. Complies with DIN EN 60664/IEC 60664, IEC 60335-1, and IEC 60695-2-11 standards ensuring quality and safety. Utilizes solder termination and male contact gender for secure and easy board integration.

Ideal for use in industrial electronics, power and connectors assemblies, and PCB wiring systems. Shrouded and straight orientation enhances connector protection and ease of mating. Browse related PCB Headers and connectors at EnvMart for compatible components and accessories to enhance your electronic assembly solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports a current rating of up to 5 amperes, making it suitable for reliable signal transmission and low load applications.

The contacts in this unit are arranged with a pitch size of 2.5 mm, which is suitable for wire-to-board applications using through-hole mounting.

The housing is constructed from glass filled polyamide for durability and insulation, while the contacts are made of brass with tin plating for reliable electrical connectivity.

It is designed to operate within a temperature range from -40°C to 120°C, allowing for use in diverse environmental conditions.

This unit utilizes solder termination, which allows for secure and efficient assembly onto printed circuit boards.

This model features 20 contacts arranged in a single row, making it suitable for various applications.

It complies with DIN EN 60664/IEC 60664, IEC 60335-1, and IEC 60695-2-11 standards, ensuring quality and safety in its applications.

This model has a straight orientation, which enhances connector protection and ease of mating during installation.

The contact gender for this unit is male, which is standard for many PCB connections.

It is ideal for use in industrial electronics, power and connector assemblies, and PCB wiring systems.

This PCB header utilizes a wire-to-board connector system, suitable for through-hole mounting.

The country of origin for this model is India.
