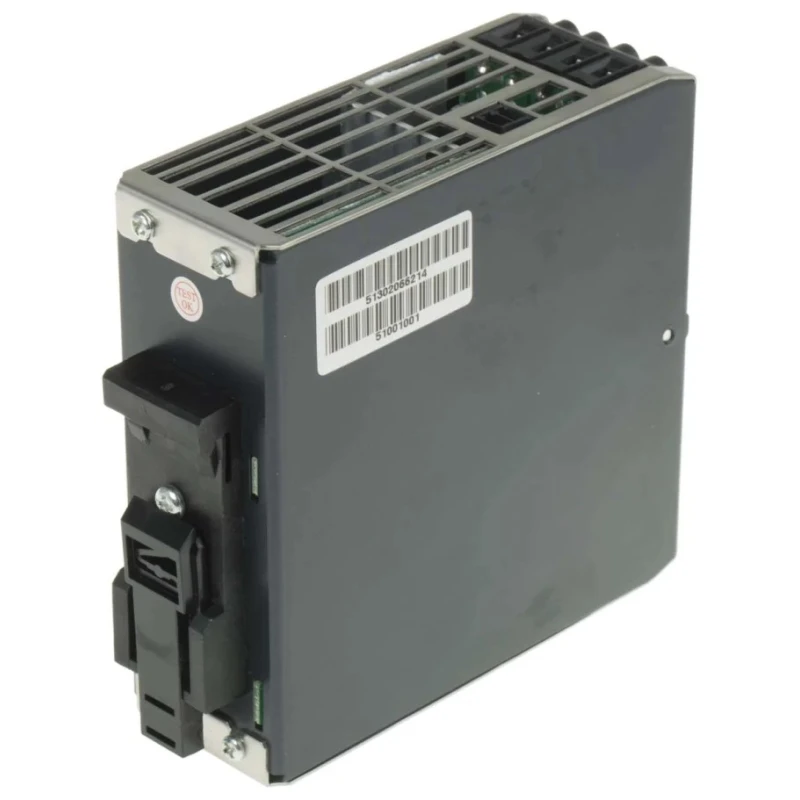

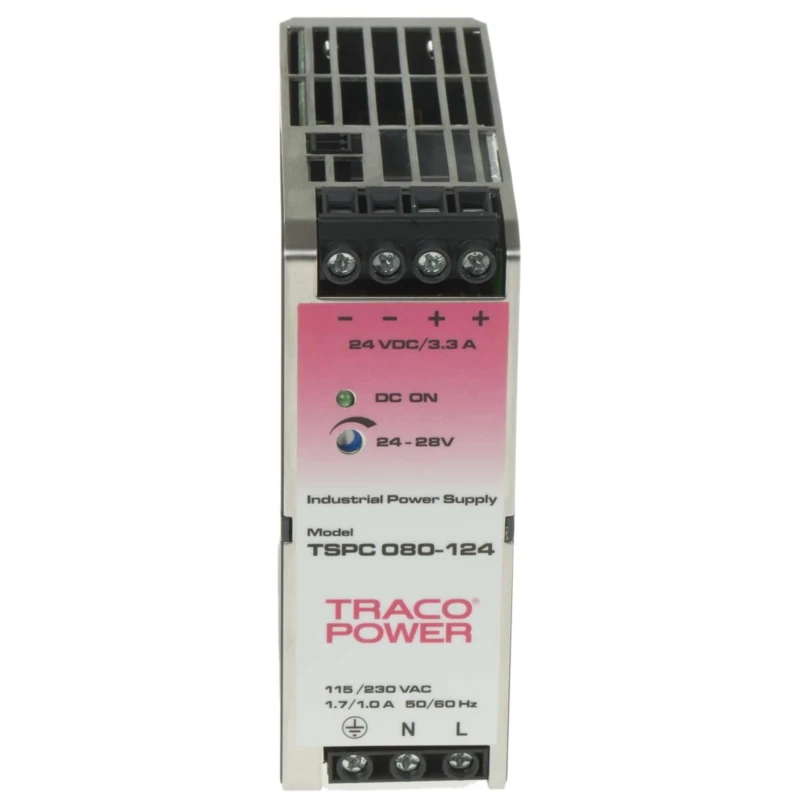

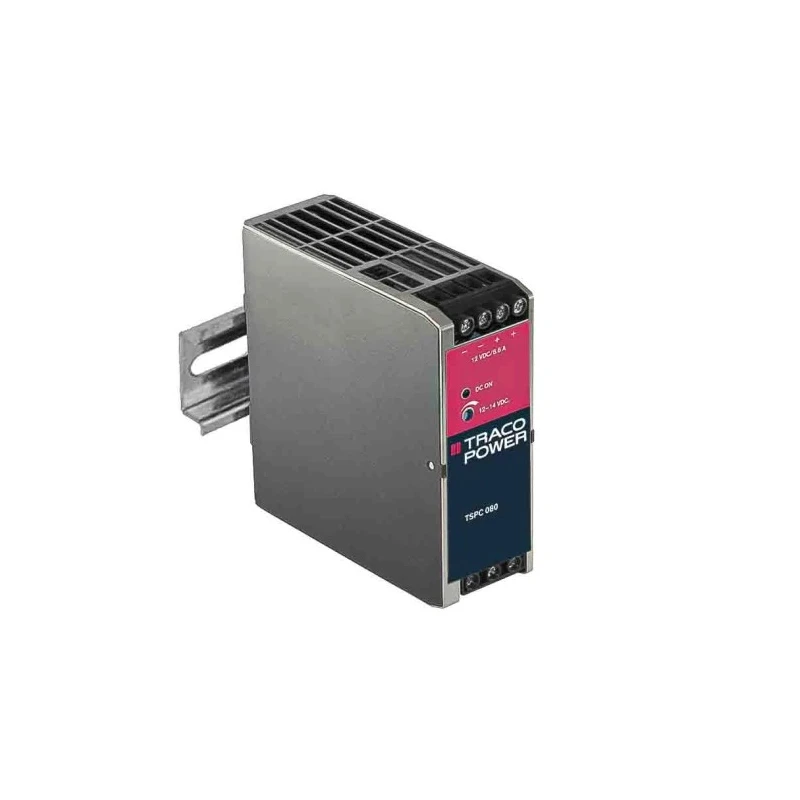

TRACOPOWER Switched Mode DIN Rail Power Supply 132V AC Input 28V DC, 3.3 A Output, 80W TSPC 080-124
Specifications
| Country of Origin | China |
|---|---|
| Brand | TRACOPOWER |
| Power | 80W |
| Efficiency | 92% |
| Height | 110mm |
| Model | TSPC 080-124 |
| Depth | 110mm |
| IP Rating | IP20 |
| Width | 40mm |
| Series | TSPC |
| Output Current | 3.3A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 132V ac |
| Electrical Phase | 1 |
| Standards/Approvals | EN 60950-1 |
| Maximum Output Voltage | 28V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- This power supply features a compact design measuring 110mm (L) x 40mm (W) x 110mm (D).
- It supports a wide AC input voltage range of 85 to 132V with a selection switch for input adjustment.
- The unit has an efficiency rating of 92%, which ensures low energy waste as heat.
- With an operating temperature range from -25°C up to 70°C, it suits demanding industrial environments.
- An IP20 rating provides protection against touch and objects larger than 12mm, enhancing safety.
- The stainless steel cover offers impact resistance for protection against mechanical knocks.
- Designed for single output AC to DC conversion with a current output of 3.3 A.
- Ideal for power distribution, factory automation networks, and process control applications.
Product Description
TRACOPOWER TSPC 080-124 is a switched mode DIN rail power supply designed for industrial electronic applications requiring reliable 28V DC power output. It accepts an AC input voltage range from 85 to 132V, selectable via a switch, allowing adaptation to varying input conditions commonly found in factory and automation settings.
The power supply delivers a regulated output current of 3.3 A at 80W power capacity with a high efficiency of 92%, minimizing energy losses and excess heat generation. Its compact dimensions of 110mm length, 40mm width, and 110mm depth help conserve valuable DIN rail space in control cabinets.
Engineered to operate continuously between -25°C and +70°C, this unit is suitable for use in harsh industrial environments including power distribution systems, factory automation networks, and process control installations. The device carries an IP20 rating, providing protection against finger contact and foreign bodies larger than 12mm, and features an impact-resistant stainless steel cover for enhanced durability.
Compact DIN rail mount form factor saves installation space. Wide input voltage selection: 85 to 132V AC. Output voltage: 28V DC with 3.3 A constant current. High efficiency of 92% reduces operational costs and heat management needs.
Wide operating temperature range from -25°C to +70°C for versatile use. Rated IP20 for finger protection and solid object ingress prevention. Robust stainless steel housing for impact resistance and longevity. Compliance with EN 60950-1 safety standards.
Suitable for demanding industrial power supply applications. Operating humidity up to 95% non-condensing for reliability in moist environments.
This power supply is an ideal choice for industrial and commercial use cases that demand dependable DC power conversion from AC mains, including manufacturing plants, automation systems, and power distribution boards. TRACOPOWER products are globally recognized for quality and compliance, adding assurance to your electrical infrastructure.
Explore more products in the DIN Rail Power Supplies category on EnvMart for comprehensive industrial power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 85V AC to 132V AC, which can be adjusted using a selection switch.
This unit provides a regulated output of 3.3 A at 28V DC.
It has an efficiency rating of 92%, which helps minimize energy waste as heat.
The dimensions of this power supply are 110mm in length, 40mm in width, and 110mm in depth.
This unit has an IP20 rating, providing protection against finger contact and solid objects larger than 12mm.
It is designed for industrial applications such as power distribution, factory automation networks, and process control installations.
The power supply complies with EN 60950-1 safety standards.
It features a robust stainless steel cover that provides impact resistance.
The maximum power capacity of this unit is 80W.
It can operate in humidity levels up to 95% non-condensing, ensuring reliability in moist environments.
