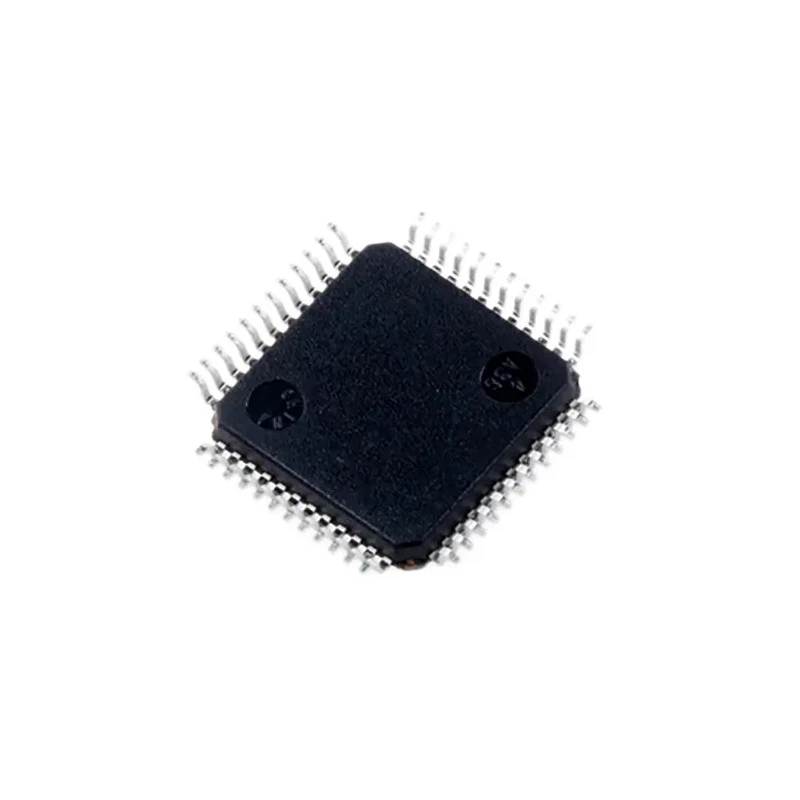

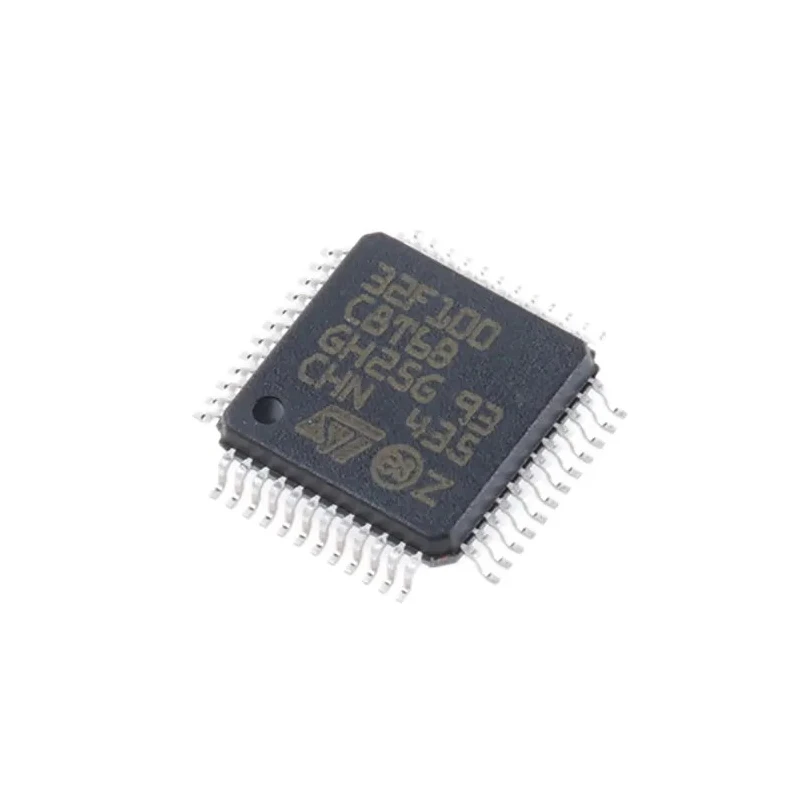

STMicroelectronics 32 bit ARM Cortex M3 Microcontroller STM32F100C8T6B 24 MHz 64kB FLASH 48-Pin LQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 7.2mm |
| Model | STM32F100C8T6B |
| Width | 7.2mm |
| Mount Type | Surface |
| Series | STM32F1 |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Standards/Approvals | FBI |
| Pin Count | 48 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 363mW |
| Minimum Supply Voltage | 2V |
| Device Core | ARM Cortex M3 |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 24MHz |
| Number of Timers | 11 |
| Instruction Set Architecture | RISC |
| ADCs | 10 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 2 x 12 Bit |
| Low voltage | 2 V to 3.6 V |
Key Features
- Features a 32-bit ARM Cortex M3 core architecture for efficient processing.
- Operates at a maximum clock frequency of 24 MHz for real-time performance.
- Includes 64kB Flash program memory and 8kB RAM for application storage.
- Equipped with 10 ADC channels of 12-bit resolution and 2 DACs of 12-bit.
- Supports a wide operating voltage range from 2V to 3.6V for flexible deployment.
- Surface mount device with a 48-pin LQFP package measuring 7.2mm by 7.2mm footprint.
- Designed to operate reliably in temperature ranges from -40°C to 85°C industrial standard.
- Incorporates 11 timers and RISC instruction set for versatile control functions.
Product Description
STMicroelectronics STM32F100C8T6B is a 32-bit ARM Cortex M3 microcontroller designed for embedded system applications requiring reliable performance at 24 MHz clock speed with 64kB FLASH memory capacity.
It belongs to the STM32F1 Series Value Line and comes in a compact 48-pin LQFP surface mount package with dimensions of 7.2mm length and width, and 1.45mm height.
This microcontroller features an ARM Cortex M3 core with a 32-bit data bus width, providing excellent real-time behavior and outstanding power efficiency for embedded control applications.
It is equipped with 10 channels of 12-bit ADCs and 2 x 12-bit DACs enabling high resolution analog interfacing, alongside 11 timers and RISC instruction architecture to support complex time-sensitive tasks.
The STM32F100C8T6B operates safely across an industrial temperature range of -40°C to 85°C and supports a supply voltage range of 2 to 3.6 volts, making it suitable for a wide range of low power embedded applications.
Applications include automotive control units, medical devices, handheld tools, PC peripherals, GPS systems, and industrial automation. Features a 32-bit ARM Cortex M3 core processor. 64kB FLASH and 8kB RAM for application code and data storage.
Maximum frequency of 24 MHz for enhanced processing speed. 10 x 12-bit ADC inputs and 2 x 12-bit DAC outputs for analog interaction. Wide voltage operating range from 2 V to 3.6 V. Surface mount 48-pin LQFP package with compact dimension.
Industrial grade temperature range from -40°C to 85°C. Low power consumption with 363mW max power dissipation. Complies with FBI standards for quality assurance. Excellent choice for industrial, medical, and embedded system applications.
Explore more advanced microcontrollers and Microcontroller development tools in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM32F100C8T6B has a maximum clock frequency of 24 MHz, enabling efficient processing for embedded applications.
It features a program memory size of 64kB FLASH, which is suitable for application code storage.
This unit is equipped with 10 ADC channels, each providing 12-bit resolution for high-quality analog input.
The microcontroller supports a wide operating voltage range from 2V to 3.6V, allowing for flexible deployment in various applications.
It operates reliably within an industrial temperature range of -40°C to 85°C, making it suitable for harsh environments.
This model is available in a 48-pin LQFP surface mount package, with dimensions of 7.2mm by 7.2mm.
It includes 8kB of RAM for application data storage, complementing its FLASH memory.
The STM32F100C8T6B supports 2 DAC outputs, each with 12-bit resolution, for high-quality analog output.
This unit incorporates 11 timers, providing versatile control functions for various applications.
The maximum power dissipation for the STM32F100C8T6B is 363mW, ensuring efficient power management during operation.
It utilizes a RISC instruction set architecture, which enhances its performance for embedded control applications.
This microcontroller is suitable for applications including automotive control units, medical devices, handheld tools, PC peripherals, GPS systems, and industrial automation.
