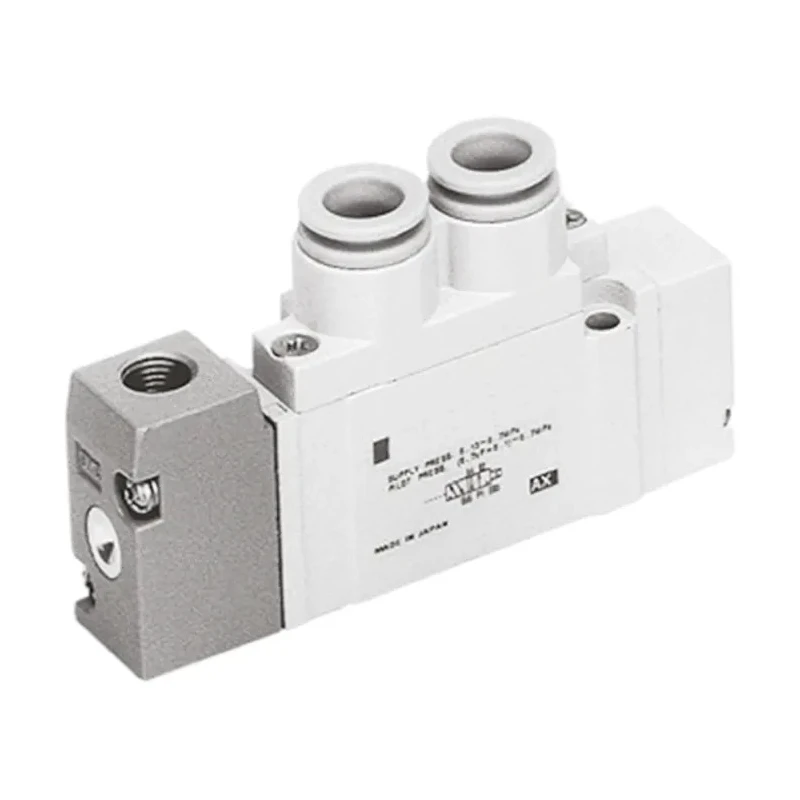

SMC Pneumatic Solenoid Valve Pilot G 1/4 Port, 5-Port, Aluminium Body, Nitrile Rubber Seals, Series SYA7000

The SMC SYA7120-02F pneumatic solenoid valve from the SYA7000 series is engineered for precise pilot actuation and superior pneumatic control in industrial, manufacturing, and fluid power applications. Featuring a G 1/4 female port size and standard G threaded connections, this valve guarantees compatibility with a wide range of pneumatic systems.

Its aluminium body construction affords high impact resistance and robust durability, while nitrile rubber (NBR) seals ensure leak-tight operation and reliability under varying environmental conditions. Designed to function efficiently within an operating temperature range from -10°C to 60°C, the valve accommodates typical industrial ambient conditions.

This 5-port, two-position solenoid valve operates on a normally closed (NC) principle, providing secure fluid control with a maximum operating pressure of 0.7 MPa and a pilot pressure range between 0.1 MPa to 0.7 MPa. Maximum flow rate capability is 853 NL/min, ensuring effective pneumatic performance for rapid actuation demands.

The compact form factor with dimensions of 97 mm in length, 80 mm in height, and 40 mm in width allows for space-efficient mounting. The valve's base mount type supports unrestricted orientation, and it includes a non-locking manual override push type for easy manual operation and system testing.

This pneumatic solenoid valve series is ideal for industrial automation, fluid power control, manufacturing equipment, and HVAC pneumatic systems. It does not include a foot bracket, offering flexibility for customized installation.

The valve features a G 1/4 female port size with standard G connection threads. Constructed with an aluminium body and nitrile rubber (NBR) seals for durability. Operates within a temperature range of -10°C to 60°C. Designed with two valve positions and a normally closed (NC) function for safety.

Supports a maximum operating pressure of 0.7 MPa and a maximum pilot pressure of 0.7 MPa. Maximum flow rate reaches up to 853 NL/min ensuring efficient pneumatic flow. Compact design dimensions are 97 mm length, 80 mm height, and 40 mm width.

Mounting is base type with unrestricted orientation and includes a non-locking manual override push type.

Trust SMC quality and the SYA7000 series reliability for your pneumatic valve application needs. Explore more Pneumatic Solenoid Valve options and technical support in the Industrial Valves category on EnvMart.
