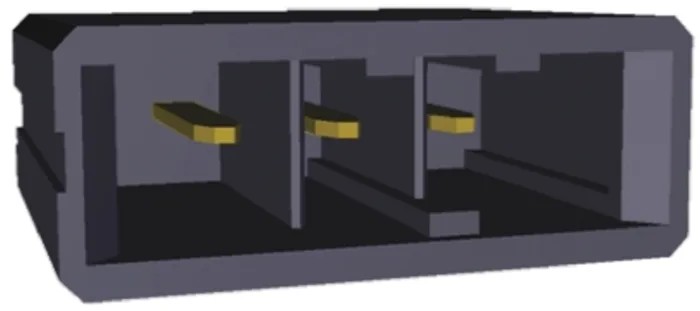

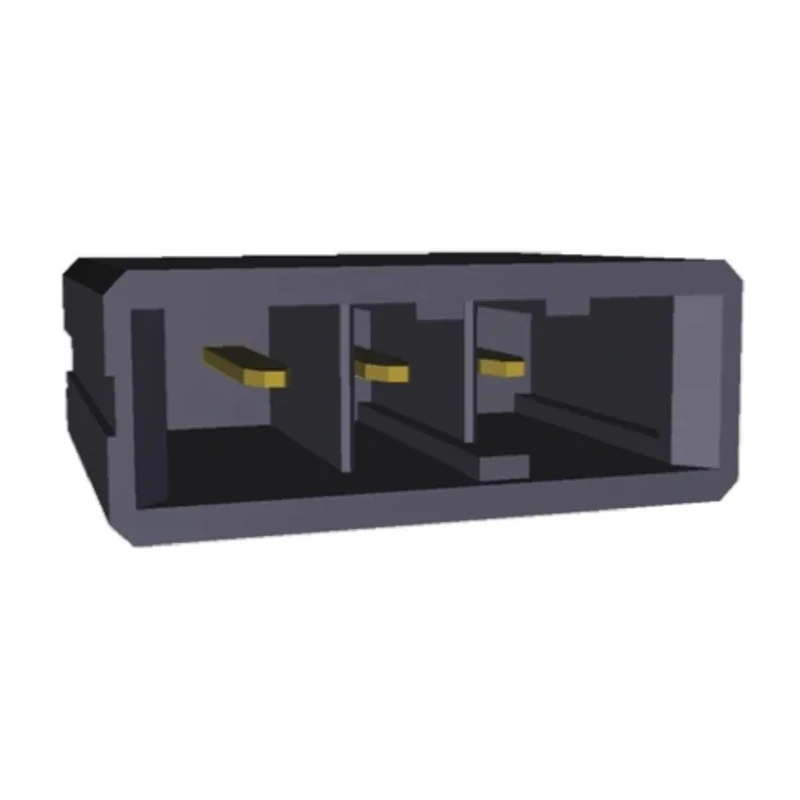

TE Connectivity Dynamic 3000 Series Straight Through Hole PCB Header, 3 Contacts, 3.81 mm Pitch, 1 Row, Shrouded 2-178313-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | Dynamic 3000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- This PCB header features a straight orientation and a single row configuration.
- The housing is made of durable glass-filled polyester for enhanced stability.
- Designed with a shrouded connector system for safety and durability.
- Rated for 12 amp current carrying capacity and supports 250 volts operating voltage.
- Through hole mounting type ensures secure solder connection on PCB.
- Made with copper alloy contacts plated with tin for corrosion resistance.
- Operates reliably within -55°C to 105°C temperature range.
- Contact gender is male with solder termination type.
Product Description
TE Connectivity 2-178313-5 Dynamic 3000 Series Straight Through Hole PCB Header provides a compact wire-to-board connection solution featuring 3 contacts with a 3.81 mm pitch arranged in 1 row. This shrouded header is designed for industrial, electronic, and manufacturing applications requiring a robust, reliable connector at 250 volts and 12 amperes.
The housing is constructed from glass-filled polyester which offers excellent mechanical strength and durability in harsh environments. The male copper alloy contacts are tin plated, ensuring corrosion resistance and stable electrical conductivity. The header is designed for through-hole PCB mounting with solder termination for strong mechanical and electrical connection.
Operating temperatures range from -55°C to 105°C, allowing use in extreme industrial and laboratory environments. The Dynamic 3000 Series headers feature a tin-plated retention leg to increase stability on the PCB. The recommended PCB thickness for mounting is between 1.0 to 1.6 mm.
This connector series is ideal for various electronics manufacturing, testing instrumentation, control devices, power connectors, and industrial automation equipment where space-saving, durability, and electrical reliability are critical.
This PCB header features a straight orientation and a single row configuration. The housing is made of durable glass-filled polyester for enhanced stability. Designed with a shrouded connector system for safety and durability.
Rated for 12 amp current carrying capacity and supports 250 volts operating voltage. Through hole mounting type ensures secure solder connection on PCB. Made with copper alloy contacts plated with tin for corrosion resistance.
Operates reliably within -55°C to 105°C temperature range. Contact gender is male with solder termination type.
Choose TE Connectivity Dynamic 3000 Series for high-quality PCB Headers that meet demanding industrial, electronic assembly, and manufacturing standards. This product enhances production efficiency and facilitates reliable electronic connectivity in a wide range of applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PCB header is rated for a current carrying capacity of 12 amperes.
It supports an operating voltage of 250 volts.
The contacts are arranged with a pitch of 3.81 mm.
This model operates reliably within a temperature range of -55°C to 105°C.
It utilizes a through-hole mounting type for secure solder connections on the PCB.
The housing is made of glass-filled polyester, and the contacts are made from copper alloy with tin plating for corrosion resistance.
This header features 3 contacts arranged in a single row configuration.
The contact gender is male, designed for solder termination.
It is suitable for various electronics manufacturing, testing instrumentation, control devices, and industrial automation equipment.
The country of origin for this PCB header is India.
Yes, it is designed with a shrouded connector system for enhanced safety and durability.
The recommended PCB thickness for mounting is between 1.0 to 1.6 mm.
