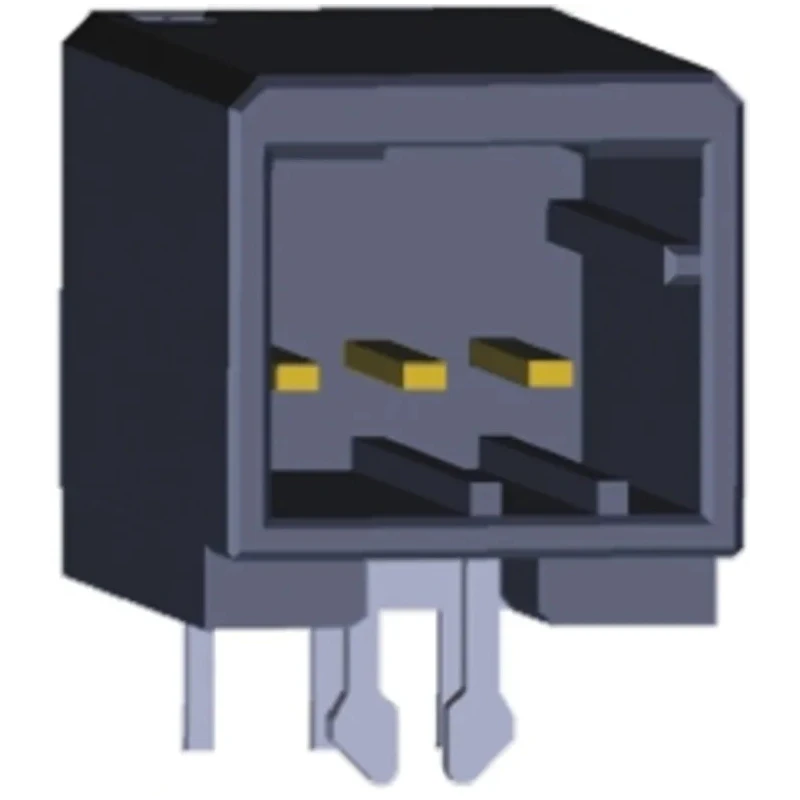

TE Connectivity Dynamic 2000 Series Right Angle Through Hole PCB Header, 3 Contacts, 2.5 mm Pitch, 5A, 250V 1376135-1
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | Dynamic 2000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with glass filled polyester housing for durability.
- Features gold-plated copper alloy contacts for reliable conductivity.
- Designed with right angle orientation and shrouded for secure mating.
- Supports a single row of 3 contacts with a 2.5 mm pitch.
- Rated to operate between -65°C and 105°C maximum temperatures.
- Mount type is through hole with solder termination for PCB mounting.
- Widely used in electronic signal applications requiring stable wire-to-board connections.
- Manufactured in China ensuring quality compliance.
Product Description
TE Connectivity 1376135-1 Dynamic 2000 Series is a shrouded right angle through hole PCB header designed for reliable wire-to-board connections in electronic circuits. It features a single row of 3 male contacts with a precise 2.5 mm pitch, suitable for signal applications requiring up to 5 amperes of current and 250 volts of voltage. The contact material is copper alloy with gold plating to ensure excellent conductivity and corrosion resistance.
The housing is made from glass filled polyester, providing durability and electrical insulation. The connector is designed with a right angle orientation and includes a shroud to prevent mis-mating and improve mechanical stability. It uses solder termination with tin plated PCB tails. The recommended PCB thickness for optimal soldering is 1.6 mm, supporting through hole mounting for robust assembly.
Operating temperature ranges from -65°C to a maximum of 105°C, making it suitable for varied environmental conditions commonly found in industrial and commercial electronic applications.
This PCB header is ideal for use in industrial electronics, telecommunications, automation equipment, and similar electronic devices demanding precise and stable signal connectivity with compact footprints. The Dynamic 2000 Series connectors by TE Connectivity ensure secure electrical contact and durability essential for long-term reliable operation.
Constructed with durable glass filled polyester housing. Gold-plated copper alloy contacts for superior conductivity. Right angle orientation with shrouded design for secure mating. Single row, 3 contacts with 2.5 mm pitch.
Suitable for current up to 5A and voltage up to 250V. Operation temperature from -65°C to 105°C. Through hole mounting with solder termination. Manufactured in China. Explore more high-quality PCB Headers and connectors in the Electronics Components category at EnvMart to empower your electronic design and manufacturing processes.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum voltage of 250V.
It supports a current capacity of up to 5A.
The contacts have a pitch size of 2.5 mm.
The housing is made from glass filled polyester, and the contacts are copper alloy with gold plating.
It operates within a temperature range of -65°C to 105°C.
It is designed for through hole mounting with solder termination.
This model features a single row of 3 male contacts.
It has a right angle orientation for easy installation.
This header is shrouded, which helps prevent mis-mating.
It is widely used in electronic signal applications requiring stable wire-to-board connections, such as in industrial electronics and telecommunications.
It is manufactured in China, ensuring compliance with quality standards.
It uses a wire-to-board connector system, ideal for secure electrical connections.
