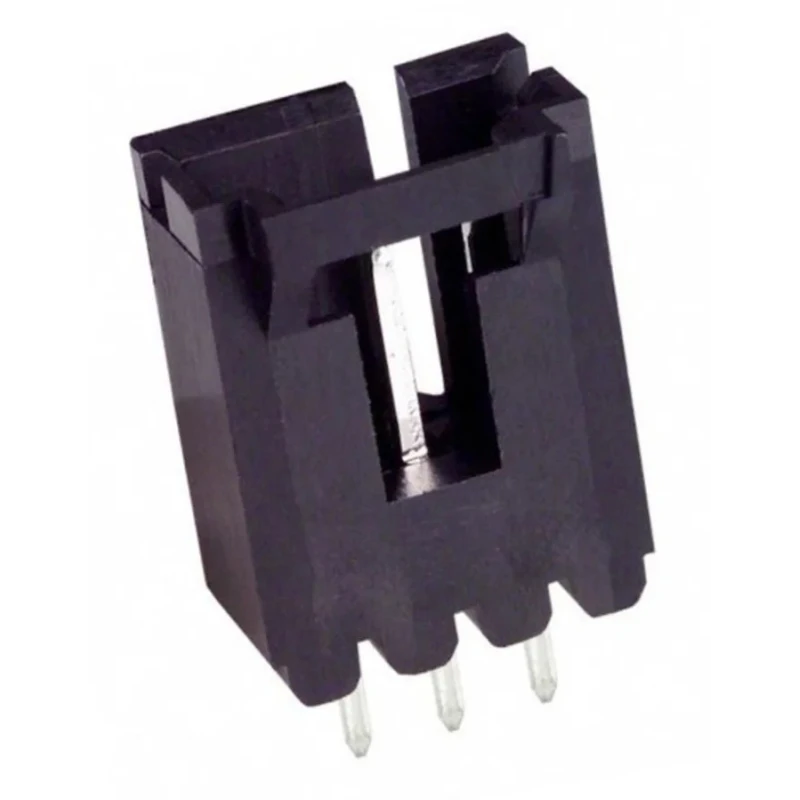

TE Connectivity AMPMODU MTE Series Straight Through Hole PCB Header, 3 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 5-103639-2

TE Connectivity 5-103639-2 AMPMODU MTE Series Straight Through Hole PCB Header is a high-quality connector designed with 3 contacts arranged in a single row with a 2.54 mm pitch and shrouded straight orientation. It is engineered for reliable wire-to-board interconnection in a variety of applications requiring secure and efficient mass wire termination.

This PCB header features a thermoplastic housing with brass contacts that are plated with tin, ensuring strong conductivity and protection against corrosion. The connector system supports a current rating of 3 A and a maximum voltage of 40 V, suitable for low power electronic equipment. The product is designed for through hole mounting with solder termination to provide robust mechanical and electrical connection to printed circuit boards.

The AMPMODU MTE series includes polarization features to avoid incorrect mating, and an integral latching system that secures the connection between the header and the mating IDC receptacle. The connectors are end-to-end stackable, allowing customized configuration lengths as needed.

Operating reliably within a temperature range from -55°C to 105°C, this product is ideal for use in computers, telecommunications, copiers, commercial printers, appliances, instrumentation and test equipment, medical equipment, and automotive controls.

Enables cost-saving mass termination of wires when paired with IDC connectors. End-to-end stackable design for flexible connector configurations. Includes polarization features to prevent mis-mating of connectors. Integral latching mechanism provides secure mating connection.

Constructed with thermoplastic housing and brass contacts plated with tin. Rated for 3 A current and 40 V voltage operation. Suitable for through hole mounting on PCBs with solder termination type. Operates reliably from -55°C to 105°C temperature range.

Ideal for use in computers, telecommunications, medical equipment, and automotive control applications.

This AMPMODU MTE PCB header enhances production efficiency and ensures dependable electrical performance across diverse industrial sectors. For detailed technical documentation, 3D models, and compliance certification, users can access resources from TE Connectivity.
