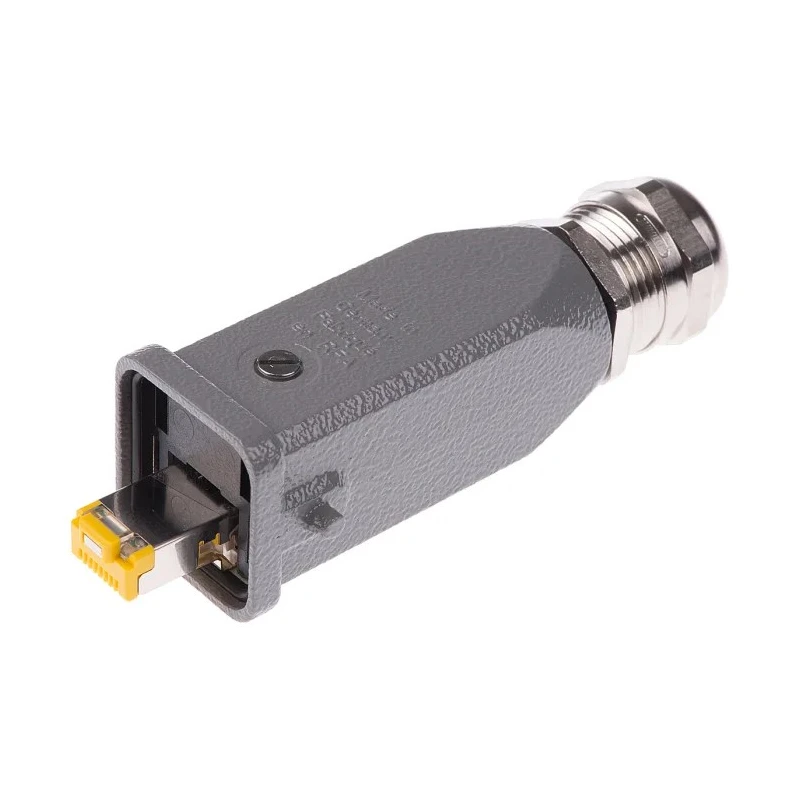

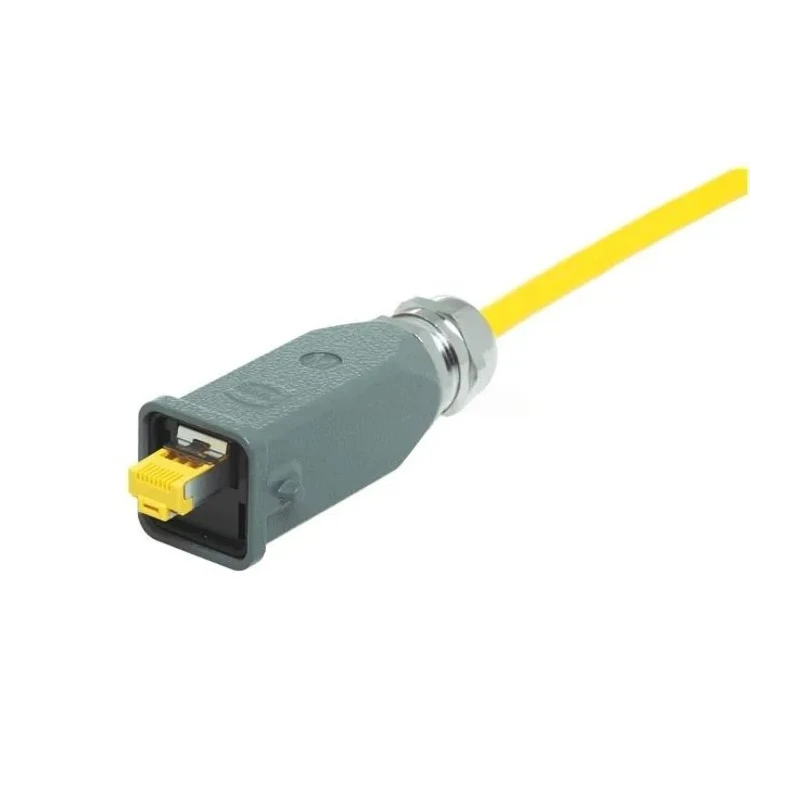

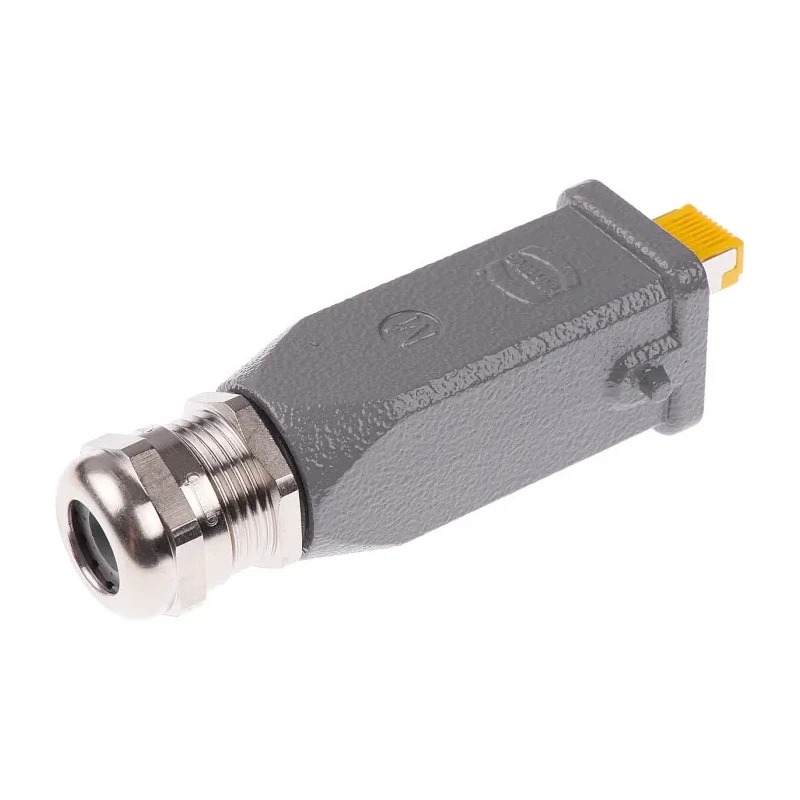

HARTING Han 3A RJ45 Series RJ45 Connector Male Cable Cat6 Shielded Straight 1 Port 8 Way 09451151560
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Length | 28.3mm |
| IP Rating | IP65, IP67 |
| Connector Type | Plug |
| Number Of Ways | 8 |
| Width | 35.3mm |
| Mount Type | Cable |
| Series | HAN 3A RJ45 |
| Number Of Ports | 1 |
| Termination Type | IDC |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | Ethernet networks IP65 and IP67 protection enables outdoor and wash‑down use Gold‑over‑nickel contacts reduce corrosion and enhance conductivity Fully shielded 360° contact limits electrom |
| Shield Type | Shielded |
| Standards/Approvals | PROFINET RoHS Compliant, ODVA specification RoHS Compliant, IEC/PAS 61076-3-117 RoHS Compliant, IEC 61076-3-106 RoHS Compliant, EtherNet/IP RoHS Compliant, EIA/TIA-568/B RoHS Compliant, EIA/TIA-568/A RoHS Compliant, AIDA |
| Contact Plating | Gold over Nickel |
| Connector Gender | Male |
| LAN Category | Cat6 |
| Ethernet Connector Type | RJ45 |
Key Features
- Supports Cat6 LAN category for high-speed data transmission.
- Shielded plug with gold-over-nickel contacts resists corrosion and improves conductivity.
- Rated IP65 and IP67 for protection against dust and water ingress.
- Designed for cable mounting with 1 port and 8-way termination.
- Operates reliably between -40°C to 70°C temperature range.
- Meets multiple industry standards including PROFINET and EtherNet/IP RoHS compliant.
- Constructed with zinc die-cast metal hood for robust mechanical protection.
- Provides 360° shielding to limit electromagnetic interference.
Product Description
HARTING 09451151560 Han 3A RJ45 Series RJ45 Connector Male is a shielded, straight plug designed for cable mounting in industrial Ethernet environments supporting Cat6 LAN performance. This connector offers IP65 and IP67 rated protection, ensuring reliable operation in harsh outdoor and industrial conditions with temperature tolerance from -40°C to 70°C.
The contacts feature a gold-over-nickel plating that minimizes corrosion and enhances conductivity, providing stable high-speed 10G data transmission. The fully shielded 360° contact design effectively limits electromagnetic interference, suitable for rugged industrial networks.
This connector supports tool-assisted IDC 8-way termination and is compatible with wire sizes ranging from 0.1 - 0.32 mm² for stranded and 0.22 - 0.32 mm² for solid conductors, with maximum outer wire diameters up to 1.6 mm. The rugged zinc die-cast metal housing ensures mechanical robustness and electromagnetic screening.
Approved under multiple standards such as PROFINET, EtherNet/IP, and conforms to RoHS compliance, the connector is ideal for industrial automation, machine-to-machine communication, fieldbus interfaces, and PoE devices. It also suits outdoor CCTV and control signaling applications requiring high environmental protection.

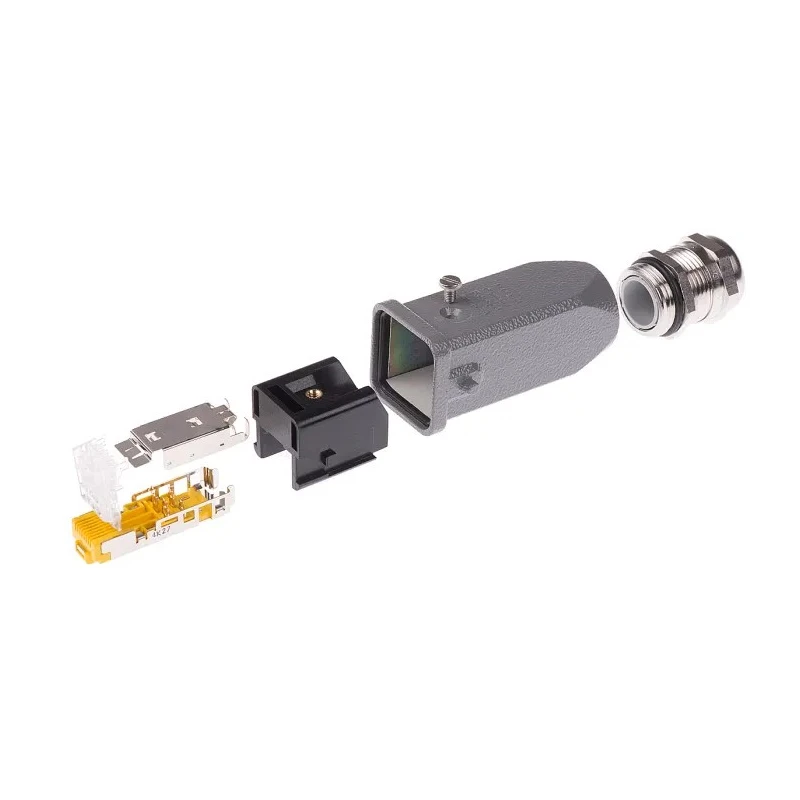

The package contains the connector insert, hood, cable gland, and assembly instructions to facilitate on-site termination and installation. Supports Cat6 LAN category for high-speed communication. Gold-over-nickel contacts reduce corrosion and improve conductivity.
IP65/IP67 rating allows for outdoor and wash-down environments. 360° shielding limits electromagnetic interference for reliable data transmission. Temperature range from -40°C to 70°C for robust industrial use. Compatible with stranded and solid conductors with specified wire sizes.
Constructed with zinc die-cast metal housing for durability. Compliant with industry standards for industrial networking and safety. Suitable for PROFINET, EtherNet/IP, and PoE applications. Package includes all necessary components for assembly and installation.
This product is an ideal choice for industrial, manufacturing, and automation industries requiring secure and stable Ethernet connections under challenging environmental conditions. Explore more industrial networking solutions at EnvMart.
Explore more products in our Ethernet Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This RJ45 connector operates reliably within a temperature range of -40°C to 70°C.
It has an IP65 and IP67 rating, providing protection against dust and water ingress, making it suitable for outdoor and wash-down environments.
The connector utilizes IDC (Insulation Displacement Connector) termination type, which supports tool-assisted termination.
The maximum outer wire diameter compatible with this connector is up to 1.6 mm.
It meets multiple industry standards including PROFINET, EtherNet/IP, and various RoHS compliance specifications.
The connector features a zinc die-cast metal housing that provides robust mechanical protection and 360° shielding against electromagnetic interference.
This model has 1 port with 8-way termination.
The connector type is a plug, and its orientation is straight.
The connector has a length of 28.3 mm and a width of 35.3 mm.
It is compatible with stranded conductors sized from 0.1 to 0.32 mm² and solid conductors sized from 0.22 to 0.32 mm².
The contacts feature gold-over-nickel plating, which helps minimize corrosion and enhance conductivity.
This connector is ideal for industrial automation, machine-to-machine communication, fieldbus interfaces, and PoE devices, as well as outdoor CCTV applications.
