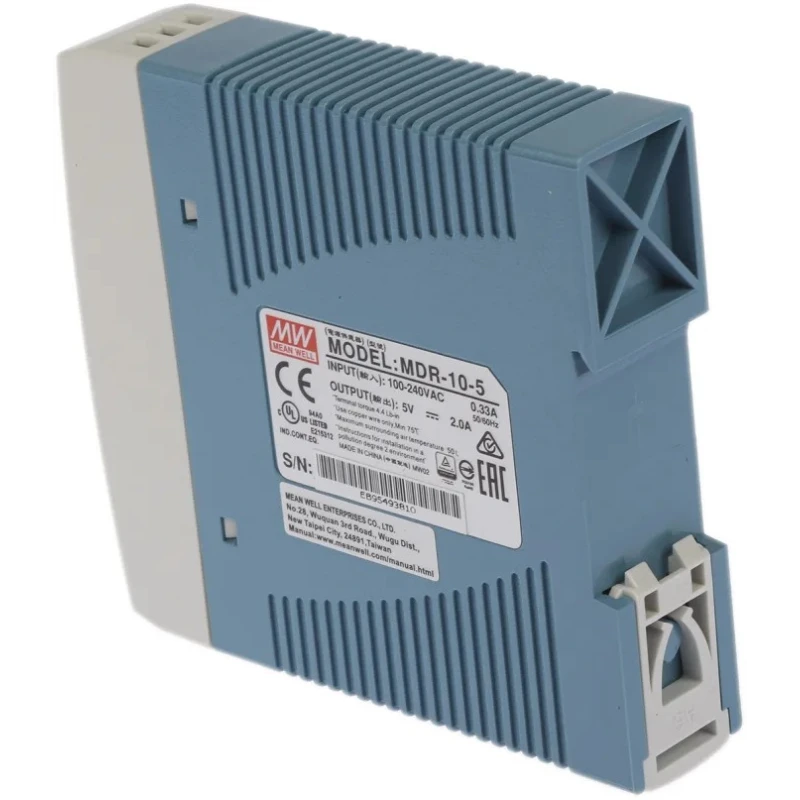

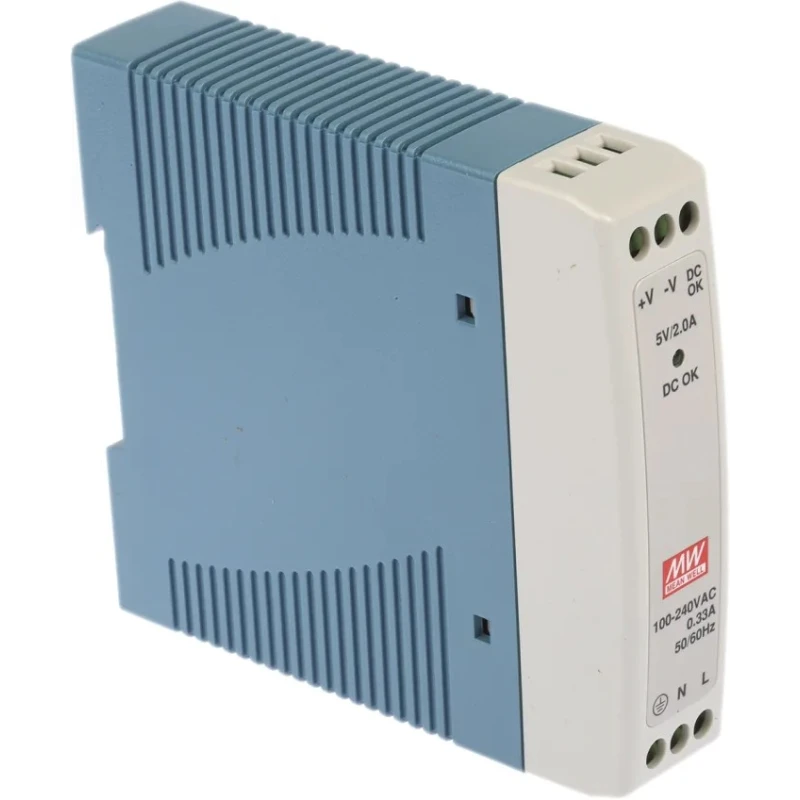

MEAN WELL MDR Series Switched Mode DIN Rail Power Supply 264V AC Input 5V DC, 2 A Output, 10 W MDR-10-5
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 10W |
| Height | 100mm |
| Model | MDR-10-5 |
| Depth | 90mm |
| Width | 22.5mm |
| Series | MDR |
| Output Current | 2A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Standards/Approvals | UL, TUV EN 609501, RoHS |
| Maximum Output Voltage | 5V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Universal AC input with full voltage range ensures wide compatibility.
- Equipped with short circuit, overload, and over voltage protections for safe operation.
- Can be installed on DIN Rail TS-35/7.5 or 15 for versatile mounting.
- Cooled by free air convection for maintenance-free performance.
- Features DC OK relay contact and LED indicator for power status monitoring.
- Low no-load power consumption improves energy efficiency.
- Operates reliably in temperatures from -20°C to 70°C.
- Compact dimensions of 100mm (H) x 90mm (D) x 22.5mm (W) optimize space usage.
Product Description
MEAN WELL MDR-10-5 is a switched mode DIN rail power supply designed for industrial and electronic applications requiring a reliable 5V DC output with 2A current and 10 W power rating. It supports universal AC input voltages from 85V to 264V, making it adaptable for global use in various electrical phases.
This model belongs to the MDR series and features comprehensive protection circuits including short circuit, overload, and over voltage protection, safeguarding connected equipment. Its design enables installation on TS-35/7.5 or 15 DIN rails, saving panel space and allowing easy integration in control cabinets.
Heat dissipation is managed through free air convection, eliminating the need for fans and reducing maintenance. User convenience is enhanced by a DC OK relay and LED indicators that provide clear power status feedback. Its no-load power consumption is minimal, providing energy savings during idle conditions.
The MDR-10-5 withstands operating temperatures from -20°C to 70°C, suitable for harsh environments. Its compact housing dimensions (100mm height, 90mm depth, 22.5mm width) allow for installation in dense assemblies.
Certified to meet UL, TUV EN 609501, and RoHS standards, this power supply fits industrial, laboratory, manufacturing, and control panel applications requiring stable 5V power delivery. Country of origin is China.
Universal AC input with full range compatibility. Multiple protection features for safety and reliability. DIN rail mountable on standard TS-35 rails. Cooling by free air convection ensures silent operation. Status indication via DC OK relay and LED.
Low no-load power consumption saves energy. Wide operating temperature range. Compact and space-saving mechanical design. Complies with international safety and environmental standards. Manufactured in China with quality assurance.
Explore the full range of DIN Rail Power Supplies at EnvMart for reliable power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output current is 2A, providing a stable 5V DC output.
The dimensions are 100mm in height, 90mm in depth, and 22.5mm in width.
It can operate reliably in temperatures up to 70°C.
It includes short circuit, overload, and over voltage protections to safeguard connected equipment.
Heat dissipation is managed through free air convection, eliminating the need for fans.
It is certified to meet UL, TUV EN 609501, and RoHS standards.
Yes, it can be installed on standard TS-35/7.5 or 15 DIN rails.
The MDR-10-5 features low no-load power consumption, improving energy efficiency during idle conditions.
It is suitable for industrial, laboratory, manufacturing, and control panel applications requiring stable 5V power delivery.
The output power rating is 10W, providing reliable performance for various applications.
