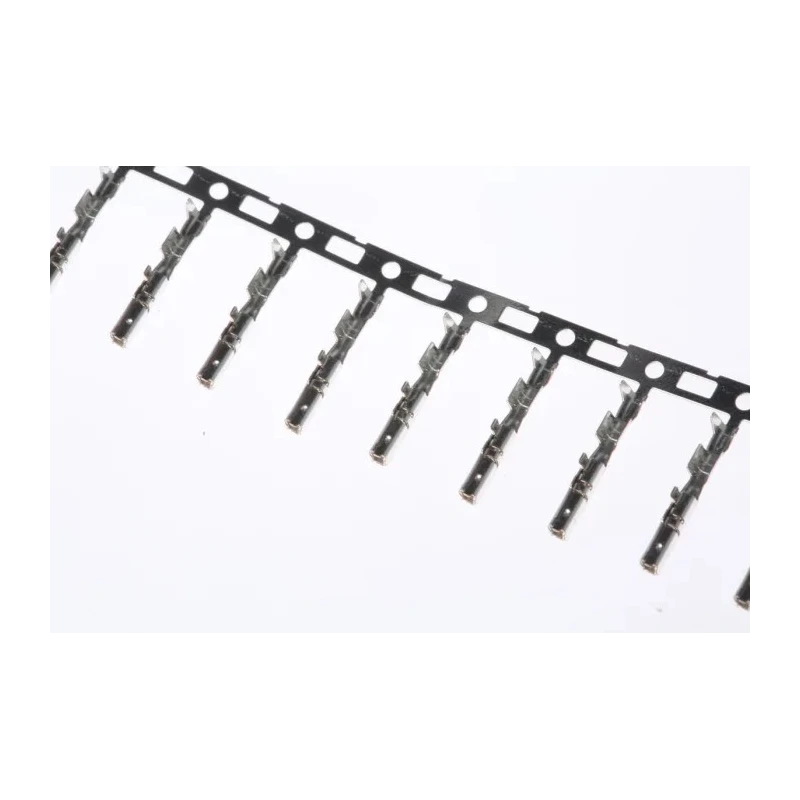

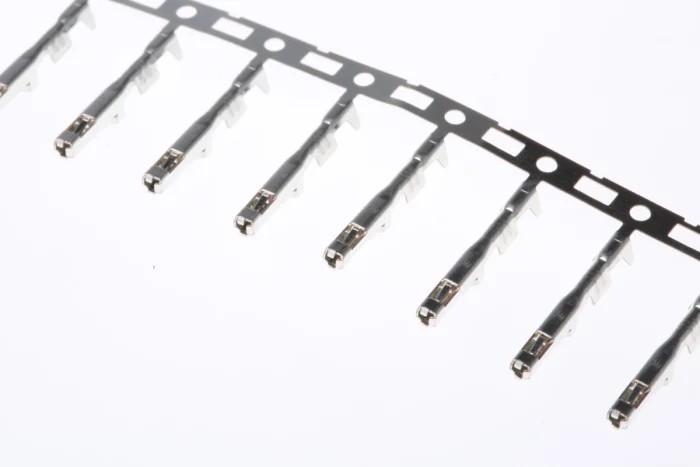

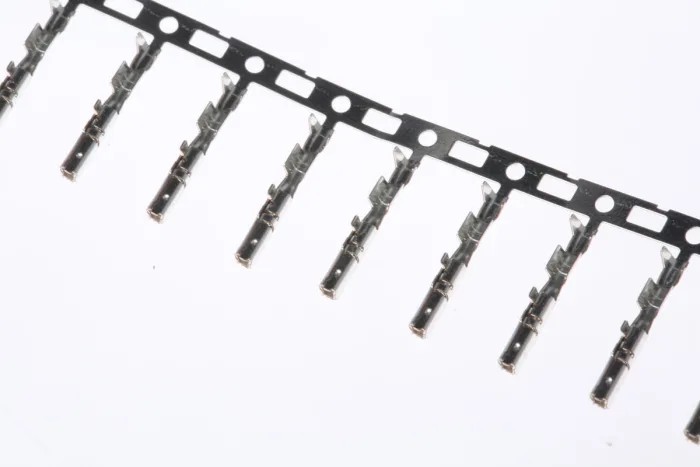

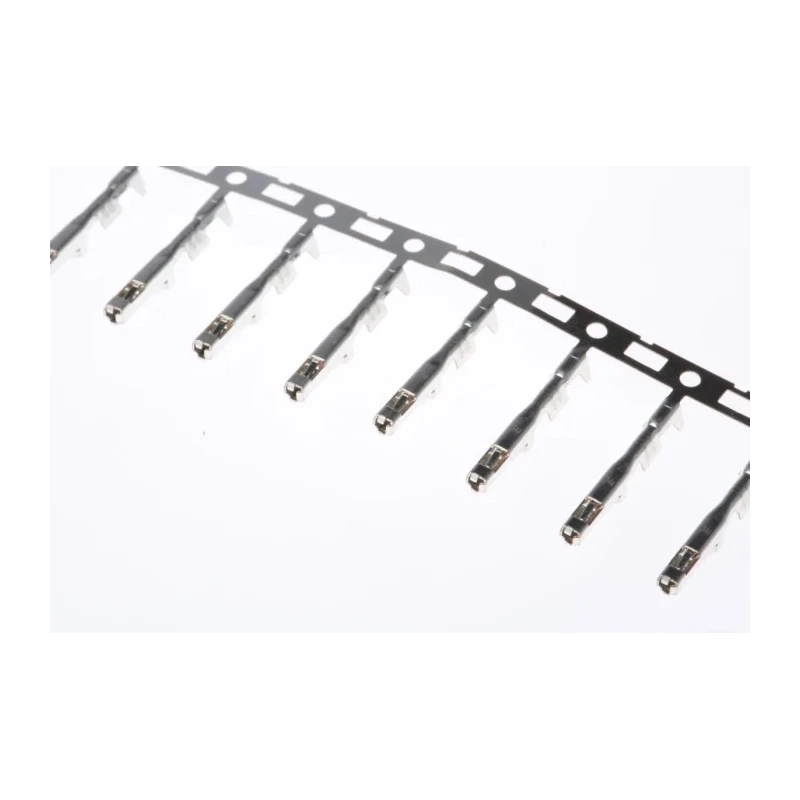

TE Connectivity MULTILOCK 025 Series Female Crimp Terminal, 21 AWG Min to 20 AWG Max, Copper Alloy Tin Plated 1674311-1
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 - 105 °C |
| Gender | Female |
| Contact Material | Copper Alloy |
| Current Rating | 15A |
| Series | MULTILOCK 025 |
| Termination Type | Crimp |
| For Use With | MULTILOCK 025 Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 21AWG |
| Maximum Wire Size AWG | 20AWG |
| Low level resistance | 10 mΩ max (initial) |
| Overall resistance | 20 mΩ max (final) |
Key Features
- Compatible with MULTILOCK 025 Connector Housing for secure fitting.
- Crimp termination type ensures solid mechanical and electrical connection.
- Current rating up to 15A suitable for automotive and industrial applications.
- Operates reliably at temperatures from -30 °C to 105 °C.
- Contact plating with tin improves corrosion resistance and conductivity.
- Minimum wire size 0.3 mm² and maximum wire size 0.5 mm² supported.
- Low initial resistance with maximum 10 mΩ and final resistance 20 mΩ.
- Manufactured from high-quality copper alloy for durability and strength.
Product Description
TE Connectivity 1674311-1 MULTILOCK 025 Series Female Crimp Terminal is engineered for precision wire-to-wire connections, optimized for use with MULTILOCK 025 connector housings. It accepts wire gauges from 21 AWG (0.3mm²) to 20 AWG (0.5mm²) and features a crimp termination design that provides both mechanical stability and excellent electrical conductivity.
Constructed from a copper alloy base material with tin plating, this crimp terminal offers enhanced corrosion resistance and reliable signal transfer. It is rated for a maximum continuous current of 15 amps and maintains performance under challenging conditions with an operating temperature range from -30 °C to 105 °C.
The terminal exhibits low contact resistance, with an initial maximum of 10 milliohms and a final maximum of 20 milliohms, ensuring efficient electrical connection over time. The snap-in design allows for easy installation into MULTILOCK 025 connector cavities, making it suitable for demanding industrial automation and automotive applications.
Manufactured in Thailand, this product meets stringent quality standards and is ideal for use in environments requiring dependable wire harness and connector solutions. Compatibility with MULTILOCK 025 connector housing enhances system integration.
Durable copper alloy material with tin plating ensures long-term reliability. Wide operating temperature range supports varied industrial applications. High current carrying capacity of up to 15A for demanding circuits. Low resistance helps maintain signal integrity and power efficiency.
Snap-in fixing enables quick and secure installation. Applicable in automotive, industrial automation, and electronic equipment. Explore more electronic components and crimp contact solutions in the Electronics & Electricals category on EnvMart.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The crimp terminal has a maximum continuous current rating of 15A, making it suitable for automotive and industrial applications.
This model accepts wire gauges from 21 AWG (0.3 mm²) to 20 AWG (0.5 mm²).
It operates reliably within a temperature range of -30 °C to 105 °C.
The terminal is constructed from a copper alloy with tin plating, which enhances corrosion resistance and conductivity.
The crimp termination type ensures a solid mechanical and electrical connection, providing stability and efficient signal transfer.
The terminal has an initial maximum contact resistance of 10 mΩ and a final maximum resistance of 20 mΩ, ensuring efficient electrical connection over time.
Yes, it is designed for use with MULTILOCK 025 connector housings, ensuring secure fitting.
This crimp terminal is manufactured in Thailand.
It is applicable in automotive, industrial automation, and electronic equipment, making it versatile for various environments.
The tin plating improves corrosion resistance and conductivity, enhancing the terminal's performance over time.
The snap-in design allows for easy installation into MULTILOCK 025 connector cavities, facilitating quick and secure assembly.
The low initial and final resistance helps maintain signal integrity and power efficiency in electrical connections.
