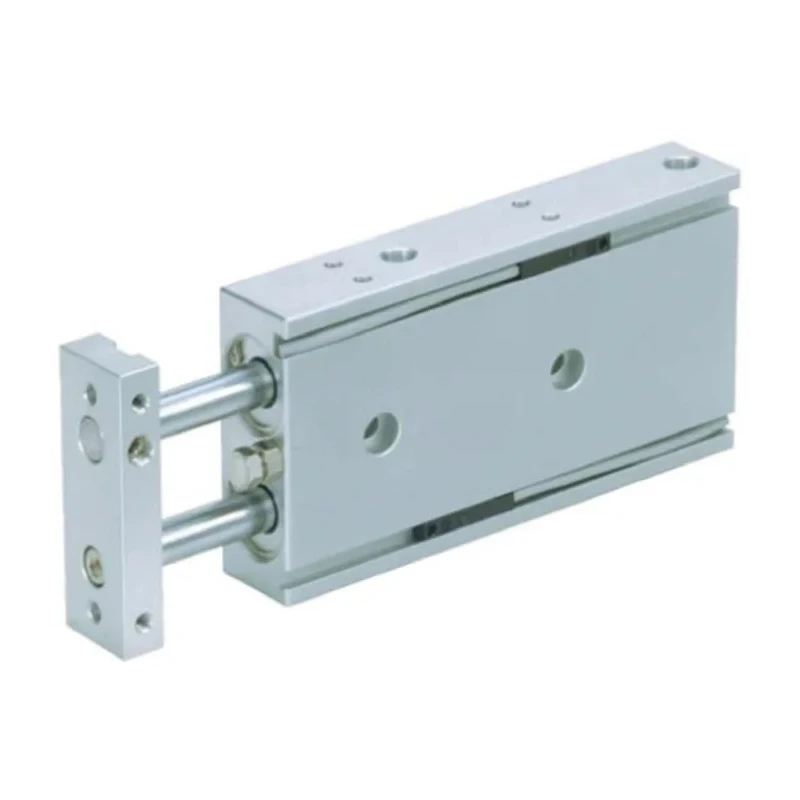

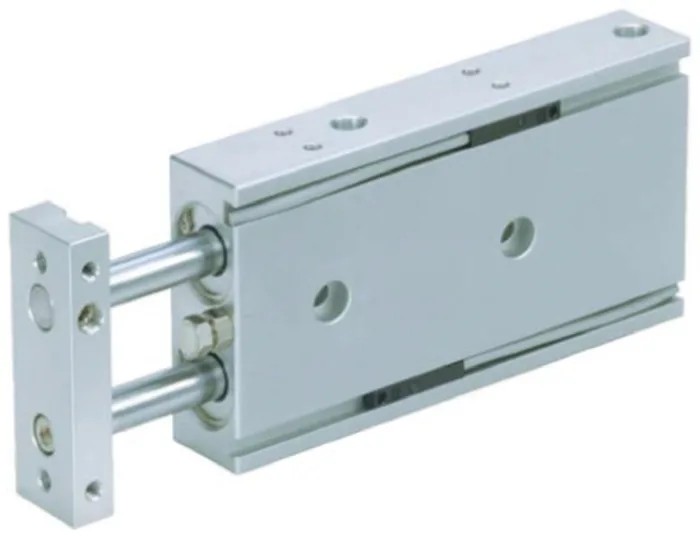

SMC Pneumatic Guided Cylinder 10mm Bore, CXS Series, 40mm Stroke CXSM10-40

The SMC CXSM10-40 Pneumatic Guided Cylinder is a precision-engineered pneumatic actuator featuring a 10mm bore diameter and 40mm stroke length, part of the reliable CXS series.

This dual-rod cylinder integrates slide bearings and ball bearings that provide enhanced non-rotational accuracy and a smooth guided motion, making it ideal for pick-and-place operations in industrial automation.

Constructed for robust industrial applications, it handles a maximum operating pressure of 0.7 Mpa and accommodates operating temperatures from -10°C to 60°C, supporting effective performance in diverse environments.

The rubber cushioning minimizes impact shock at stroke end, improving longevity and operational smoothness. Its compact dimensions of 112mm length, 46mm width, and 17mm height, combined with a lightweight of 210 grams, ensure versatile integration in pneumatic systems.

Manufactured in China, the CXSM10-40 model complies with high standards of quality and reliability. The cylinder offers balanced movement via its double rod construction. Slide and ball bearing guides provide durability and precise linear guidance.

Supports a wide operating temperature range suitable for industrial environments. Rubber cushioning enhances operational smoothness and protects equipment. Compact and lightweight design facilitates easy installation in automation setups.

Maximum operating pressure rating allows use in various pneumatic applications. Integral stroke adjustment capability enhances customization options. Designed for use with non-lubricated, filtered compressed air for maintenance efficiency.

This Pneumatic Guided Cylinder is ideally suited for industrial automation, manufacturing, laboratory automation, material handling, and other applications requiring precise and stable linear motion.
