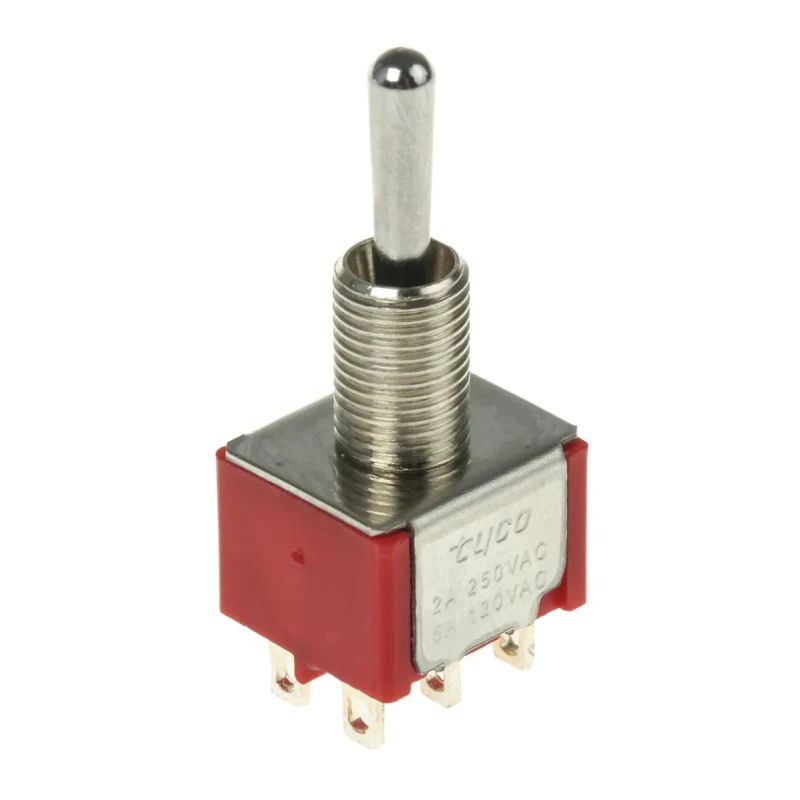

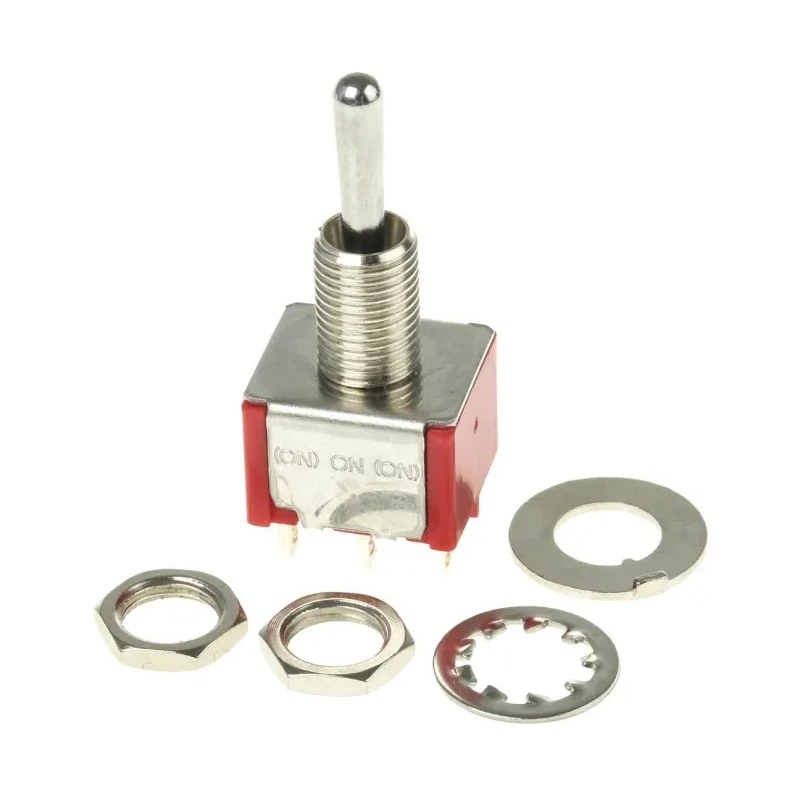

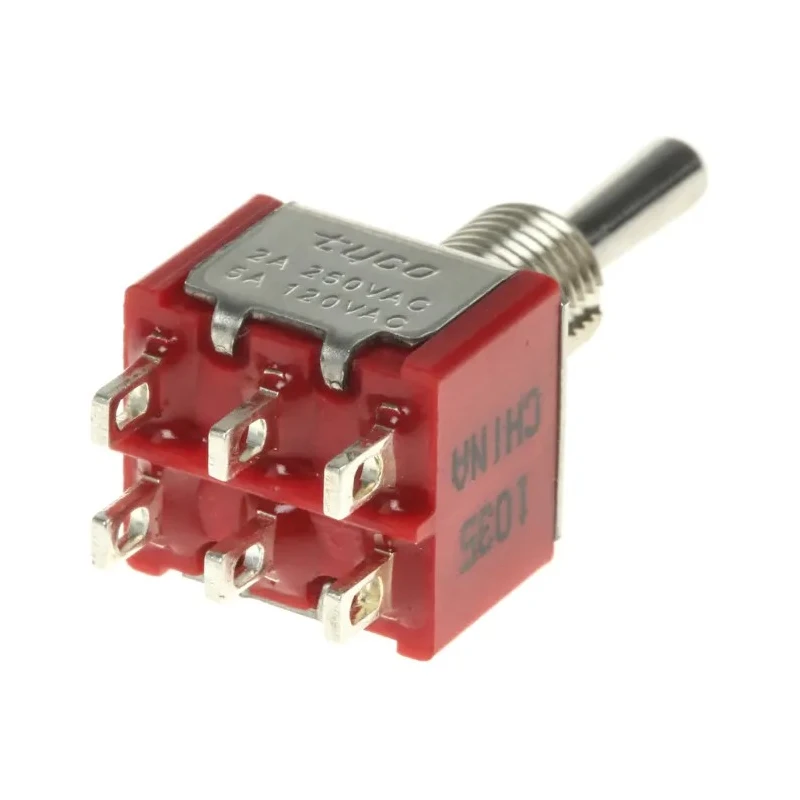

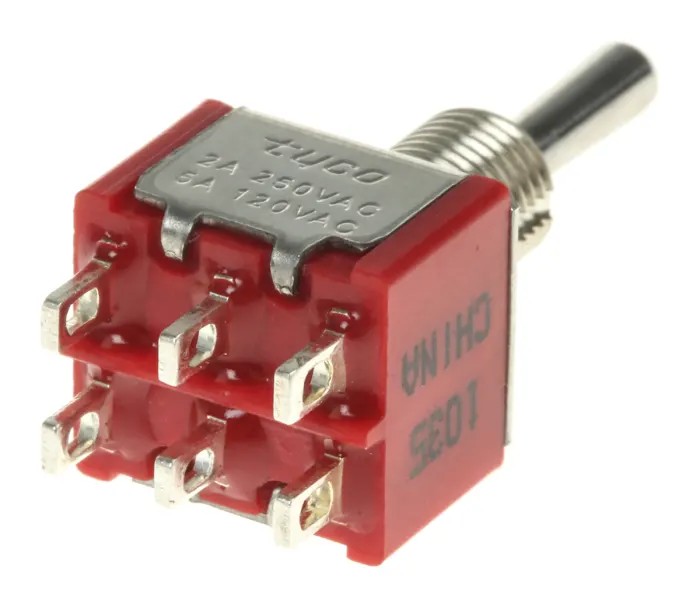

TE Connectivity Panel Mount Toggle Switch DP3T On-On-On Wire Lug Terminal 28V dc 125V ac 4-1825139-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| Width | 0.45in |
| Mount Type | Panel |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DP3T |
| Switch Configuration | (On)-On-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Wire Lug |
| Standards/Approvals | RoHS |
| Switch Operation | On-On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 125V ac |
| Actuator Material | Phenolic |
Key Features
- Designed for panel mounting with wire lug terminals for secure connections.
- Operates at 28V DC and 125V AC contact voltage ratings.
- Switch contact current rated at 5A ensuring reliable electrical performance.
- Actuator made of phenolic material with a length of 10.41 mm for robust operation.
- Panel cutout size is 6.35 mm compatible with Gemini A series specifications.
- Epoxy sealed terminals and stainless steel frame with brass tin-plated solder support for durability.
- Operating temperature range from -30°C minimum to 85°C maximum for varied environments.
- Non-illuminated switch with break before make contact timing to prevent shorts.
Product Description
TE Connectivity 4-1825139-5 is a high-quality panel mount toggle switch designed for applications requiring multi-pole, triple-throw switching functionality. This toggle switch features a DP3T contact configuration with a (On)-On-(On) switch operation suitable for a variety of industrial, automation, and electrical control systems.
Manufactured with a stainless steel frame and brass tin-plated solder support, the switch housing ensures robust mechanical strength and corrosion resistance. Its epoxy sealed terminals provide enhanced electrical isolation and durability.
The actuator is constructed from phenolic material, offering excellent thermal resistance and mechanical stability. With an actuator length of 10.41 mm, the switch is ergonomically designed for easy operation while maintaining compact dimensions of 0.5 inch length, 0.45 inch width, and 0.35 inch height. The panel cutout size of 6.35 mm aligns with the Gemini A series standards for seamless mounting.
Rated for 28 V dc and 125 V ac contact voltages with a switch contact current of 5A, this toggle switch meets the requirements for a wide range of low-voltage control circuits. Its operational temperature range from -30°C to 85°C makes it suitable for harsh industrial and electrical environments.
Panel mount design ensures secure installation and easy integration into control panels. Wire lug terminals provide reliable and straightforward wiring connections. Break before make contact timing prevents electrical shorts during switching transitions.
Non-illuminated model suitable for conventional switching applications. RoHS compliant, contributing to environmentally responsible manufacturing and disposal.
This TE Connectivity Toggle Switch is ideal for use in industrial automation, electrical control panels, HVAC systems, manufacturing equipment, and other applications where reliable multi-position switching is essential.
Explore the Electronics & Electricals category for more switches and components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a DP3T (Double Pole Triple Throw) contact configuration with an (On)-On-(On) switch operation.
It operates at a contact voltage of 28V DC and 125V AC.
The switch contact current is rated at 5A, ensuring reliable electrical performance.
The operating temperature range is from -30°C to 85°C, making it suitable for various environments.
The actuator length is 10.41 mm, designed for ergonomic operation.
The panel cutout size required for this switch is 6.35 mm, compatible with Gemini A series specifications.
The actuator is made of phenolic material, while the housing features a stainless steel frame with brass tin-plated solder support.
No, this model is a non-illuminated switch, suitable for conventional switching applications.
It uses wire lug terminals for secure and reliable wiring connections.
This product is RoHS compliant, contributing to environmentally responsible manufacturing and disposal.
The country of origin for this switch is India.
It is ideal for use in industrial automation, electrical control panels, HVAC systems, and manufacturing equipment.
