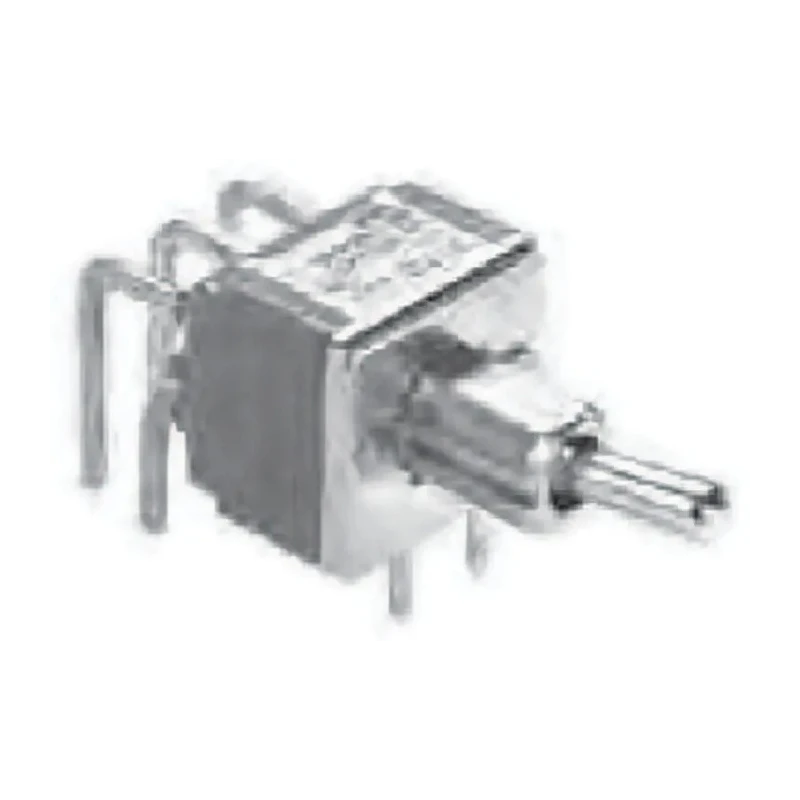

TE Connectivity Toggle Switch PCB Mount On-Off-On DPDT Through Hole Terminal 28 V dc 20 V ac 1825139-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 0.50in |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-Off-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 6.86mm |
| Contact DC Voltage | 28V dc |
| Mechanical Life | 6000Cycles |
| Contact AC Voltage | 20V ac |
| Actuator Material | Phenolic |
Key Features
- The switch features epoxy sealed terminals for durability and reliability.
- It offers a mechanical life of 6000 cycles ensuring long service.
- Constructed with a stainless steel frame and brass tin plated solder support.
- Phenolic actuator material provides robust actuation.
- Designed for operating temperatures from -30°C to 85°C suitable for various environments.
- The switch complies with RoHS standards for environmental safety.
- IP67 rated for protection against dust and water ingress.
- The actuator length measures 6.86 mm for precise switching action.
Product Description
TE Connectivity 1825139-2 Toggle Switch is a high-quality double pole double throw (DPDT) switch designed for reliable PCB mounting in electronic circuits. Featuring an On-Off-On switch configuration, it supports a contact rating of 28 V dc and 20 V ac, making it suitable for both DC and AC operation.
The switch employs epoxy sealed terminals which ensure protection against environmental contaminants and contributes to its IP67 rating, providing excellent dust and water resistance for industrial and commercial applications.
Equipped with a stainless steel frame and brass tin plated solder support, this toggle switch offers enhanced mechanical strength and excellent solder joint reliability. The actuator is made from phenolic material and measures 6.86 mm, facilitating precise manual actuation.
Engineered to operate efficiently within a temperature range of -30°C to 85°C, the switch can be utilized across diverse environments including industrial automation, electrical control panels, consumer electronics, and instrumentation.
With a mechanical life rating of 6000 cycles, this toggle switch provides durability and long-term dependable operation. Moreover, it complies with RoHS directives, ensuring that it is environmentally friendly and free from hazardous substances.
The switch’s double pole double throw design allows for versatile circuit control configurations. Suitable for demanding industrial, laboratory, and commercial electronic applications. Through hole terminal mounting facilitates easy and secure PCB assembly.
High IP67 protection level enables use in harsh environmental conditions. The compact length of 0.50 inches allows efficient space utilization on PCBs. This product aligns with industry standards and is an excellent choice for engineers and designers requiring robust and reliable Toggle Switching solutions.
Explore more in the Electronics & Electricals category, specializing in Switches & Sockets for advanced electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This toggle switch features a double pole double throw (DPDT) contact configuration, allowing for versatile circuit control.
The maximum operating temperature for this model is 85°C, making it suitable for various environments.
It has a mechanical life rating of 6000 cycles, ensuring long-term operation.
This switch has an IP67 rating, providing protection against dust and water ingress.
The switch employs through hole terminals for secure PCB mounting and assembly.
The actuator length measures 6.86 mm, facilitating precise switching action.
It supports a contact rating of 28 V dc for DC operation and 20 V ac for AC operation.
The actuator is constructed from phenolic material, providing robust actuation.
Yes, it complies with RoHS standards, ensuring it is free from hazardous substances.
The minimum operating temperature for this switch is -30°C, allowing it to function in colder environments.
This toggle switch is manufactured in India.
It supports PCB mounting, making it suitable for electronic circuits.
