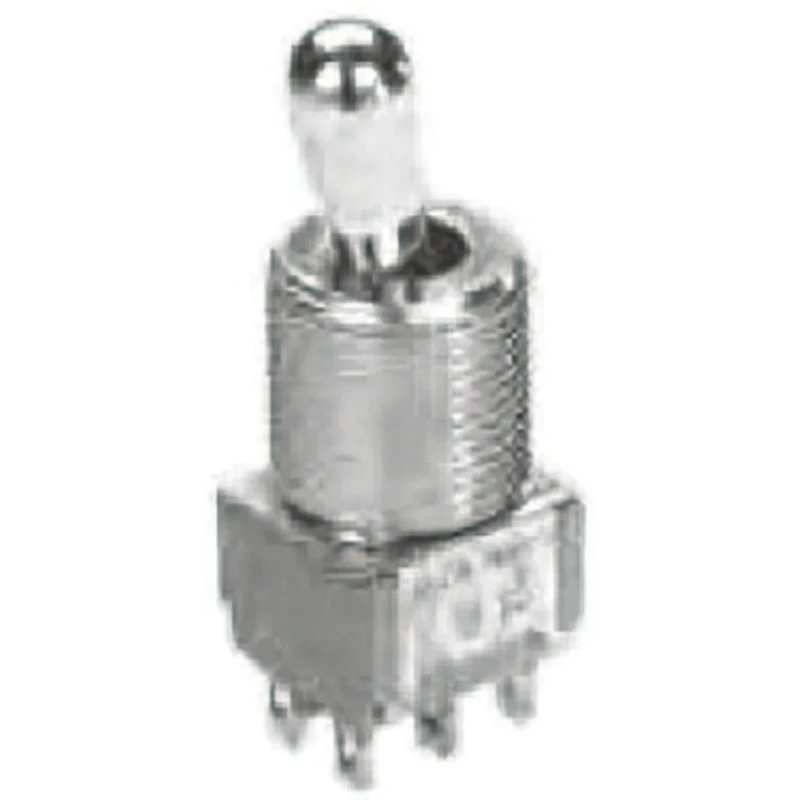

TE Connectivity Toggle Switch Panel Mount On-Off-On DPDT Solder Terminal 28V DC 125V AC 2-1825139-5

TE Connectivity 2-1825139-5 Toggle Switch is a high-quality panel mount switch designed for use in electrical and automation applications. It features an On-Off-On switch operation and DPDT (double pole double throw) contact configuration suitable for controlling two separate circuits simultaneously. Rated for a contact current of 5A, this switch supports contact DC voltage of 28 volts and AC voltage of 125 volts, making it suitable for industrial and commercial electrical systems.

The switch comes with solder terminals that facilitate secure wiring connections, and its panel mounting design ensures easy installation within control panels or machinery enclosures. The actuator is constructed from durable phenolic material, providing good insulation and mechanical strength. With an actuator length of 12.37 mm and compact size dimensions of 0.5 inch length, 0.45 inch width, and 0.35 inch height, it offers ergonomic handling and efficient space utilization.

Operating temperature range from -30°C to 85°C allows this toggle switch to be used reliably in a variety of environmental conditions, including harsh industrial environments. It also features epoxy sealed terminals and a stainless steel frame with brass tin-plated solder support to enhance durability and longevity. The switch belongs to the Gemini A series and complies with RoHS standards, ensuring compliance with environmental safety regulations.

This product is ideal for use in electrical control panels, automation systems, instrumentation, HVAC controls, and manufacturing equipment where robust and reliable switch operation is required. The On-Off-On switch configuration makes it versatile for applications needing a two-circuit control with a center off position.

Double pole double throw (DPDT) contact configuration for multiple circuit control. On-Off-On switch operation with 5A contact current rating. Panel mount type with 0.25 inch panel cutout size. Solder terminal type for secure electrical connections.

Phenolic actuator material with length of 12.37 mm. Compact size: 0.5 inch length, 0.45 inch width, 0.35 inch height. Operating temperature range: -30°C to 85°C for harsh environments. Epoxy sealed terminals and stainless steel frame for durability.

RoHS compliant Gemini A series toggle switch. Explore more products within our Electronics & Electricals category, including advanced Toggle Switches and panel mount components designed for industrial automation and control.
