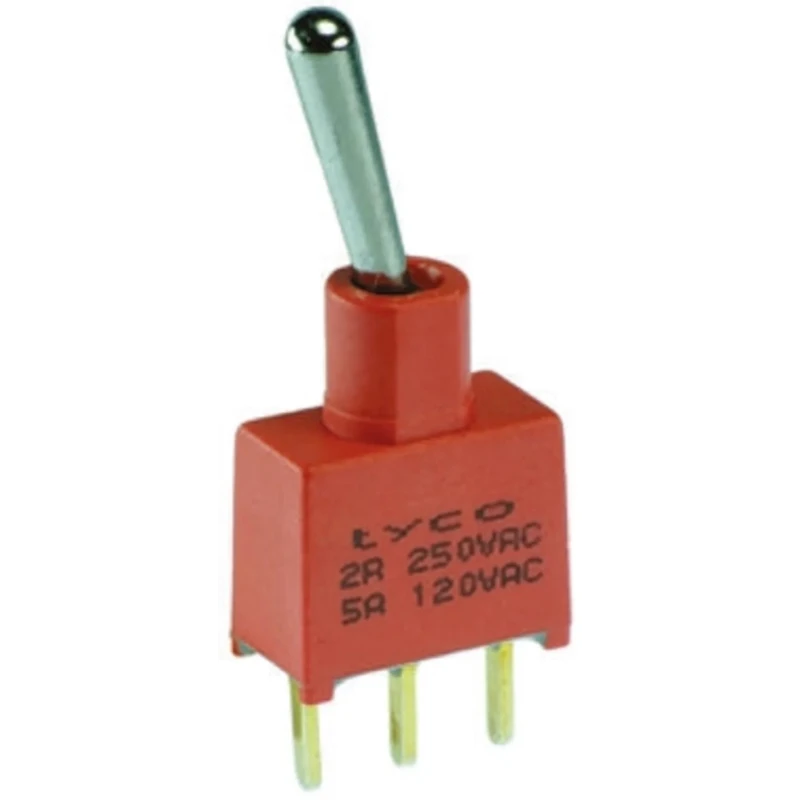

TE Connectivity Toggle Switch PCB Mount SPDT On-Off-On Switch 28 V dc 115 V ac 3-1825142-9
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | (On)-Off-(On) |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 12.7mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- Operates at 28 V dc and 115 V ac voltage ratings.
- Features a robust phenolic actuator with 12.7 mm length.
- Seal rated at IP67 for dust-tight and water-resistant performance.
- Designed with through hole terminal type for secure PCB mounting.
- Supports a switch contact current of 400 mA suitable for low power control.
- Operates reliably between -30°C to 85°C temperature range.
- Complies with RoHS standards ensuring environmental safety.
- Stainless steel frame and epoxy sealed terminals ensure durability and corrosion resistance.
Product Description
TE Connectivity 3-1825142-9 Toggle Switch is a precision-engineered PCB mount device offering SPDT configuration with On-Off-On switch operation. Rated for 28 V dc and 115 V ac voltage, this toggle switch is ideal for industrial, automation, electronic control, and telecommunications equipment.
The switch actuator is made from phenolic material, measuring 12.7 mm in length, designed for easy manual operation. The robust stainless steel frame, combined with epoxy sealed terminals, provides excellent mechanical stability and corrosion resistance, allowing it to function in harsh environments.
Its IP67 rating certifies total protection against dust ingress and water immersion, making it suitable for demanding industrial applications. The through hole terminal type enables secure soldering to PCBs, supporting compact and reliable electronic assembly.
Designed for currents up to 400 mA, the toggle switch ensures dependable low power switching capability. It operates efficiently under a wide temperature range from -30°C to 85°C, making it suitable for diverse climates and indoor or outdoor use.
The switch follows the 'break before make' contact timing, which avoids electrical shorts during switching transitions. Additionally, the product is RoHS compliant, adhering to environmental and safety regulations.
This Toggle Switch is well-suited to applications in automation systems, industrial controls, instrumentation, and telecommunications. Its sealed design and durable construction support long service life, even in demanding conditions.
Explore more electronic components and switches from TE Connectivity at EnvMart to build reliable and efficient electronic solutions. Operates at 28 V dc and 115 V ac voltage ratings. Features a robust phenolic actuator with 12.7 mm length.
Seal rated at IP67 for dust-tight and water-resistant performance. Designed with through hole terminal type for secure PCB mounting. Supports a switch contact current of 400 mA suitable for low power control. Operates reliably between -30°C to 85°C temperature range.
Complies with RoHS standards ensuring environmental safety. Stainless steel frame and epoxy sealed terminals ensure durability and corrosion resistance. Break before make contact configuration prevents short circuits during switching.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This toggle switch operates at a voltage rating of 28 V dc and 115 V ac.
It supports a switch contact current of 400 mA, making it suitable for low power control applications.
The switch operates reliably within a temperature range of -30°C to 85°C.
This model is designed for PCB mounting with a through hole terminal type for secure soldering.
It has an IP67 rating, ensuring it is dust-tight and water-resistant.
The actuator is made from phenolic material and measures 12.7 mm in length.
It features an SPDT (Single Pole Double Throw) contact configuration with an On-Off-On switch operation.
Yes, it complies with RoHS standards, ensuring environmental safety.
It is well-suited for applications in automation systems, industrial controls, instrumentation, and telecommunications.
The switch is designed with a 'break before make' contact timing, which prevents electrical shorts during switching transitions.
The stainless steel frame and epoxy sealed terminals provide excellent mechanical stability and corrosion resistance.
The country of origin for this toggle switch is India.
