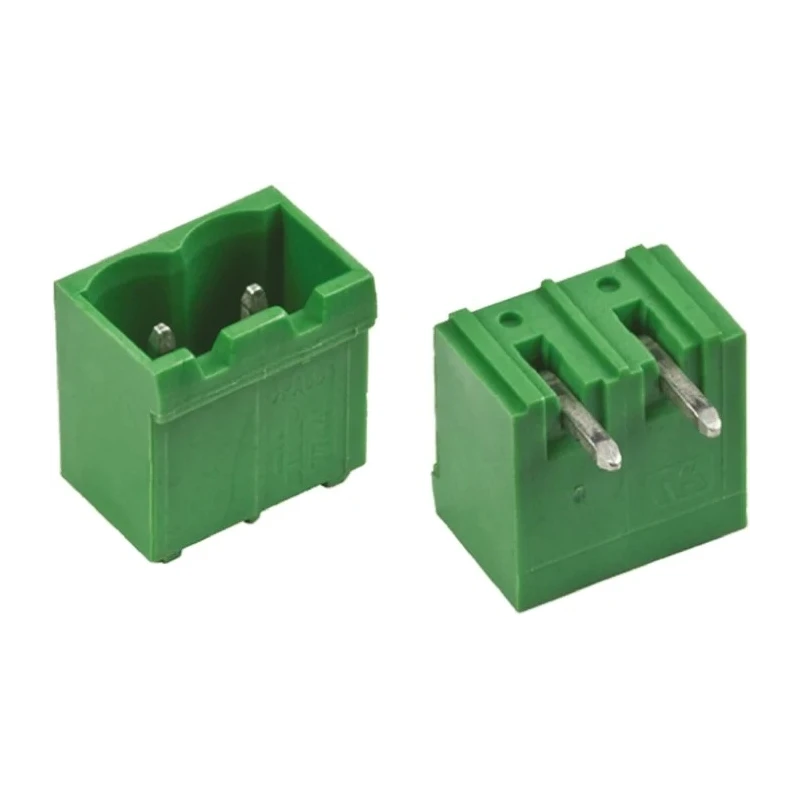

TE Connectivity Buchanan Series Pluggable Terminal Block, 2-Contact, 5.08 mm Pitch, 1 Row 796638-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Right Angle |
| Current | 15A |
| Model | 796638-2 |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Number of Contacts | 2 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 3mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 30AWG |
| Wire Connection Method | Solder |
Key Features
- Constructed with green polyamide housing for durability.
- Rated for a current of 15A and voltage of 300V.
- Supports wire sizes from 0.05 mm² to 3 mm² and AWG from 12 to 30.
- Designed with a right-angle orientation and solder wire connection method.
- Female connector gender ensures compatibility with matching male terminals.
- Series Buchanan offers reliable pluggable terminal block solutions.
- Ideal for industrial and electronic component applications requiring secure electrical connections.
- Compact 5.08 mm pitch spacing enables efficient PCB design and assembly.
Product Description
TE Connectivity 796638-2 Buchanan Series Pluggable Terminal Block provides a highly reliable electrical connection solution, featuring 2 contacts arranged in a single row with a 5.08 mm pitch. It is rated for 15A current and 300V voltage, supporting wire gauges from 12 AWG down to 30 AWG and wire cross-sections ranging from 0.05 mm² to 3 mm². The connector is designed with a right-angle orientation and employs solder wire connection method for solid and durable joints.
The housing is made from robust green polyamide 6.6 GF material, providing mechanical strength and electrical insulation compliant with UL 94V-0 flame retardance standards. The female connector type facilitates easy and secure pluggable connections within electrical assemblies and printed circuit boards, particularly useful in industrial electronics, automation equipment, and power distribution applications.
The Buchanan series is well-regarded for quality and consistency in the electronics components market, ensuring stable connections in demanding environments. Its compact pitch of 5.08 mm helps optimize PCB real estate while maintaining accessibility for wiring and inspection.
This terminal block supports applications in industrial manufacturing, electronic device assembly, and power control panels. Its precise design promotes efficient production and reliable electrical performance under rated current and voltage.
Constructed with green polyamide housing for durability. Rated for a current of 15A and voltage of 300V. Supports wire sizes from 0.05 mm² to 3 mm² and AWG from 12 to 30. Designed with a right-angle orientation and solder wire connection method.
Female connector gender ensures compatibility with matching male terminals. Series Buchanan offers reliable pluggable terminal block solutions. Ideal for industrial and electronic component applications requiring secure electrical connections.
Compact 5.08 mm pitch spacing enables efficient PCB design and assembly. Explore the Electronics Components category at EnvMart for more terminal block and connector solutions by TE Connectivity and other leading brands.
Explore more products in our Pluggable Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 15A and a voltage of 300V.
This terminal block supports wire sizes from 0.05 mm² to 3 mm² and AWG sizes from 12 to 30.
The contacts are arranged with a pitch of 5.08 mm.
It employs a solder wire connection method for secure electrical joints.
This model is designed with a right-angle orientation.
The housing is constructed from green polyamide 6.6 GF material, providing mechanical strength and electrical insulation.
It features 2 contacts arranged in a single row.
This terminal block has a female connector gender, ensuring compatibility with matching male terminals.
The country of origin for this terminal block is India.
It belongs to the Buchanan series, which is known for reliable pluggable terminal block solutions.
It is suitable for applications in industrial manufacturing, electronic device assembly, and power control panels.
The housing color is green.
