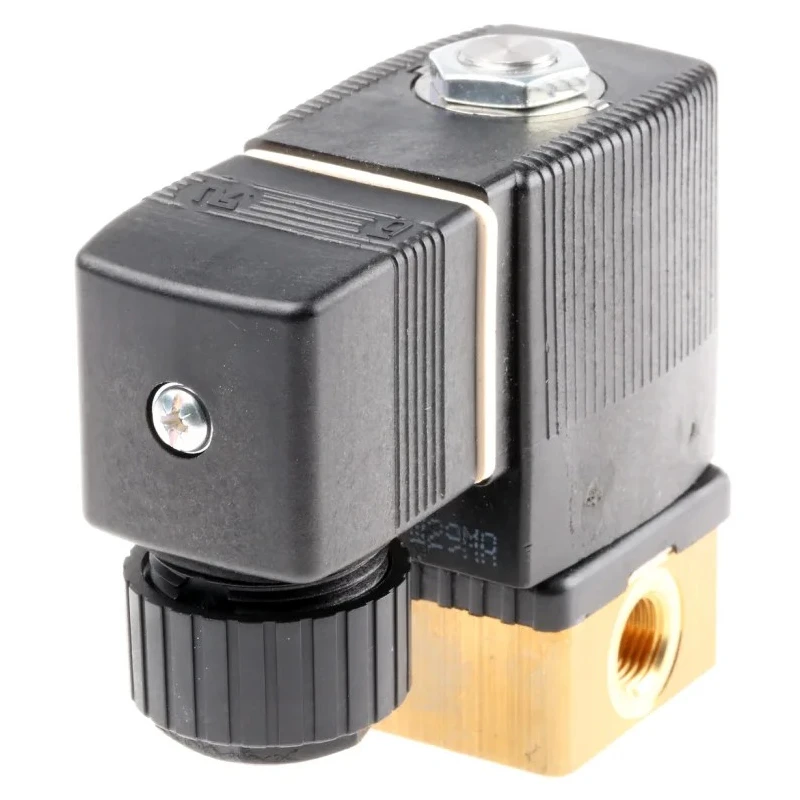

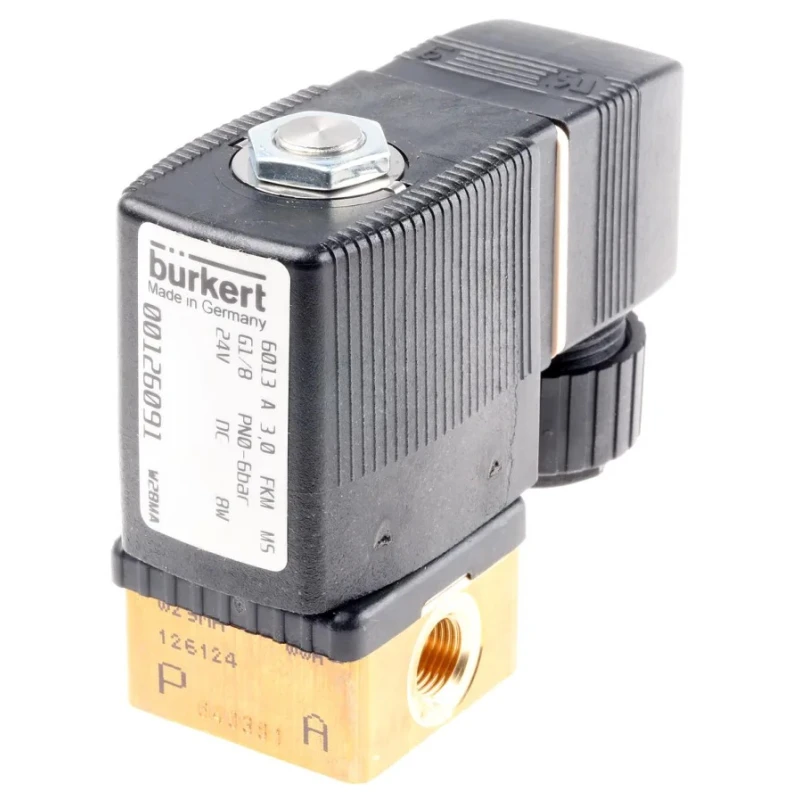

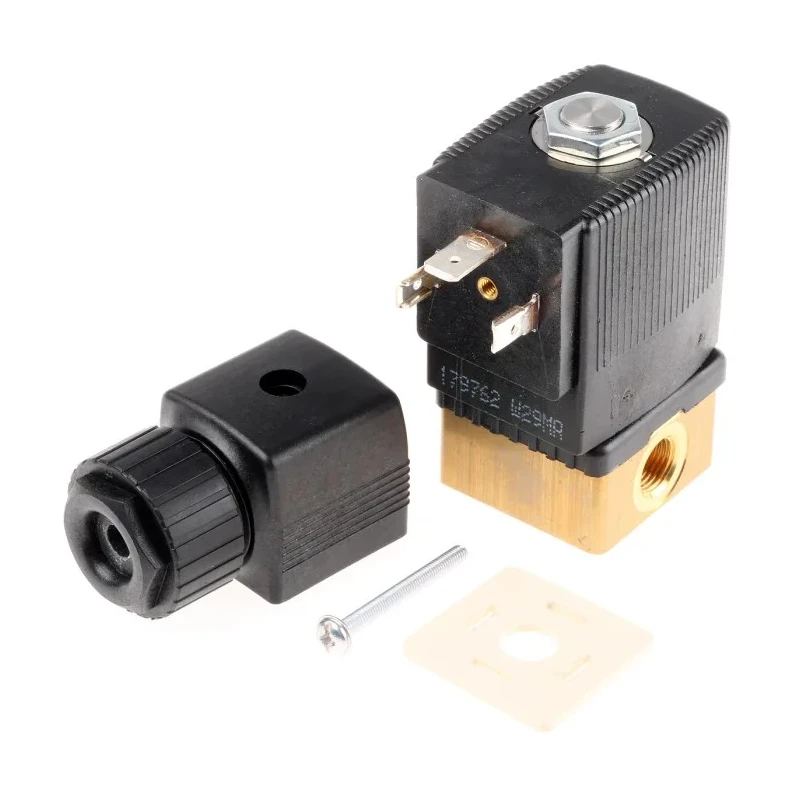

RS PRO Solenoid Valve Brass Body 2 Port NC 24V DC 3.18 mm Orifice 126091
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | RS PRO |
| Body Material | Brass |
| Maximum Operating Pressure | 6 bar |
| Model | 126091 |
| Series | 6013 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 3mm |
| Supply Voltage | 24V dc |
| Inlet Port Size | 3.18 mm |
| Default Valve Position | NC |
| Inlet Port Gender | Female |
| Maximum Opening Time | 20ms |
| Flow Factor Kv | 0.23m³/h |
| Maximum Closing Time | 30ms |
| Burkert Solenoid Valve 125301, 2 Port, NC, 24V dc 6.35 mm, 6.35 mmBrand | Burkert |
| RS PRO Solenoid Valve, 2 Port, NC, 24V 1/8 in, 0.13 inRS Stock No. | 255-4145Brand: RS PRO |
| Solenoid Valve, 2 port(s) , NC, 24 V dc, 1/8inBrand | Burkert |
Key Features
- Designed for operating pressures up to 6 bar.
- Features a 3.18 mm inlet and outlet port size with a 3 mm orifice diameter.
- Valve operates within temperature range of -10°C to 55°C.
- Coil can be locked in four positions or moved freely as required.
- Suitable for liquids and neutral gases including compressed air, natural gas, water, and hydraulic oil.
- Maximum opening and closing times are 20 ms and 30 ms respectively.
- Flow factor Kv is 0.23 m³/h.
- Equipped with vibration-proof bolted coil system and high-quality FKM seal material.
Product Description
Burkert 126091 solenoid valve is a high-quality industrial valve with a brass body and 2-port normally closed (NC) configuration designed for precise fluid and gas flow control in pneumatic and hydraulic systems. The valve operates at 24V DC and features female inlet and outlet ports sized 3.18 mm.
Constructed with a vibration-proof bolted coil system, the valve integrates a welded stopper and plunger guide tube for enhanced pressure resistance and leak tightness. The seal material used is FKM, which ensures reliable sealing performance under varied industrial conditions.
This valve is suitable for controlling compressed air, natural gas, water, and hydraulic oil, making it highly versatile across various industrial sectors including laboratory instrumentation, welding technology, and pneumatic controls.
The maximum operating pressure is rated at 6 bar, and the valve functions efficiently within temperature limits of -10°C to 55°C. It has a fast response with maximum opening time of 20 milliseconds and closing time of 30 milliseconds. The valve’s flow factor Kv is 0.23 m³/h, allowing precise control of flow rates in process systems.
The coil can be easily replaced without removing the valve from the installation and can be locked in four different positions by 90-degree rotations or moved freely between positions as needed, enhancing installation flexibility.
Designed for reliable operation up to 6 bar pressure. Compact, direct-acting valve suitable for diameters up to DN 6.0. Durable brass body with polyamide coil for robust performance. High-quality FKM seals resistant to various media.
Quick response times for opening and closing. Versatile application for liquids and neutral gases. Vibration-proof coil and enhanced leak tightness construction.
This Burkert Solenoid Valve is manufactured in Germany, reflecting international quality standards. It is ideal for a range of applications including pneumatic control, dosing, filling, venting, laboratory measuring technology, welding technology, and small-scale industrial instrumentations.
Explore more industrial valves and fittings in the Industrial Supplies category at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 6 bar.
The orifice diameter of the valve is 3 mm.
This model operates at a supply voltage of 24V DC.
The valve operates efficiently within a temperature range of -10°C to 55°C.
The maximum opening time is 20 milliseconds, and the maximum closing time is 30 milliseconds.
The valve features a brass body and high-quality FKM seals for reliable sealing performance.
This valve is suitable for controlling liquids and neutral gases, including compressed air, natural gas, water, and hydraulic oil.
The flow factor Kv for this solenoid valve is 0.23 m³/h.
The coil can be locked in four different positions by 90-degree rotations or moved freely as required.
The inlet port size of this valve is 3.18 mm with a female connection.
This solenoid valve is manufactured in Germany.
The default valve position for this model is normally closed (NC).
