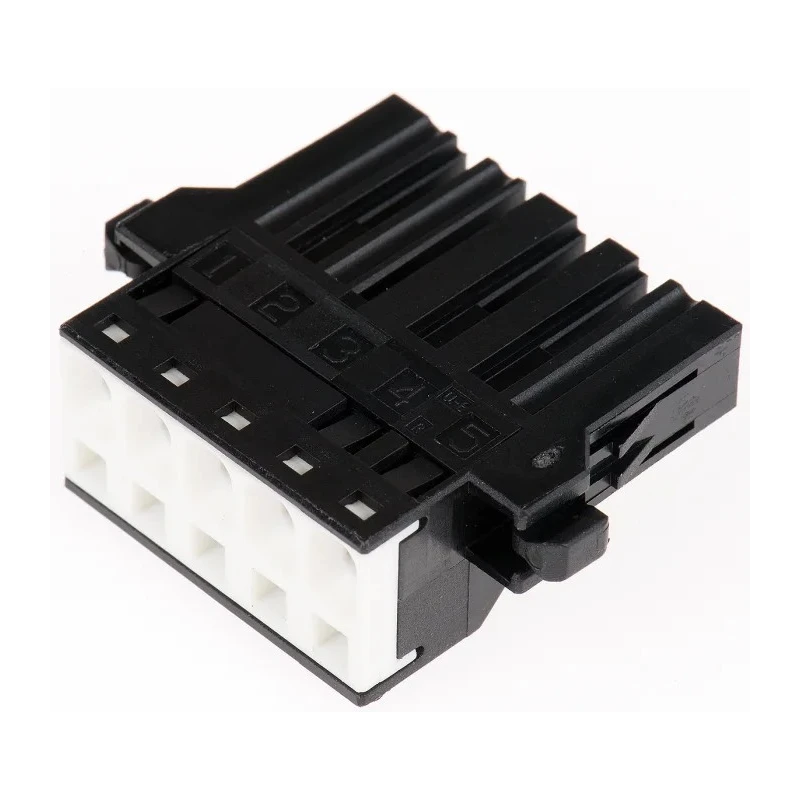

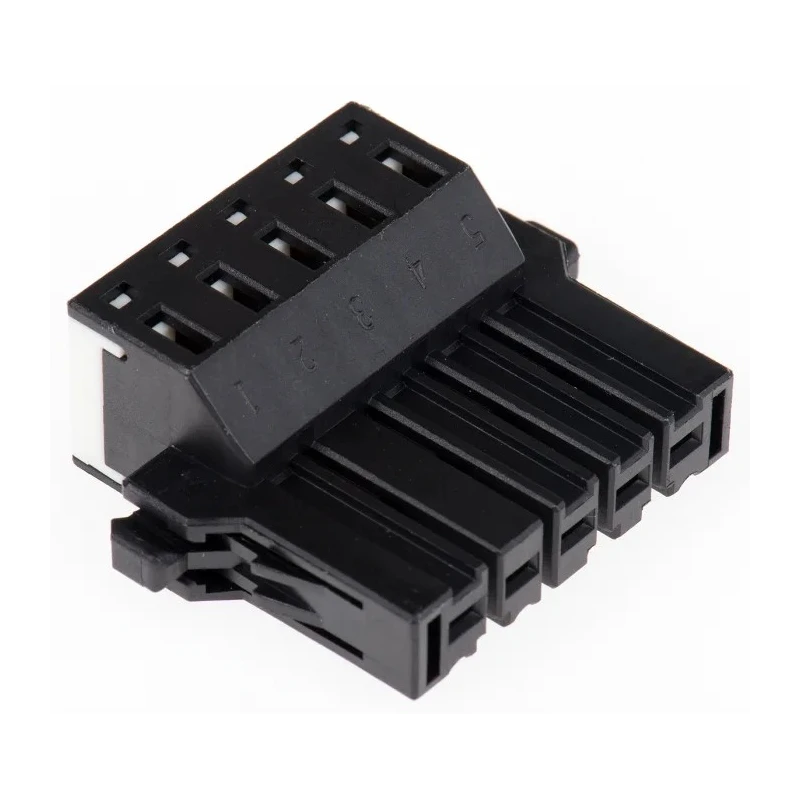

JST J300 Female Connector Housing, 5.08 mm Pitch, 5 Way, 1 Row Straight 05JFAT-SBXGF-I

Free Delivery in India | Lowest Global Shipping Charges

JST J300 Female Connector Housing, 5.08 mm Pitch, 5 Way, 1 Row Straight 05JFAT-SBXGF-I



Category Connector Housing Brand JST Condition New

Specifications

Country of Origin	China
Brand	JST
Orientation	Straight
Length	39.32mm
Model	05JFAT-SBXGF-I
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Series	J300
Number of Rows	1
Pitch	5.08mm
For Use With	JFA Connector
Number of Contacts	5
Connector Gender	Female

Key Features

Features 5 contact points arranged in a single row.
Uses polybutylene terephthalate housing for durability and insulation.
Spring lock mechanism allows easy wire insertion without crimp terminals.
Suitable for wire sizes ranging from 14 to 28 AWG.
Connector mates with J300 series and J320 headers.
Orientation is straight for direct cable routing.
Meets UL 94V-0 flammability standard for safety.

Product Description

JST 05JFAT-SBXGF-I is a female connector housing designed for electronic and power connectors requiring 5 contacts arranged in a 5.08 mm pitch single row straight configuration. This connector housing is intended for use with JFA connectors and facilitates secure cable mounting through an internal spring lock mechanism. The housing material is polybutylene terephthalate which provides excellent durability and resistance to heat, making it suitable for industrial and commercial applications.

The spring lock termination allows wires to be inserted simply by stripping and pushing the wire into the connector, eliminating the need for separate crimp terminals. This finger-friendly design enhances installation efficiency with the optional J-FAT-OT insertion tool. The connector mates reliably with J300 and J320 series headers, and polarization options are available by selecting appropriate key codes.

The housing supports wire sizes from 14 to 28 AWG, accommodating a broad range of wiring requirements in electronic assemblies. Its straight orientation allows neat cable routing, and the compact length of 39.32 mm optimizes PCB space usage. The connector housing complies with UL 94V-0 flammability standards, ensuring electrical safety in demanding environments.

This product is suitable for electronic manufacturing, PCB assembly, industrial automation, and power distribution applications where reliable wire-to-board connections are needed.

Features 5 contacts for multi-wire connections in a compact single row layout. Constructed from polybutylene terephthalate for robust electrical insulation and mechanical strength. Designed with an internal spring lock for tool-assisted, crimp-free wire insertion.

Mates with JST J300 and J320 headers for versatile PCB integration. Convenient wire sizes support from 14 to 28 AWG for flexible wiring options. Straight cable mount orientation provides easy routing and assembly. Meets industrial safety standards UL 94V-0 for flammability resistance.
