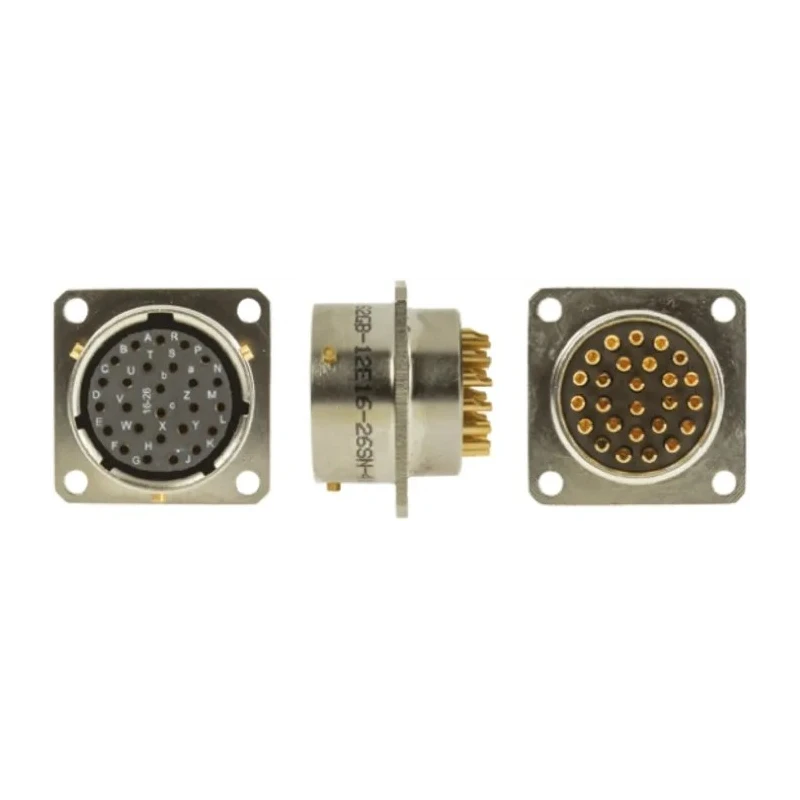

Amphenol Limited MIL Spec Circular Connector 26 Way Box Mount Female Nickel Iron Alloy 500, 700V ac 62GB-12E16-26SN(416)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500, 700V ac |
| Brand | Amphenol Limited |
| Orientation | Straight |
| Model | 62GB-12E16-26SN(416) |
| Mount Type | Box Mount |
| Housing Material | Steel |
| Contact Material | Nickel Iron Alloy |
| Series | 62GB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Tin over Copper |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shell Size | 16 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Connector Size | Miniature |
| Shell Plating | Nickel |
Key Features
- The connector is designed with a miniature shell size 16 and provides bayonet mating type.
- It operates reliably between -55°C to 125°C temperature range, suitable for harsh environments.
- The shell features durable nickel plating over steel housing for long-lasting corrosion resistance.
- Contacts are made of nickel iron alloy with tin over copper plating, ensuring excellent conductivity.
- This connector complies with MIL-DTL-26482 military specifications and is built for robust industrial and military applications.
- The termination type is solder bucket, enabling strong electrical contact with cables.
- Its straight orientation and female contact gender make it compatible with matching male connectors.
Product Description
Amphenol Limited 62GB-12E16-26SN(416) is a MIL Spec Circular Connector designed to meet demanding industrial and military standards. It features 26 female nickel iron alloy contacts housed within a miniature shell size 16 steel body plated with durable nickel. This straight, box mount connector offers reliable electrical performance with a bayonet mating type for secure connection.
Operating voltage ranges between 500 and 700V ac, making it suitable for various power and signal transmission applications. The connector is engineered to withstand harsh environments with an operating temperature range from -55°C minimum to 125°C maximum, resisting corrosion and mechanical wear with its robust nickel plating on steel housing.
The solder bucket termination type ensures secure cable attachment, while the tin over copper plating on the contacts enhances electrical conductivity and longevity. Designed according to MIL-DTL-26482 military standards, this rugged connector is ideal for military, aerospace, industrial, and other professional applications that demand durable and precise circular connectors.
This product offers excellent compatibility and performance when paired with matching male connectors due to its female contact and gender configuration. The bayonet coupling mechanism enables reliable and quick assembly and disassembly in field conditions.
The connector features 26 female contacts made from nickel iron alloy plated with tin over copper. Steel housing with nickel plating ensures durability and corrosion resistance. Operates in temperature ranges from -55°C to 125°C for use in extreme environments.
Compliant with MIL-DTL-26482 for military-grade reliability and standards. Miniature shell size 16 with box mount configuration provides compact and secure installation. Bayonet mating type offers quick and reliable coupling in the field or manufacturing settings.
Solder bucket termination suits a variety of cable assembly requirements.
This connector is part of the Amphenol 62GB series, known for its rugged construction and reliable electrical performance in military and industrial environments. Explore more Mil Spec Circular Connectors at EnvMart for comprehensive solutions tailored to your application.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector operates at a voltage range of 500 to 700V ac.
It operates reliably within a temperature range of -55°C to 125°C.
This model features a solder bucket termination type, allowing for secure cable attachment.
It has a total of 26 female contacts made from nickel iron alloy.
The connector is designed with a miniature shell size 16.
Yes, it complies with MIL-DTL-26482 military specifications.
The housing is made of steel and features nickel plating for corrosion resistance.
It utilizes a bayonet mating type for secure connections.
The contacts are plated with tin over copper to enhance conductivity.
This model has a straight orientation.
It is designed for robust industrial and military applications that require reliable performance.
The country of origin for this connector is India.
