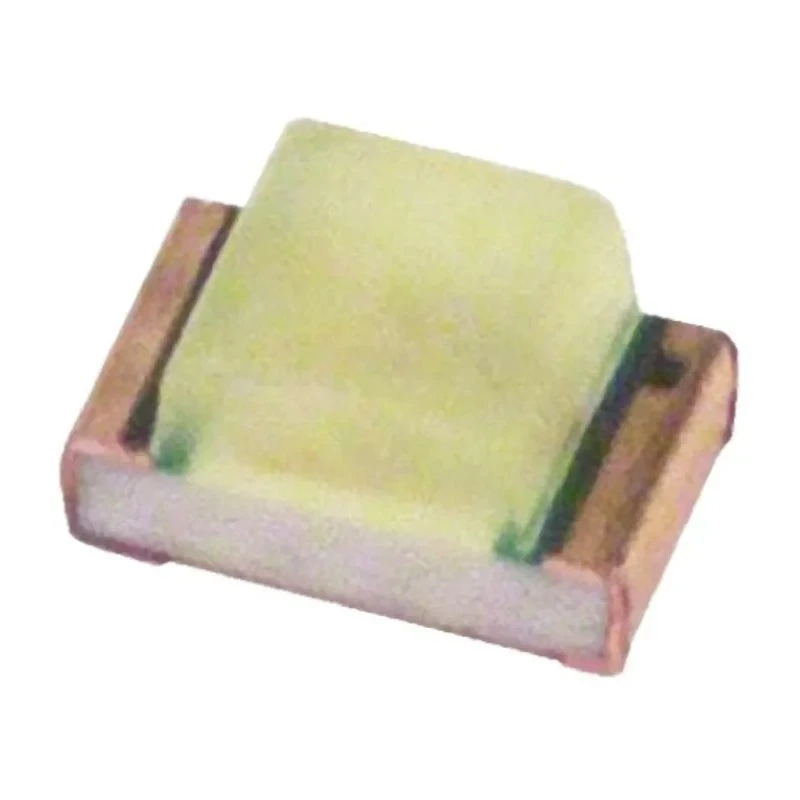

Lite-On 3.6 V White LED 2012 Surface Chip LED 0805 LTW-170ZDC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Lite-On |
| Model | LTW-170ZDC |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | CHIP LED 0805 |
| Number Of Leds | 1 |
| Maximum forward current | 20mA |
| Viewing angle | 130 ° |
| Package Type | 2012 |
| Standards/Approvals | RoHS |
| LED Colour | White |
| Forward Voltage | 3.6V |
| Number of Pins | 2 |
| LED Luminosity | 450 mcd |
| Maximum Power Dissipation | 70mW |
| Lens Dimensions | 2 x 1.25 mm |
| Lens Shape | Rectangular |
Key Features
- The LED emits white light with a forward voltage of 3.6 V.
- It features a viewing angle of 130 degrees for wide light dispersion.
- The chip size dimensions are 2 x 1.25 mm in a standard 2012 package.
- Maximum forward current is rated at 20 mA ensuring efficient operation.
- Maximum power dissipation is 70 mW for stable power handling.
- The LED has a brightness of 450 mcd with a clear rectangular lens shape.
- Mount type is surface mount facilitating easy PCB integration.
- It comes packaged on tape and reel optimized for automated assembly.
Product Description
Lite-On LTW-170ZDC is a high-quality 3.6 V white LED designed as a 2012 surface mount chip LED (0805 series) offering compact dimensions of 2 x 1.25 mm.
This LED is engineered for industrial and electronic applications requiring precise visual indicators or illumination with a wide 130° viewing angle and brightness of 450 millicandela.
It utilizes a clear rectangular lens that ensures efficient light output and consistent optical performance. With a maximum forward current of 20 mA and power dissipation of 70 mW, it delivers reliable performance while maintaining low power consumption.
The component comes in a tape and reel packaging format, facilitating efficient handling and mass production assembly by automated machinery.
Designed for surface mounting, it allows easy integration onto printed circuit boards in electronic devices, displays, and lighting modules within industrial, commercial, and consumer electronics sectors.
The LED emits bright, clear white light with a wide viewing angle suitable for indicators and backlighting. Its compact 2012 package supports space-constrained electronic designs. The robust surface mount construction improves durability and mounting stability.
Compliance with RoHS ensures environmental and safety standards. Manufactured in China, this Lite-On LED meets stringent quality benchmarks. Tape and reel packaging enhances production line efficiency and reduces handling damage risks.
The forward voltage and current ratings optimize device power consumption and longevity. This LED is part of the CHIP LED 0805 series, a popular choice in electronic component design.
This Lite-On LTW-170ZDC LED is ideal for use in electronic indicators, signal lights, instrumentation panels, automotive lighting, and various industrial and laboratory equipment requiring efficient and reliable LED performance.
Explore the extensive range of Lite-On LEDs and related electronic components available in the EnvMart electronics catalog to meet diverse manufacturing and repair needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this LED is 3.6 V.
The maximum forward current is rated at 20 mA.
It has a viewing angle of 130 degrees, allowing for wide light dispersion.
The LED has a brightness of 450 millicandela (mcd).
The chip dimensions are 2 x 1.25 mm, conforming to the 2012 package type.
It comes packaged on tape and reel, which is optimized for automated assembly.
This model uses a surface mount type, facilitating easy integration onto printed circuit boards.
The maximum power dissipation is 70 mW.
The LED complies with RoHS standards, ensuring it meets environmental and safety regulations.
It features a clear rectangular lens shape, which ensures efficient light output.
This model includes one LED.
It is suitable for electronic indicators, signal lights, instrumentation panels, and various industrial applications.
