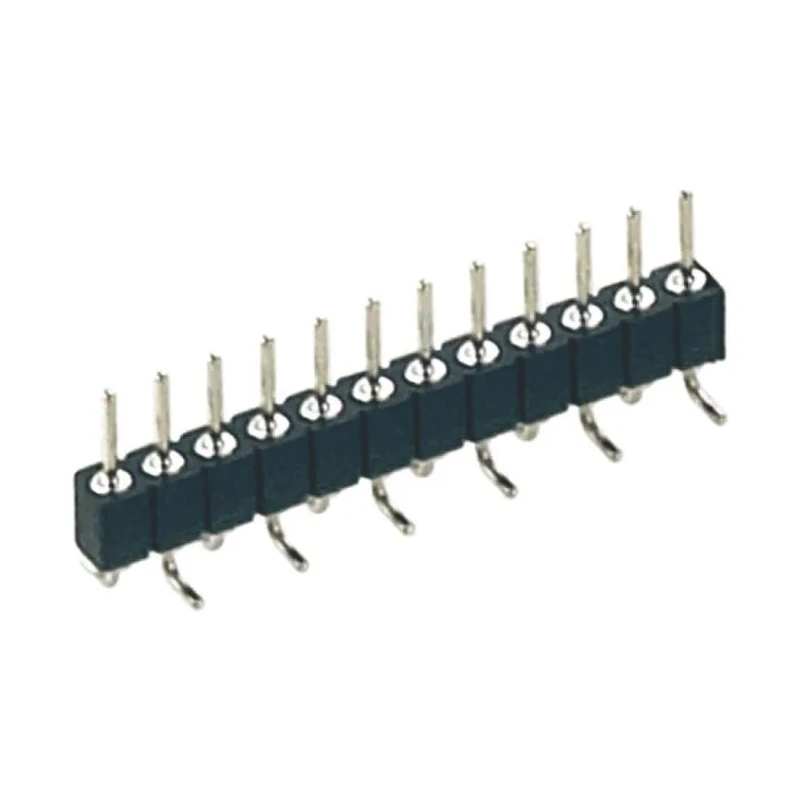

Preci-Dip 830 Series Straight Surface Pin Header 12 Contacts 2 mm Pitch 1 Row Unshrouded 830-80-012-30-001101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Surface |
| Housing Material | Fibreglass Reinforced Polymer |
| Contact Material | Brass |
| Series | 830 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- This pin header features 12 male brass contacts plated with tin for durability.
- It has a 2 mm pitch and is unshrouded for easy access.
- The housing is made of fibreglass reinforced polymer that is robust and heat resistant.
- It supports a current rating of 3A and voltage rating of 150V.
- The connector operates reliably in temperatures from -55°C to 125°C.
- It is a surface mount type suitable for solder termination.
- Designed with straight orientation and a single row configuration.
- Ideal for industrial, electronic manufacturing, and PCB assembly applications.
Product Description
Preci-Dip 830-80-012-30-001101 Straight Surface Pin Header is engineered for precision and durability in electronic PCB applications. This pin header features 12 male brass contacts with tin plating, arranged in a single row with a 2 mm pitch, providing stable and reliable electrical connections suitable for a wide variety of circuit board designs.
The housing is constructed from fibreglass reinforced polymer, offering excellent mechanical strength and resistance to high temperatures, with operational temperature ranging from -55°C to 125°C. This pin header supports a current carrying capacity of 3A and voltage up to 150V, making it suitable for various power and signal applications in industrial and commercial electronic equipment.
The straight pin header design is unshrouded and mounts directly onto the PCB surface with solder termination, facilitating efficient assembly and maintenance. It follows UL 94V-0 flammability standard ensuring electrical safety and compliance.
Typical use cases include electronic manufacturing, industrial automation, PCB prototyping, and assembly lines where reliable and robust connectors are critical. Made in Switzerland, this Preci-Dip component meets stringent quality requirements for premium performance.
This pin header features 12 male brass contacts plated with tin for durability. It has a 2 mm pitch and is unshrouded for easy access. The housing is made of fibreglass reinforced polymer that is robust and heat resistant.
It supports a current rating of 3A and voltage rating of 150V. The connector operates reliably in temperatures from -55°C to 125°C. It is a surface mount type suitable for solder termination. Designed with straight orientation and a single row configuration.
Ideal for industrial, electronic manufacturing, and PCB assembly applications. Manufactured in Switzerland ensuring high-quality standards. This pin header complies with UL 94V-0 standards for material flammability. Explore more PCB Pin Header and electronic connector products from EnvMart to find suitable solutions for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this pin header is 150V.
It supports a current rating of 3A.
This connector operates reliably in temperatures ranging from -55°C to 125°C.
The pitch size of the contacts is 2 mm.
This model features 12 male brass contacts.
The housing is made of fibreglass reinforced polymer, which provides mechanical strength and heat resistance.
It uses a solder termination type for mounting.
This model is unshrouded, allowing for easy access to the contacts.
The orientation of this pin header is straight.
It is manufactured in Switzerland.
This model complies with the UL 94V-0 flammability standard, ensuring electrical safety.
It is suitable for industrial, electronic manufacturing, and PCB assembly applications.
