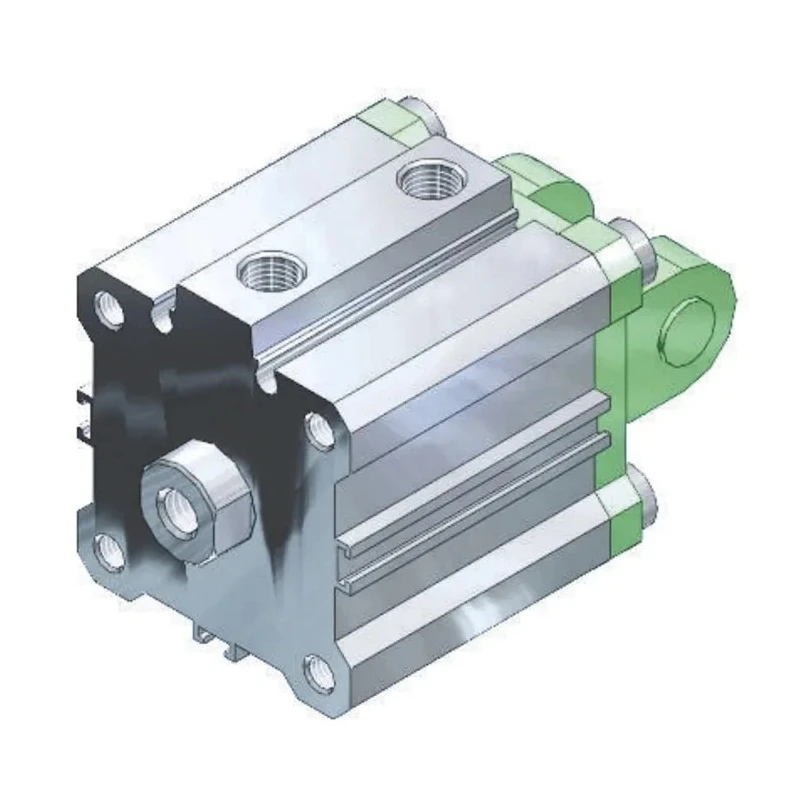

SMC Pneumatic Compact Cylinder 25mm Bore, 10mm Stroke, Double Acting Aluminium Alloy Body CDQSB25-10D
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1.5 Mpa |
| Height | 40mm |
| Length | 37.5mm |
| Model | CDQSB25-10D |
| Gross Weight | 107g |
| Width | 40mm |
| Mount Type | Through Hole |
| Series | CDQS |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 10mm |
| Bore Diameter | 25mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Piston Rod Gender | Female |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | 12 mm |
Key Features
- Compact aluminium alloy body ensures lightweight and durability.
- Through hole mount type for secure and versatile installation.
- Maximum operating pressure of 1.5 MPa supports reliable pneumatic control.
- Stroke length of 10mm with a piston rod thread size of 12 mm metric standard.
- Designed for operating temperatures from -10°C to 70°C for varied industrial applications.
- Single rod type with female piston rod gender for compatibility with accessories.
Product Description
SMC CDQSB25-10D Pneumatic Compact Cylinder is engineered for industrial pneumatic applications, featuring a 25mm bore diameter and a 10mm stroke length. The double acting mechanism provides smooth and controllable piston movement, suitable for automated systems requiring precision and reliability.
The aluminium alloy body ensures a lightweight structure while maintaining robust durability in demanding environments. The through hole mount type allows for flexible and secure mounting options to accommodate varied installation requirements.
This compact cylinder operates efficiently under a maximum pressure of 1.5 MPa, with a pneumatic piston speed capability up to 500mm/s. It supports operational temperature ranges from -10°C to 70°C, enabling its use across a wide span of industrial settings including manufacturing, automation, packaging, and machinery assembly.
The cylinder is designed with a single rod type and female piston rod gender, providing compatibility with metric threaded accessories. Dimensions of 37.5mm length by 40mm width and height ensure that it fits compact spaces where size and weight constraints are critical. With a gross weight of 107 grams, the unit is easy to handle and install.
Compact aluminium alloy construction for durability and weight savings. Double acting operation offers bidirectional power for precise control. Through hole mounting simplifies fixture integration. Supports high-speed piston movement up to 500mm/s.
Suitable for a broad temperature range and operating pressures. Metric thread size and female rod gender for accessory versatility. Lightweight and space-saving dimensions ideal for automation systems.
This pneumatic compact cylinder is widely used in industrial automation, mechanical machinery, automotive manufacturing, and fluid power systems. Its compact design makes it suitable for applications where installation space is limited but high performance is required.
Explore more quality pneumatic cylinders and actuators in the Industrial Tools & Equipment category at EnvMart for your fluid power and automation needs.
Explore more products in our Pneumatic Piston Rod Cylinders category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 1.5 MPa.
This unit has dimensions of 37.5mm in length, 40mm in width, and 40mm in height.
The stroke length of this model is 10mm.
The bore diameter of this compact cylinder is 25mm.
It is designed to operate within a temperature range of -10°C to 70°C.
This unit features a through hole mount type for secure installation.
The gross weight of this model is 107 grams.
This model operates as a double acting cylinder, allowing for bidirectional power.
The piston rod thread size is 12 mm, following the metric standard.
The body of this model is made from aluminium alloy, ensuring a lightweight structure.
It supports a pneumatic piston speed capability of up to 500mm/s.
This model features a single rod type with a female piston rod gender for compatibility with accessories.
