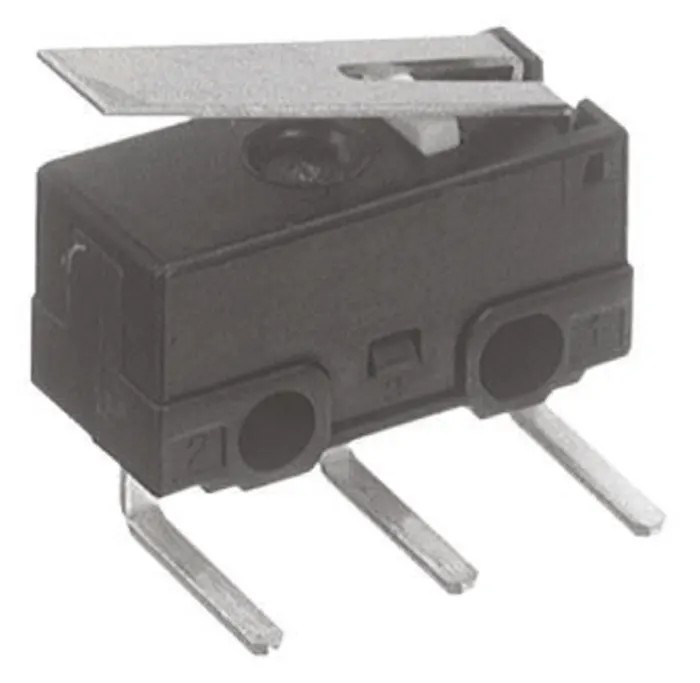

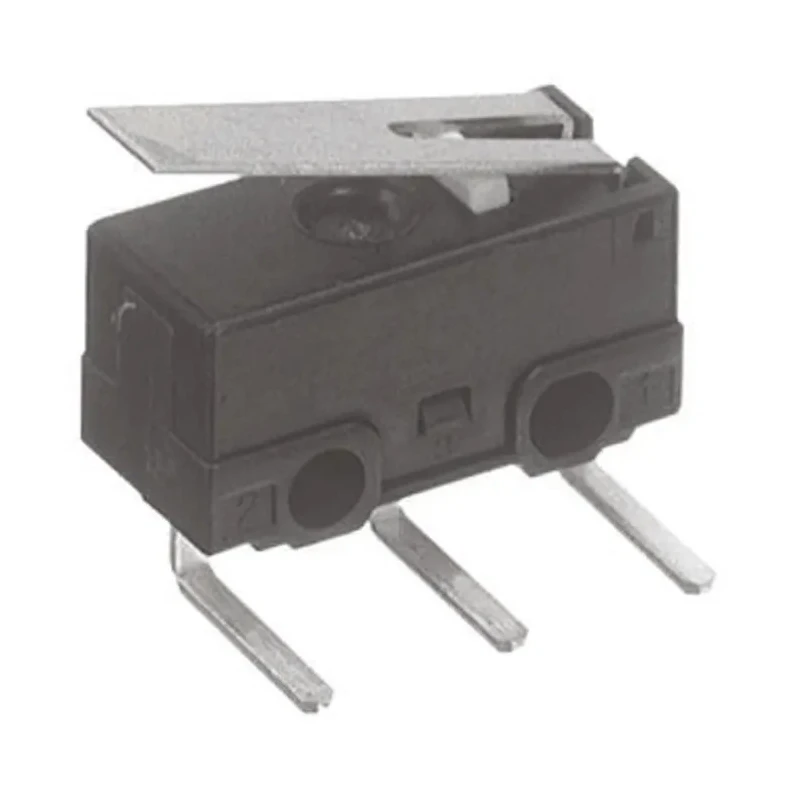

Panasonic Hinge Lever Ultra Miniature Micro Switch, Right Angle PCB Terminal, 2A, 125 V AC, 30 V DC AH1762-A
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Length | 12.8mm |
| Model | AH1762-A |
| Depth | 6mm |
| Series | AH1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | Right Angle PCB Terminal |
| Standards/Approvals | UR, RoHS, CSA |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 2A |
| Operating Force | 0.49N |
| Mechanical Life | 500000Operations |
| Contact AC Voltage | 125V ac |
| Microswitch Type | Ultra Miniature |
Key Features
- This microswitch employs a hinge lever actuator type for precise control.
- Compact dimensions of 12.8 mm length and 6 mm depth minimize equipment size.
- Switch contact configuration is SPCO, enabling single-pole changeover usage.
- Operating force is a low 0.49 N for sensitive actuation.
- Designed to endure 500,000 mechanical operations ensuring long service life.
- Suitable for operating temperatures ranging from -25°C to 85°C.
- Integrally moulded terminal block prevents soldering flux ingress.
- Compliant with UR, RoHS, and CSA standards ensuring quality and safety.
Product Description
Panasonic AH1762-A Hinge Lever Ultra Miniature Micro Switch is a compact and high-precision switch engineered for demanding electrical applications. Featuring a right angle PCB terminal and a hinge lever actuator, this microswitch offers reliable operation in tight spaces with dimensions of only 12.8 x 6 x 8.5 mm.
This component supports a maximum contact current of 2A and contact voltages of up to 125 V AC and 30 V DC. The SPCO contact configuration makes it versatile for switching scenarios requiring changeover capabilities. The low actuation force of 0.49 N allows for sensitive and accurate triggering.
Its robust mechanical life of 500,000 operations ensures durability in high-cycle industrial, automation, and electronic device applications. Designed for operation in temperature ranges from -25°C up to 85°C, it suits use in various environmental conditions.
The switch features an integrally moulded terminal block that prevents soldering flux from entering the housing, enhancing reliability in manufacturing. This microswitch complies with globally recognized standards including UR, RoHS, and CSA, underscoring its quality and safety credentials.
Typical industrial uses include integration in computer peripherals like mice, mobile phone charger units, automotive key position detectors, and other precision electronic controls. Its ultra-miniature profile enables installation in compact assemblies where space economy is critical.
This microswitch employs a hinge lever actuator type for precise control. Compact dimensions of 12.8 mm length and 6 mm depth minimize equipment size. Switch contact configuration is SPCO, enabling single-pole changeover usage.
Operating force is a low 0.49 N for sensitive actuation. Designed to endure 500,000 mechanical operations ensuring long service life. Suitable for operating temperatures ranging from -25°C to 85°C. Integrally moulded terminal block prevents soldering flux ingress.
Compliant with UR, RoHS, and CSA standards ensuring quality and safety. Explore a wide range of Micro Switches at EnvMart for your industrial automation and electronics assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current for this micro switch is 2A.
This model supports contact voltages of up to 125 V AC and 30 V DC.
It is suitable for operating temperatures ranging from -25°C to 85°C.
The operating force required for actuation is a low 0.49 N.
This micro switch is designed to endure up to 500,000 mechanical operations.
It employs a hinge lever actuator type for precise control.
The switch has a single-pole changeover (SPCO) contact configuration.
The dimensions are 12.8 mm in length, 6 mm in depth, and 8.5 mm in height.
It features a right angle PCB terminal.
It complies with UR, RoHS, and CSA standards.
Typical applications include integration in computer peripherals, mobile phone charger units, and automotive key position detectors.
The country of origin for this micro switch is Thailand.
