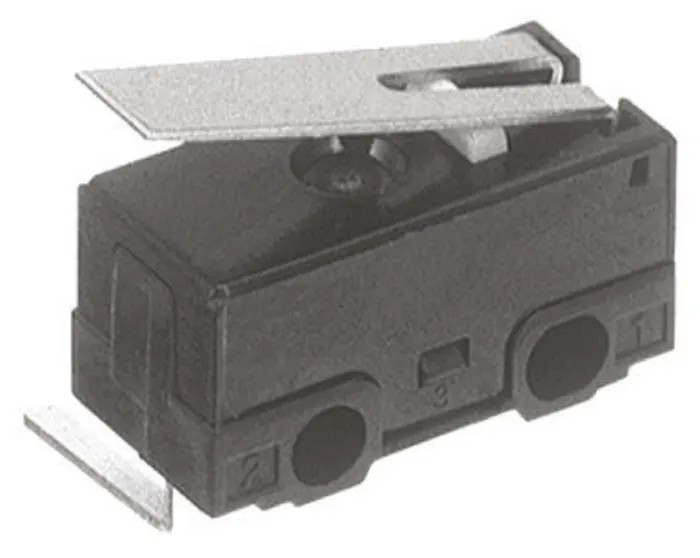

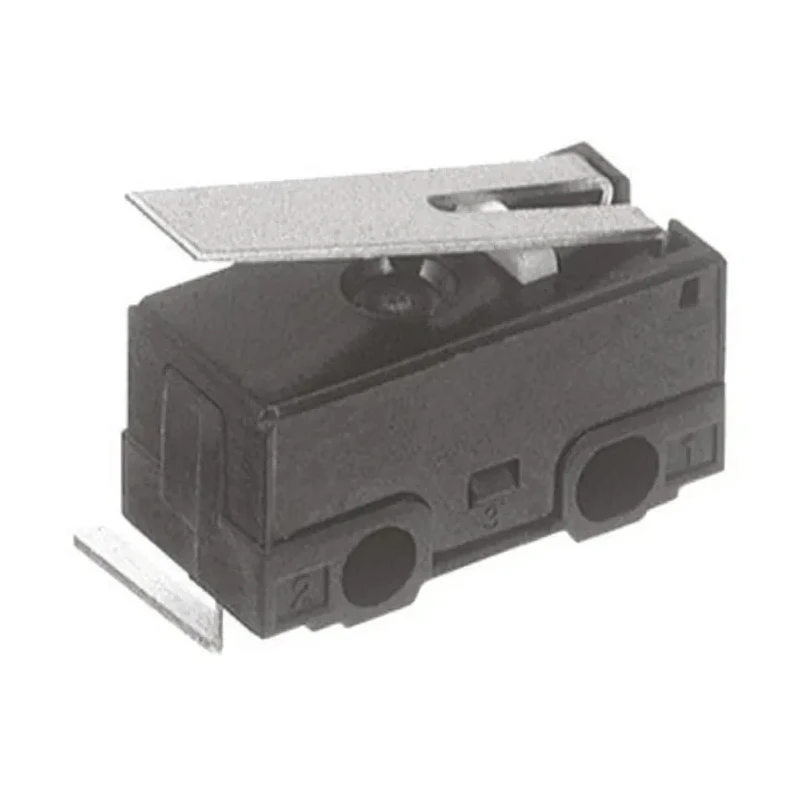

Panasonic Hinge Lever Micro Switch Left Angle PCB Terminal 2A 125V AC 30V DC SPCO AH1862-A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Length | 8.5mm |
| Model | AH1862-A |
| Depth | 6mm |
| Width | 12.8mm |
| Series | AH1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | Left Angle PCB Terminal |
| Standards/Approvals | CSA, RoHS, UR |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 2A |
| Operating Force | 0.49N |
| Mechanical Life | 500000Operations |
| Contact AC Voltage | 125V ac |
| Microswitch Type | Ultra Miniature |
Key Features
- This ultra-miniature micro switch offers high precision and durability.
- The compact dimensions of 12.8 x 6 x 8.5 mm enable use in small equipment.
- It features a hinge lever actuator type for precise actuation.
- Operating force is 0.49 N, making it easy to operate.
- Designed for temperature range from -25°C to 85°C, suitable for diverse environments.
- Mechanical life of 500,000 operations ensures long-lasting performance.
- Complies with CSA, RoHS, and UR standards for quality assurance.
- Ideal for applications like computer mice, mobile phone chargers, and automobile key position detection.
Product Description
Panasonic AH1862-A is an ultra-miniature hinge lever micro switch designed with a left angle PCB terminal configuration. Rated for a 2A switch contact current, it supports 125 V AC and 30 V DC voltage operation, making it suitable for electrical, automation, and electronic applications.
The switch measures 12.8 mm width, 6 mm depth, and 8.5 mm length, providing a compact footprint ideal for space-constrained equipment such as computer peripherals, charging units for mobile devices, and automotive key position detectors.
Its hinge lever actuator ensures precise engagement with an operating force of 0.49N, delivering consistent and reliable switching action. Operating temperature range from -25°C to 85°C expands its usability across indoor and moderate industrial environments.
The micro switch guarantees a mechanical life of 500,000 operations, ensuring durability over prolonged usage cycles. Compliance with CSA, RoHS, and UR standards affirms its quality and environmental safety.
The integrally moulded terminal block design prevents soldering flux from entering the housing, enhancing reliability. The flat terminal shape facilitates easy soldering on printed circuit boards (PCBs), improving manufacturing efficiency.
This ultra-miniature micro switch offers high precision and durability. The compact dimensions of 12.8 x 6 x 8.5 mm enable use in small equipment. It features a hinge lever actuator type for precise actuation. Operating force is 0.49 N, making it easy to operate.
Designed for temperature range from -25°C to 85°C, suitable for diverse environments. Mechanical life of 500,000 operations ensures long-lasting performance. Complies with CSA, RoHS, and UR standards for quality assurance.
Ideal for applications like computer mice, mobile phone chargers, and automobile key position detection. The integrally moulded terminal block prevents soldering flux ingress. Flat terminal shape allows easy soldering on PCBs.
This micro switch is highly applicable for industrial automation, electronic devices, consumer electronics, communication systems, automotive sensors, and control devices. Explore more Micro Switches and related components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The micro switch measures 12.8 mm in width, 6 mm in depth, and 8.5 mm in length.
It operates within a temperature range of -25°C to 85°C.
This model features a Single Pole, Single Throw (SPCO) contact configuration.
The mechanical life of this micro switch is rated at 500,000 operations.
The operating force for this switch is 0.49 N, making it easy to operate.
It supports a contact DC voltage of 30V and an AC voltage of 125V.
This model uses a hinge lever actuator type for precise actuation.
It complies with CSA, RoHS, and UR standards for quality assurance.
The terminal type is a left angle PCB terminal, facilitating easy soldering on printed circuit boards.
It is suitable for applications such as computer mice, mobile phone chargers, and automobile key position detection.
This model belongs to the AH1 series of micro switches.
The country of origin for this micro switch is India.
