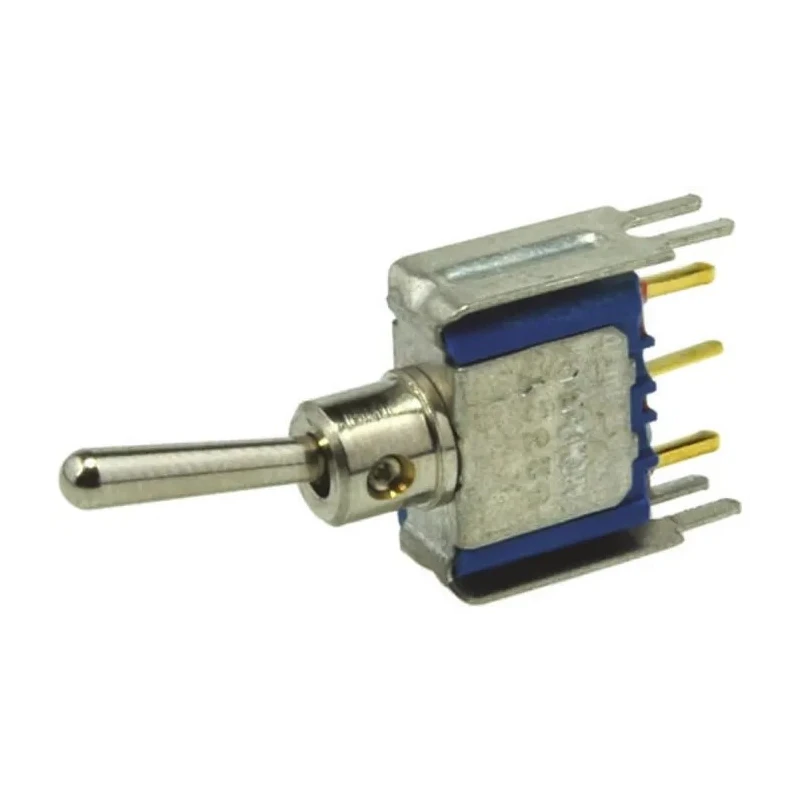

APEM Toggle Switch PCB Mount On-On SPST 24 V DC 250 V AC 5236YCDB
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 36mm |
| Length | 14mm |
| Model | 5236YCDB |
| Width | 12mm |
| Mount Type | PCB |
| Series | 5000 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 6.5 mm |
| Terminal type | PC Terminal |
| Standards/Approvals | CECC, CSA, NFVDE, RoHS, UL |
| Switch Operation | On-On |
| Actuator Length | 13.5mm |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 400mA |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Nickel Plated Brass |
Key Features
- Single Pole Single Throw (SPST) contact configuration for straightforward switching tasks.
- PCB mount type with PC terminal for easy integration onto printed circuit boards.
- Supports contact voltages of 24 V DC and 250 V AC for versatile usage.
- Actuator crafted from nickel plated brass measuring 13.5 mm in length.
- Compact size with dimensions 36 mm height, 14 mm length, and 12 mm width.
- Reliable mechanical life rated at 100,000 operations ensuring durability.
- Operates within temperature range from -40°C to 85°C suitable for various environments.
- Complies with CECC, CSA, NFVDE, RoHS, and UL standards for quality and safety.
Product Description
APEM 5236YCDB Toggle Switch is a durable and compact PCB mount On-On SPST switch suitable for electrical, automation, and industrial control applications. Designed to operate at 24 V DC and 250 V AC, this switch ensures reliable contact operation with a 400 mA maximum current rating.
The actuator is made from nickel plated brass and measures 13.5 mm in length, providing a sturdy handle for manual operation. Its compact dimensions (36 mm height, 14 mm length, and 12 mm width) enable seamless integration into tight PCB layouts. The switch offers a mechanical life expectancy of 100,000 operations, guaranteeing long-term performance.
Engineered to withstand demanding environments, it functions effectively from -40°C up to 85°C. The toggle switch is not illuminated, making it ideal for applications where illumination is not required. It features a PC terminal type for reliable PCB mounting and easy soldering.
This switch adheres to recognized international standards, including CECC, CSA, NFVDE, RoHS, and UL, assuring compliance with safety and environmental regulations. Manufactured in France, it represents quality European engineering.
Single Pole Single Throw (SPST) contact configuration. On-On switch operation for toggle functionality. Supports DC voltage of 24 V and AC voltage of 250 V. Nickel plated brass actuator material ensures robustness. Mechanical life of 100,000 operations for extended reliability.
Operating temperature range from -40°C to 85°C. Compact size with 36 mm x 14 mm x 12 mm dimensions. PC terminal for PCB mounting applications. Meets CECC, CSA, NFVDE, RoHS, and UL standards.
APEM toggle switches are widely used in various industrial and electrical systems including automation controls, instrumentation panels, and consumer electronics. Their compact form factor and robust construction make them suited for environments that demand reliable manual switching interfaces.
Explore more quality Toggle Switches and electrical components at EnvMart for your technical projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Single Throw (SPST) contact configuration, suitable for straightforward switching tasks.
The switch has compact dimensions of 36 mm in height, 14 mm in length, and 12 mm in width.
It can operate effectively within a temperature range from -40°C to 85°C.
It supports a contact voltage of 24 V DC and 250 V AC, making it versatile for various applications.
The mechanical life is rated at 100,000 operations, ensuring long-term performance.
It features a PCB mount type with a PC terminal, allowing for easy integration onto printed circuit boards.
The actuator is crafted from nickel plated brass, providing a sturdy handle for manual operation.
This model has a maximum contact current rating of 400 mA.
It complies with CECC, CSA, NFVDE, RoHS, and UL standards for quality and safety.
It features an On-On switch operation for toggle functionality.
The required panel cutout size for this switch is 6.5 mm.
This model is manufactured in France, representing quality European engineering.
