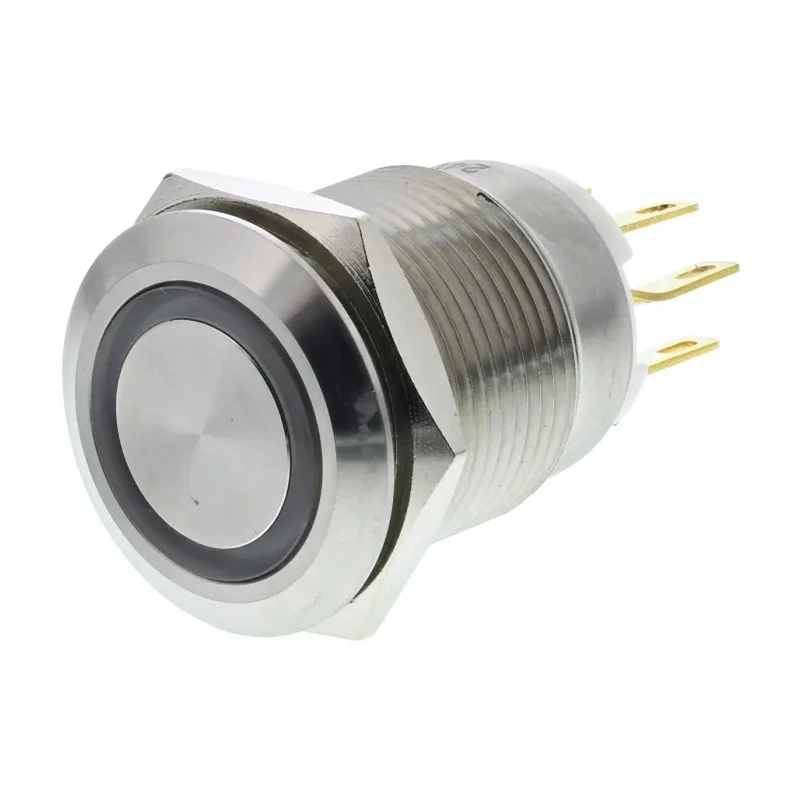

EOZ R Series Illuminated Momentary Push Button Switch, Panel Mount, 19.2 mm Cutout, SPDT, Red LED, IP65, 250 R19FFSSPAGRR24

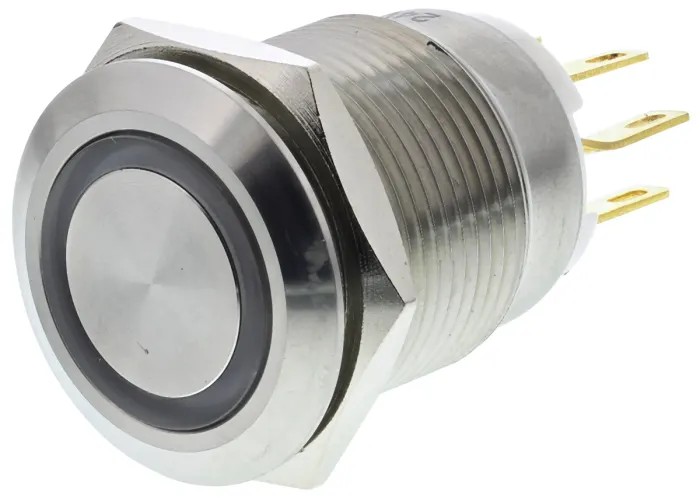

EOZ R19FFSSPAGRR24 is an illuminated push button switch designed for momentary contact applications with a panel mount and 19.2 mm cutout. It features a silver actuator button and a red LED illumination for clear user indication under industrial and commercial use.

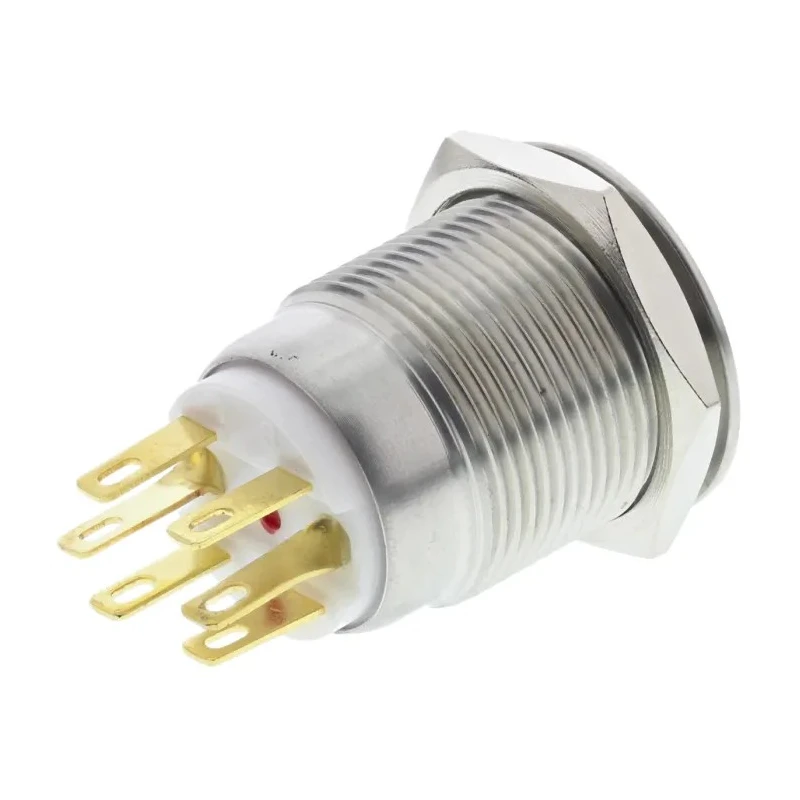

This robust switch supports a single-pole double-throw (SPDT) contact configuration with one normally open and one normally closed contact, enabling flexible electrical control functions. It incorporates solder-type terminals for secure and reliable electrical connections.

Constructed to be vandal resistant, the push button provides impact protection rated at IK09, capable of withstanding impacts equivalent to 10 joules. The IP65 ingress protection rating ensures it is dust-tight and protected against low pressure water jets from any direction, making it suitable for exposed or harsh environments.

The device operates reliably within a temperature range from -20°C to 55°C, making it adaptable for various industrial and commercial temperature conditions. The switch supports an AC contact voltage of 250 V and a contact current of 5 A, aligning with requirements for control and automation systems.

Compliant with RoHS directives, the switch meets environmental standards for hazardous substance restrictions. Made in France, this push button switch is ideally suited for use in access control systems, machinery, factory equipment, ticket machines, kiosks, vending machines, and other public-facing or industrial applications where robust, illuminated push-button controls are required.

The switch features a silver actuator button for ease of use. Designed as a vandal resistant push button with robust impact resistance (IK09 rating). The device supports 1 NO/1 NC switch configuration suitable for various control applications.

Constructed for panel mounting with a solder terminal type to ensure secure connections. Illumination is provided by a red LED for clear operational indication. Rated for an operating temperature range from -20°C to 55°C to withstand industrial environments.

The switch is sealed to IP65 standard, offering protection against dust and low pressure water jets. Contact current rating is 5 A AC, supporting reliable switching performance under load. Manufactured in France and compliant with RoHS standards ensuring restricted hazardous substance use.

Ideal for applications including access control, machinery, factory equipment, and public kiosk systems. Explore more high-quality Push Button Switches and industrial control components in the Electronics & Electricals category at EnvMart.
