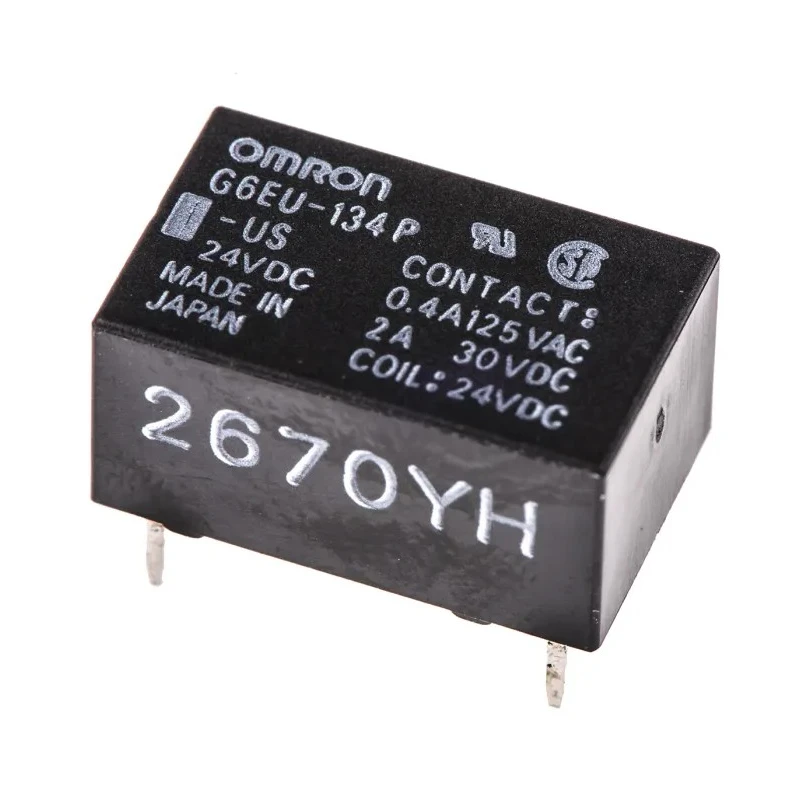

Omron PCB Signal Relay with 24V DC Coil, 3A Switching Current, SPDT Contact Configuration G6EU-134P-US 24DC
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 8mm |
| Length | 16mm |
| Model | G6EU-134P-US 24DC |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G6E |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 2880Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
| Switching Power | 60W |
| Omron PCB Mount Latching Relay, 24V dc Coil, 3A Switching Current, SPDTBrand | Omron |
Key Features
- Designed for PCB mounting with a solder terminal type for secure installation.
- Compact dimensions sized at 16mm length, 10mm width, and 8mm height.
- Rated for switching AC voltage up to 250V and DC voltage up to 220V.
- Gold-plated contacts ensure high reliability and low contact resistance of 50mΩ.
- Operates efficiently with a coil power consumption of 200mW and coil resistance of 2880Ω.
- Wide operating temperature range from -40°C to 70°C for versatile industrial use.
- Fully sealed construction allows immersion cleaning of PCBs without damage.
- Approved under RoHS standards, ensuring environmental compliance.
Product Description
Omron G6EU-134P-US 24DC PCB Signal Relay features a 24V DC coil and 3A switching current with SPDT contact configuration, ideal for electronic circuit control applications requiring compact size and precise operation.
This relay is part of the G6E series designed for PCB mounting with solder terminals, ensuring easy integration into circuit boards and reliable electrical connections. The gold-plated contacts provide excellent conductivity and corrosion resistance, maintaining low contact resistance of 50mΩ to guarantee efficient switching.
Its fully sealed subminiature design allows immersion cleaning of PCBs, enhancing durability and maintenance ease in industrial environments.
Operating efficiently between -40°C and 70°C, this relay supports a wide range of temperature conditions commonly encountered in industrial, automation, HVAC, manufacturing, and laboratory equipment.
The relay meets RoHS environmental standards and complies with FCC Part 68 impulse withstand voltage requirements, supporting robust signal relay performance and safety.
Key specifications include a coil resistance of 2880Ω, coil power consumption of 200mW, and compact dimensions (16mm length, 10mm width, 8mm height), making it suitable for dense PCB configurations.
Manufactured in Japan, the Omron G6EU-134P-US 24DC maintains high-quality standards consistent with industrial applications requiring precision and reliability. Designed for PCB mounting with solder terminal type. Compact subminiature relay dimensions.
24V DC coil voltage with 3A switching current rating. Gold-plated contacts with low resistance for reliable switching. Wide operating temperature range (-40°C to 70°C). Fully sealed construction allows immersion cleaning of PCBs.
RoHS compliant and meets FCC Part 68 impulse voltage standards. Manufactured in Japan ensuring premium quality. Explore more Signal Relays and other high-quality electronic components on EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 3A.
This model has compact dimensions of 16mm in length, 10mm in width, and 8mm in height.
The coil voltage for this relay is 24V DC.
It can switch AC voltage up to 250V and DC voltage up to 220V.
The relay features an SPDT (Single Pole Double Throw) contact configuration.
The contact resistance is rated at 50mΩ, ensuring efficient switching.
It operates efficiently within a temperature range of -40°C to 70°C.
The coil resistance is 2880Ω.
The coil power consumption is 200mW.
Yes, this relay is approved under RoHS standards, ensuring environmental compliance.
It uses a solder terminal type for secure PCB mounting.
This relay is manufactured in Japan.
