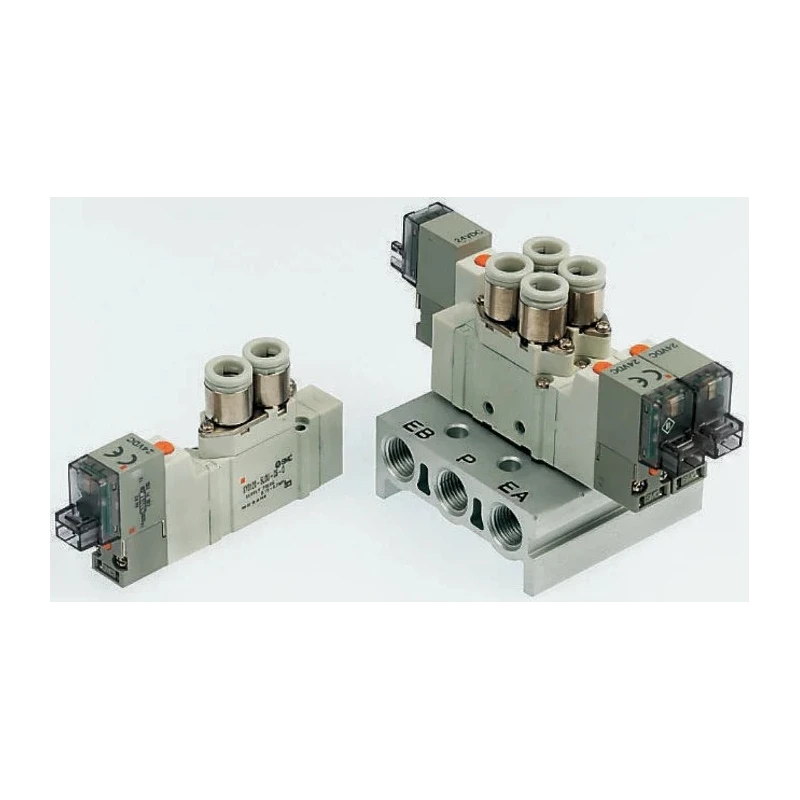

SMC Pneumatic Solenoid Valve 5/2 Solenoid G 1/8 Port Size Double Solenoid 12V DC SY5220-6LOZ-01F-F2-Q

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 5/2 Solenoid G 1/8 Port Size Double Solenoid 12V DC SY5220-6LOZ-01F-F2-Q



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	India
Voltage	12V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Model	SY5220-6LOZ-01F-F2-Q
Mount Type	Stand Alone
Series	SY
Number Of Ports	5
Maximum Operating Temperature	50°C
Port Type	One-Touch Fitting
Number of Positions	2
Port Size	1/8 in
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	579NL/min
Standards/Approvals	RoHS
Connection Thread Standard	G 1/8
Minimum Pilot Pressure	0.15MPa
Valve Function	5/2
Solenoid Type	Double
Solenoid Power Consumption	0.4W

Key Features

The valve features a 5-port, 2-position configuration for versatile pneumatic applications.
Port size is G 1/8 with one-touch fitting for easy installation and maintenance.
Constructed with die cast aluminium body and rubber seals for durability and effective sealing.
Operates at a maximum pressure of 0.7 MPa with a maximum flow rate of 579 NL/min for efficient fluid control.
Rated for a voltage of 12V DC with a solenoid power consumption of 0.4W ensuring energy efficiency.
Designed to function reliably in operating temperatures from -10°C to 50°C with a minimum pilot pressure of 0.15MPa.
Non-locking manual override is included for manual control when necessary.
Complies with RoHS standards ensuring environmental safety and quality assurance.

Product Description

SMC SY5220-6LOZ-01F-F2-Q Pneumatic Solenoid Valve 5/2 Solenoid G 1/8 Port Size Double Solenoid 12V DC is engineered for precise and efficient pneumatic control in industrial applications.

This valve belongs to the SY series, known for low power consumption which allows direct operation by PLC systems. Its compact die cast aluminium body combined with durable rubber seals ensures long-lasting performance under demanding conditions.

The 5-port and 2-position valve structure facilitates effective air flow control with a maximum operating pressure of 0.7 MPa and a high flow rate of 579 NL/min. The valve operates within temperature ranges from -10°C to 50°C, making it suitable for various industrial environments.

Installation is simplified with G 1/8 standard thread and one-touch fittings, supporting quick connections and maintenance. The valve features a double solenoid actuation type powered at 12V DC and consumes 0.4W, offering energy efficiency and reliable operation.

Additional features include a non-locking manual override for manual actuation during testing or emergency, and it complies with RoHS standards, affirming its environmental compliance.

This valve is widely used across industrial, manufacturing, automation, and fluid power systems requiring precise pneumatic control. It is compatible with manifold systems and standalone applications.

The valve supports 5-port, 2-position functionality for versatile pneumatic control. Operates with a pilot pressure range from 0.15MPa minimum to 0.7MPa maximum. Body is constructed of die cast aluminium and uses rubber seal material for leak-tight operation.

Certified RoHS compliant, ensuring adherence to environmental and safety standards. Equipped with indicator light and surge voltage suppressor to enhance operational safety. Discover more solutions in the Pneumatic Solenoid Valves category on EnvMart for your industrial automation needs.
