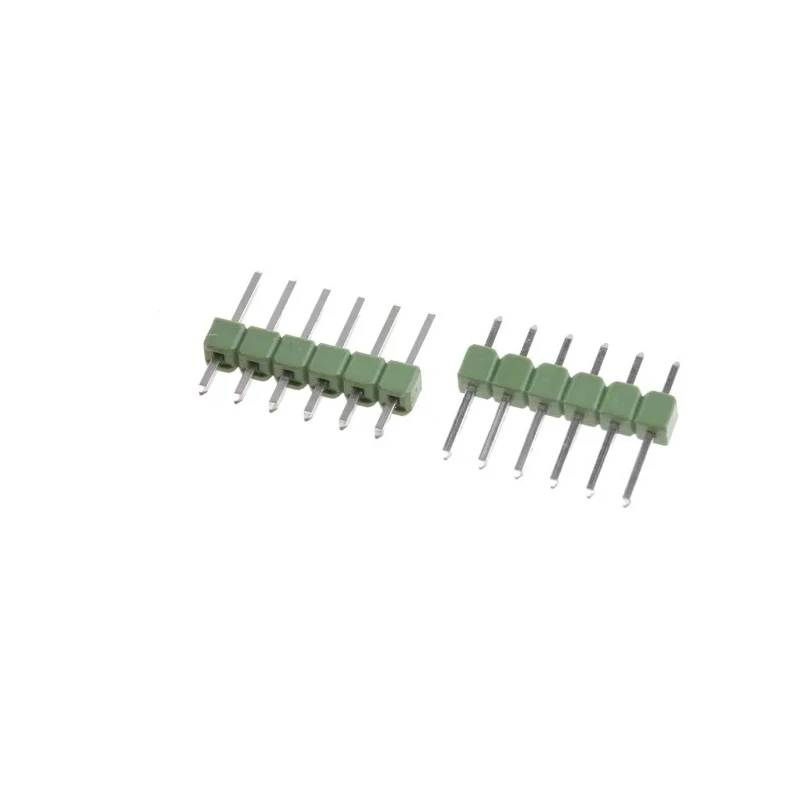

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 6 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 826936-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 826936-6 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 5.8mm |
Key Features
- Pin header with six contacts ensuring reliable electrical connections.
- 2.54 mm pitch spacing for standard PCB compatibility.
- Single-row unshrouded straight through hole mounting type.
- Contact material is phosphor bronze with tin plating for durability.
- Operates reliably between -65°C to 105°C temperature range.
- Rated for current up to 3 A and voltage up to 750 V.
- Tail pin length of 3.2 mm and mating pin length of 5.8 mm.
- Uses Polybutylene Terephthalate housing material for mechanical strength.
Product Description
TE Connectivity 826936-6 AMPMODU MOD II Series Straight Through Hole Pin Header is a high-quality, versatile connector designed for reliable electrical connections in various industrial and commercial PCB applications. This pin header features 6 male contacts arranged in a single row with a 2.54 mm centerline pitch, making it ideal for standard footprint PCBs.
The housing is made of durable Polybutylene Terephthalate, providing mechanical and thermal robustness. The contact pins are constructed from phosphor bronze and plated with tin to ensure excellent conductivity and corrosion resistance. With a current rating of 3 A and voltage capacity up to 750 V, it meets demanding operational requirements in automotive, telecommunications, industrial automation, and electronic equipment.
The unshrouded, straight orientation with through-hole mount facilitates easy soldering and mechanical stability on the PCB. Its operating temperature range from -65°C to 105°C ensures resilience in harsh environments. The AMPMODU MOD II series is known for facile breakaway functionality, allowing size customization to suit specific design needs efficiently.
This connector is widely used across applications such as automotive controls, industrial machinery, test equipment, computer hardware, telecommunications devices, medical instruments, and storage equipment, making it a reliable choice for both prototype development and mass production.
Pin header with six contacts ensuring reliable electrical connections. 2.54 mm pitch spacing for standard PCB compatibility. Single-row unshrouded straight through hole mounting type. Contact material is phosphor bronze with tin plating for durability.
Operates reliably between -65°C to 105°C temperature range. Rated for current up to 3 A and voltage up to 750 V. Tail pin length of 3.2 mm and mating pin length of 5.8 mm. Uses Polybutylene Terephthalate housing material for mechanical strength.
Suitable for board-to-board and wire-to-board connector systems.
The AMPMODU Interconnect System is a trusted signal standard providing reliable and economical solutions for automation and control systems. Choose TE Connectivity AMPMODU MOD II pin headers for assured performance and quality in demanding electronic designs.
Explore more products in the PCB Pin Header category at EnvMart to find compatible connectors and accessories for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header features a pitch of 2.54 mm, making it compatible with standard PCB layouts.
It is rated for a maximum current of 3 A, suitable for various applications requiring reliable electrical connections.
The pin header can handle voltages up to 750 V, providing versatility for different electronic applications.
The contacts are made from phosphor bronze and are plated with tin, ensuring good conductivity and corrosion resistance.
This model operates reliably within a temperature range of -65°C to 105°C, making it suitable for harsh environments.
It features a total of 6 male contacts arranged in a single row.
The tail pin length is 3.2 mm, facilitating easy soldering onto PCBs.
This model uses a through-hole mounting type, allowing for stable installation on PCBs.
The housing is made from Polybutylene Terephthalate, which provides mechanical strength and thermal robustness.
It is an unshrouded pin header, designed for straightforward soldering and mechanical stability.
This pin header supports both board-to-board and wire-to-board connector systems, enhancing its versatility in applications.
It belongs to the AMPMODU MOD II series, known for its reliable electrical connections in various applications.
