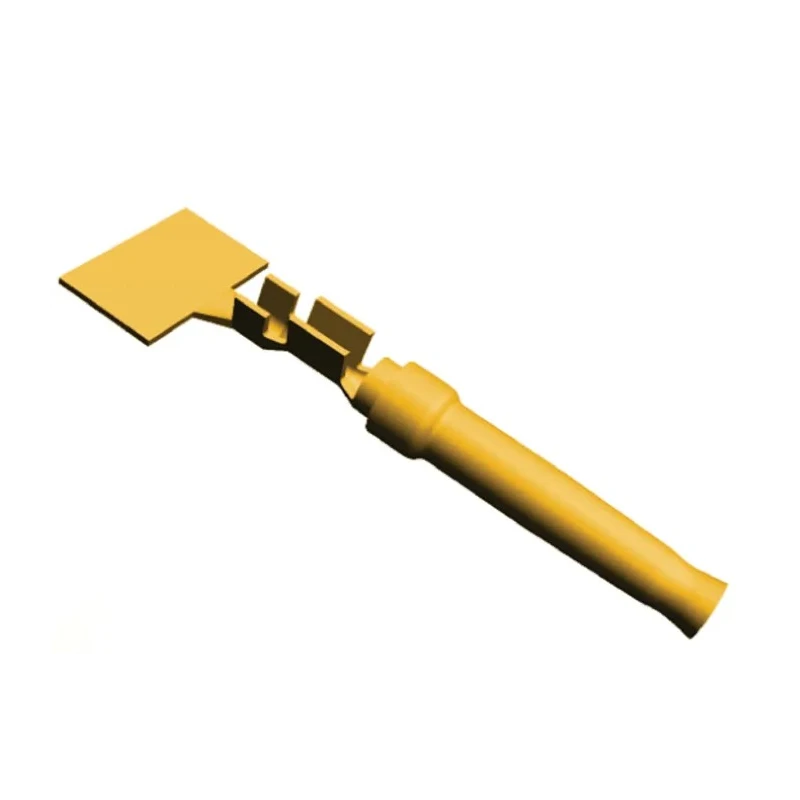

TE Connectivity AMPLIMITE HDP-20 Series Size 20 Female Crimp D-Sub Connector Contact Gold over Nickel 24 AWG 66505-9
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 2A |
| Length | 14.35mm |
| Model | 66505-9 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HDP-20 |
| Termination Type | Crimp |
| Contact Type | Signal |
| Contact Plating | Gold over Nickel |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 24AWG |
| Contact Size | 20 |
| Maximum Contact Resistance | 15mΩ |
| • Pin diameter | 0.04 (1.02) |
Key Features
- Constructed with phosphor bronze contact material ensuring durable conductivity.
- Features gold over nickel plating for enhanced corrosion resistance and signal integrity.
- Designed for 24 AWG wire size with crimp termination for secure connections.
- Contact length measures 14.35 mm with a pin diameter of 1.02 mm (0.04 inches).
- Maximum contact resistance rated at 15 milliohms for reliable electrical performance.
- Rated for current of 2 amps ensuring sufficient capacity for typical signal transmission.
- Compatible with AMPLIMITE HDP-20 D-Sub connector system for easy integration.
- Includes female gender contact for correct mating in D-Sub connectors.
Product Description
TE Connectivity 66505-9 is a female crimp contact for the AMPLIMITE HDP-20 series D-Sub connector system designed for signal transmission applications. It features size 20 contacts with excellent electrical characteristics suitable for precise and reliable connectivity in electronic and electrical assemblies.
The contact material is high-quality phosphor bronze, providing strength and optimized conductivity. The contact is plated with gold over nickel to offer improved corrosion resistance and maintain low contact resistance over time. This plating ensures minimal signal loss and high durability in industrial environments.
The contact termination type is crimp, supporting a wire size range from 28 AWG to 24 AWG (0.08 mm² to 0.2 mm²), enabling a firm mechanical and electrical connection for signal wires rated at 2 amps. The contact length is 14.35 mm, and the pin diameter is precisely 1.02 mm (0.04 inches), conforming to the AMPLIMITE HDP-20 standards.
Key features include a maximum contact resistance of 15 milliohms and design compatibility with the AMPLIMITE HDP-20 series to ensure seamless mating with other connector components. These contacts are suitable for use in various industrial, manufacturing, and electronic equipment applications requiring reliable D-Sub Connector Contacts for signal wiring.
Constructed from phosphor bronze for durability and conductivity. Gold over nickel plating for long-lasting corrosion and wear resistance. Designed for crimp termination on 24 AWG wires. Size 20 contact with a length of 14.35 mm and pin diameter of 1.02 mm.
Maximum contact resistance of 15 milliohms for stable signal transmission. Compatible with AMPLIMITE HDP-20 series connectors. Rated for 2 amp current carrying capacity. Female contact gender designed for D-Sub connectors.
This product supports industrial, electronic manufacturing, and communication equipment assembly applications. It is ideal for engineers and technicians requiring precision crimp contacts for AMPLIMITE HDP-20 D-Sub connectors.
Explore related electronic components and connectors on EnvMart for comprehensive sourcing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector contact is rated for a maximum current of 2 amps, suitable for typical signal transmission applications.
The contact length measures 14.35 mm, and the pin diameter is 1.02 mm (0.04 inches).
This crimp contact is designed for wire sizes ranging from 28 AWG to 24 AWG, accommodating a minimum wire size of 0.08 mm² and a maximum of 0.2 mm².
The contact is constructed from phosphor bronze, which provides strength and optimized conductivity.
It features gold over nickel plating, which enhances corrosion resistance and maintains low contact resistance over time.
The maximum contact resistance is rated at 15 milliohms, ensuring reliable electrical performance.
Yes, this model is compatible with the AMPLIMITE HDP-20 D-Sub connector system, allowing for easy integration.
This contact utilizes a crimp termination type, providing a secure connection for the wire.
This contact is suitable for various industrial, manufacturing, and electronic equipment applications requiring reliable D-Sub connector contacts for signal wiring.
This connector contact is female, designed for correct mating in D-Sub connectors.
The country of origin for this product is India.
This connector contact belongs to the AMPLIMITE HDP-20 series, which is designed for signal transmission applications.
