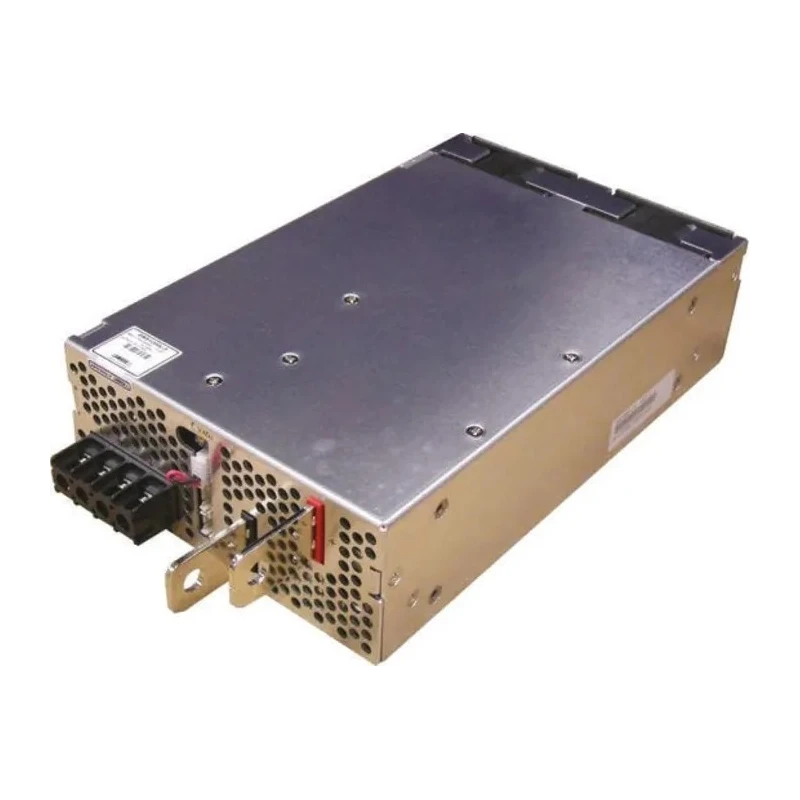

TDK-Lambda Switching Power Supply Chassis Mount 12V dc Output 1 kW Power SWS1000L-12

Free Delivery in India | Lowest Global Shipping Charges

TDK-Lambda Switching Power Supply Chassis Mount 12V dc Output 1 kW Power SWS1000L-12

Name: TDK-Lambda Switching Power Supply Chassis Mount 12V dc Output 1 kW Power SWS1000L-12
Brand: TDK-Lambda
SKU: 126194



Category Switching Power Supplies Brand TDK-Lambda Condition New

Specifications

Country of Origin	India
Brand	TDK-Lambda
Power	1kW
Efficiency	90%
Length	9.45in
Model	SWS1000L-12
Depth	2.4in
Gross Weight	2.3kg
Width	2.4in
Mount Type	Chassis
Series	SWS1000L
Maximum Operating Temperature	74°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	350, 265V dc
Maximum Output Voltage	12V dc
SMPS Output Current	88A
Minimum Input Voltage	85V ac

Key Features

Delivers single output with 12V dc maximum output voltage.
Supports high output current of 88A for demanding applications.
Features a quiet temperature-controlled fan ensuring efficient cooling.
Operating temperature range extends from -20°C to 74°C for versatile environments.
Compact dimensions with 9.45in length, 2.4in width, and 2.4in depth for space-saving installation.
Achieves high efficiency of up to 90% to reduce power loss.
Equipped with comprehensive over current, voltage, and temperature protections.
Meets numerous EMC and safety standards including CE, FCC Class B, and IEC/UL/CSA approvals.

Product Description

TDK-Lambda SWS1000L-12 Switching Power Supply is a high-performance chassis mount unit delivering a reliable 12V dc output at 1 kW power, engineered for industrial and electronic applications requiring stable power delivery.

This power supply operates from a universal input voltage ranging from 85V ac minimum up to 350V dc maximum, supporting both AC and DC inputs for installation flexibility. It is optimized for continuous operation within an ambient temperature range from -20°C low to 74°C maximum, aided by a quiet temperature-controlled fan ensuring thermal management without excessive noise.

The compact form factor measures approximately 9.45 inches in length, 2.4 inches in width, and 2.4 inches in depth, enabling easy integration into constrained chassis or control panels. Weighing 2.3 kg, it provides a robust build quality suitable for demanding industrial environments.

With single output delivering 12V dc at up to 88A, it can supply power efficiently with up to 90% conversion efficiency, minimizing energy loss. The unit features active power factor correction compliant with EN61000-3-2 Class A, enhancing power line quality and reducing harmonic distortion.

Single 12V dc output with maximum 88A current capacity. Universal input voltage range supporting 85V ac to 350V dc operation. Over current, over voltage, and over temperature protections ensure device safety. Compliance with multiple EMC standards like EN 55011 and FCC Class B minimizes electromagnetic interference.

Certified to IEC/UL/CSA/EN 62368-1 and other medical and industrial safety standards. Active power factor correction for optimal electrical performance. Quiet fan cooling paired with low profile chassis mount design. Suitable for power supply demands across electronic components and industrial automation.

This power supply is ideal for use in electronic manufacturing, test and measurement, laboratory equipment, industrial automation, and other commercial applications requiring consistent DC power. Its robust standards compliance and protective features protect both the power supply and connected loads from electrical faults.
