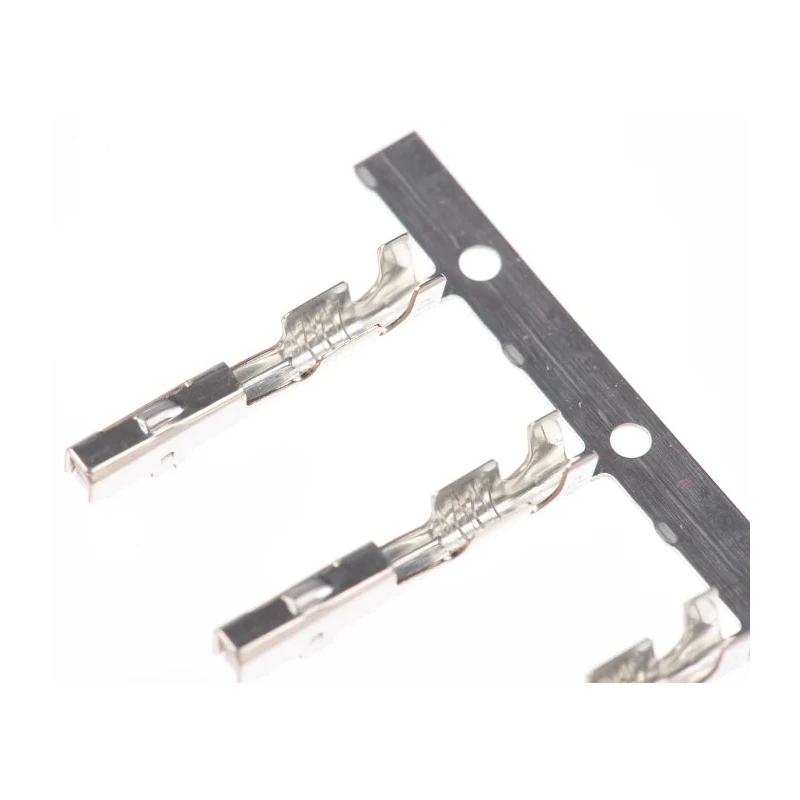

TE Connectivity MULTILOCK 040 II Series Female Crimp Terminal, 22 AWG Min Crimp, 18 AWG Max 175265-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 - 105 °C |
| Length | 13.4mm |
| Model | 175265-1 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Current Rating | 15A |
| Series | MULTILOCK 040 II |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 0.04/0.07 Hybrid I/O Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.4mm² |
| Maximum Wire Size mm² | 0.9mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 20mΩ |
| Low level resistance | 10 mΩ max (initial) |
| Overall resistance | 20 mΩ max (final) |
Key Features
- Constructed from copper alloy for optimal conductivity and durability.
- Contact plating is tin, providing corrosion resistance and enhanced performance.
- Suitable for crimp termination with a snap-in fixing connector cavity.
- Operates reliably within a temperature range of -30°C to 105°C.
- Maximum contact resistance is 20 milliohms ensuring low electrical loss.
- Current rating of up to 15 amperes for robust electrical load handling.
- Designed specifically for MULTILOCK 0.04/0.07 hybrid I/O connector housings.
- Offers withstand voltage of up to 1 kVac for 1 minute ensuring insulation safety.
Product Description
TE Connectivity 175265-1 female crimp terminal from the MULTILOCK 040 II Series is a high-density, reliable electrical connector component engineered for precise wire-to-wire and wire-to-board connections. Designed for use with 22 AWG minimum and 18 AWG maximum wire sizes, this terminal ensures strong mechanical and electrical integrity in demanding industrial environments.
Manufactured from copper alloy and plated with tin, the terminal offers excellent conductivity and corrosion resistance, supporting current loads up to 15 amperes. The crimp termination style and snap-in fixing connector cavity simplify assembly and maintenance in automotive, manufacturing, and automation applications.
Operating temperature ranges from -30°C to 105°C, making it suitable for diverse environmental conditions. With low contact resistance of 20 milliohms maximum and an overall resistance rating ensuring minimal signal loss, it is optimized for efficient power and signal transmission.
The terminal fits MULTILOCK 0.04/0.07 hybrid I/O connector housings and withstands voltages up to 1 kVac for 1 minute, providing safety and reliability in electrical wiring systems.
Constructed from copper alloy for optimal conductivity and durability. Contact plating is tin, providing corrosion resistance and enhanced performance. Suitable for crimp termination with a snap-in fixing connector cavity.
Operates reliably within a temperature range of -30°C to 105°C. Maximum contact resistance is 20 milliohms ensuring low electrical loss. Length of the terminal is 13.4 mm facilitating compact connection footprint. Current rating of up to 15 amperes for robust electrical load handling.
Designed specifically for MULTILOCK 0.04/0.07 hybrid I/O connector housings. Offers withstand voltage of up to 1 kVac for 1 minute ensuring insulation safety. Ideal for automotive and industrial automation electrical wiring applications.
This component is well-suited for use in automotive wiring harnesses, industrial control systems, commercial electrical apparatus, and any setting requiring secure, low-resistance crimp connections. The MULTILOCK system's high density and compact size support space-saving designs without compromising performance.
Explore more TE Connectivity connectors and Crimp Contacts within the Electronics Components category on EnvMart for a comprehensive range of industrial-grade solutions to meet your electrical connection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates reliably within a temperature range of -30°C to 105°C.
The maximum current rating is 15 amperes, allowing it to handle robust electrical loads.
It is designed for use with wire sizes ranging from 22 AWG minimum to 18 AWG maximum.
The terminal is constructed from copper alloy, which provides optimal conductivity and durability.
This model uses a crimp termination style, which simplifies assembly and maintenance.
The length of the terminal is 13.4 mm, facilitating a compact connection footprint.
The maximum contact resistance is 20 milliohms, ensuring low electrical loss.
It is specifically designed for MULTILOCK 0.04/0.07 hybrid I/O connector housings.
The contact plating is tin, which provides corrosion resistance and enhanced performance.
The low level resistance is 10 milliohms maximum (initial).
It is well-suited for automotive wiring harnesses, industrial control systems, and commercial electrical apparatus.
The country of origin for this terminal is India.
