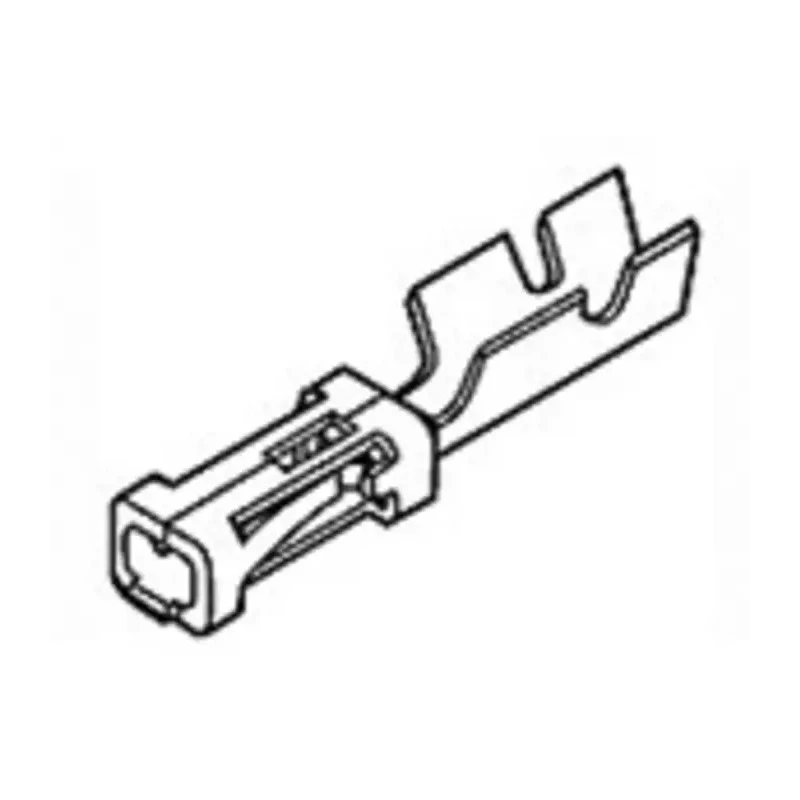

TE Connectivity AMPMODU MOD IV Series Female Crimp Terminal for 24 to 20 AWG Wire, Gold Plated Beryllium Copper 86016-5

TE Connectivity 86016-5 AMPMODU MOD IV Series Female Crimp Terminal is a high-quality crimp contact designed for use with the AMPMODU MOD IV connector housing. It supports wire sizes ranging from 24 AWG minimum to 20 AWG maximum, accommodating various wiring requirements in electronic circuits. The terminal is rated for a current of 3 amperes, suitable for low-power electronic applications.

Constructed from beryllium copper alloy, the contact material provides excellent electrical conductivity and mechanical strength. The gold plating on the contact surface enhances corrosion resistance and ensures a reliable, low-resistance electrical connection with a maximum contact resistance of 12 milliohms. This combination supports durable and stable electronic connections in demanding industrial environments.

The crimp termination type allows for secure mechanical and electrical attachment of wires to the contact. This terminal features a contact length of 11.94 mm, designed to fit precisely within Mod IV shells that mate with shrouded headers on standard 2.54 mm (0.1 inch) pitch connectors.

Operating temperature ranges from -65°C to 105°C, making it suitable for use in a broad spectrum of industrial, laboratory, manufacturing, and automation environments requiring reliable performance in temperature-variable conditions.

These female crimp terminals are part of TE Connectivity’s extensive AMPMODU™ range, widely used in electronic assemblies for wire-to-board connections, providing modular interconnect solutions with high performance and dependable contact integrity.

The contact is gold plated for enhanced conductivity and corrosion resistance. The material is beryllium copper alloy ensuring durability and performance. Supports wire sizes from 24 AWG minimum to 20 AWG maximum. Has a maximum contact resistance of 12 milliohms to ensure efficient electrical connection.

Operates reliably within a temperature range of -65°C to 105°C. The contact length measures 11.94 mm, fitting standard Mod IV shells. Termination is by crimp method to secure wire connections. Designed specifically as a female crimp terminal for modular interconnect systems.

The contact complies with no certifications or standards approvals specified. Ideal for reliable wire-to-board connections in electronic assemblies.

This product is essential for industrial electronics, telecommunications, computer boards, HVAC control panels, and various manufacturing automation applications where secure, reliable wire connections are critical.
