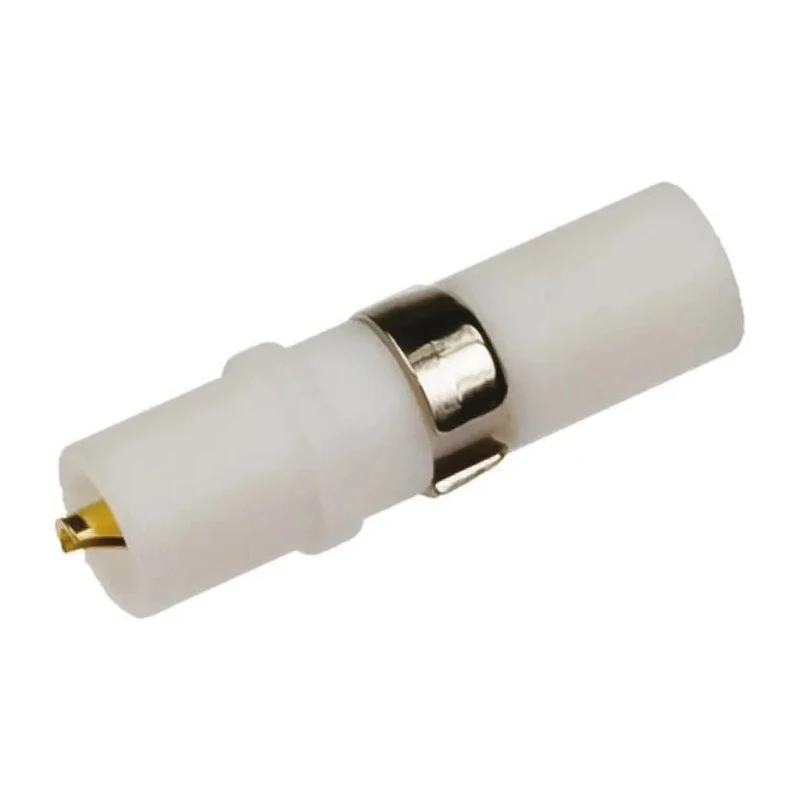

Amphenol Communications Solutions DW Series Female Solder D-Sub Connector Power Contact High Voltage 16 AWG 86382001LF
Specifications
| Country of Origin | France |
|---|---|
| Brand | Amphenol Communications Solutions |
| Current | 1.5A |
| Length | 18.6mm |
| Model | 86382001LF |
| Gender | Female |
| Contact Material | Brass |
| Series | DW |
| Termination Type | Solder |
| Contact Type | High Voltage |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.9mm² |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 18AWG |
| Maximum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 5mΩ |
Key Features
- The connector features a female gender configuration designed for solder termination.
- Contact material is brass with gold plating for enhanced conductivity and corrosion resistance.
- Supports currents up to 1.5A ensuring reliable power transmission.
- Contact resistance is maintained at a maximum of 5 milliohms for efficient performance.
- The connector length measures 18.6 mm, providing compatibility with various D-Sub configurations.
- Minimum and maximum wire sizes supported are 18 AWG to 16 AWG, or 0.9 mm² to 1.3 mm².
- This connector is part of the DW Series known for robust industrial and electronic applications.
- Manufactured in France to stringent quality standards without specific approvals listed.
Product Description
Amphenol Communications Solutions 86382001LF is a female solder D-Sub connector power contact from the DW Series designed for high voltage applications, supporting wiring sizes between 18 AWG and 16 AWG. This connector features a brass contact material plated with gold to ensure excellent conductivity and resistance to corrosion, making it reliable for demanding electronic and industrial power connector needs.
The connector can carry currents up to 1.5 amps and has a low maximum contact resistance of 5 milliohms, providing efficient power transfer. At a length of 18.6 mm, it fits standard D-Sub connector configurations for easy integration within assemblies.
Termination is by solder, suitable for secure and durable connections in electronic components and power distribution systems. The DW Series connectors are widely used in electronics manufacturing and industrial equipment due to their robust design and performance reliability.
This product is lead-free, RoHS compliant, and manufactured in France, maintaining high environmental and quality standards. It is suitable for applications in electronics components, power connectors, and related assembly processes.
The connector is female solder type optimized for power contact use. Gold plating on brass contacts ensures high conductivity and corrosion resistance. Supports wire sizes ranging from 18 AWG to 16 AWG for versatile wiring options.
Rated for 1.5 amp current capacity with minimal contact resistance. Compact length of 18.6 mm accommodates standard D-Sub Connector footprints. Series DW design provides industry standard dimensions and specifications. Lead-free and RoHS compliant for environmentally safe usage.
Manufactured in France with high quality control measures.
This Amphenol Communications Solutions product is ideal for industrial, electronic, and power connection applications. Browse the Power Connectors category on EnvMart for additional compatible components and accessories from the DW Series and other connector types.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a maximum current capacity of 1.5A, ensuring reliable power transmission for various applications.
It supports wire sizes ranging from 18 AWG to 16 AWG, or 0.9 mm² to 1.3 mm², providing versatility in wiring options.
The maximum contact resistance is maintained at 5 milliohms, which contributes to efficient performance in power transmission.
The connector measures 18.6 mm in length, making it compatible with standard D-Sub configurations.
The contacts are made of brass and are plated with gold to enhance conductivity and corrosion resistance.
This model features a solder termination type, suitable for secure and durable connections in electronic components.
Yes, this connector is lead-free and RoHS compliant, meeting environmental safety standards.
It is part of the DW Series, known for its robust design suitable for industrial and electronic applications.
This connector is manufactured in France, adhering to stringent quality standards.
This model features a female gender configuration designed for solder termination.
It is suitable for applications in electronics components, power connectors, and related assembly processes.
The contact type is high voltage, making it suitable for demanding electronic and industrial power connector needs.
