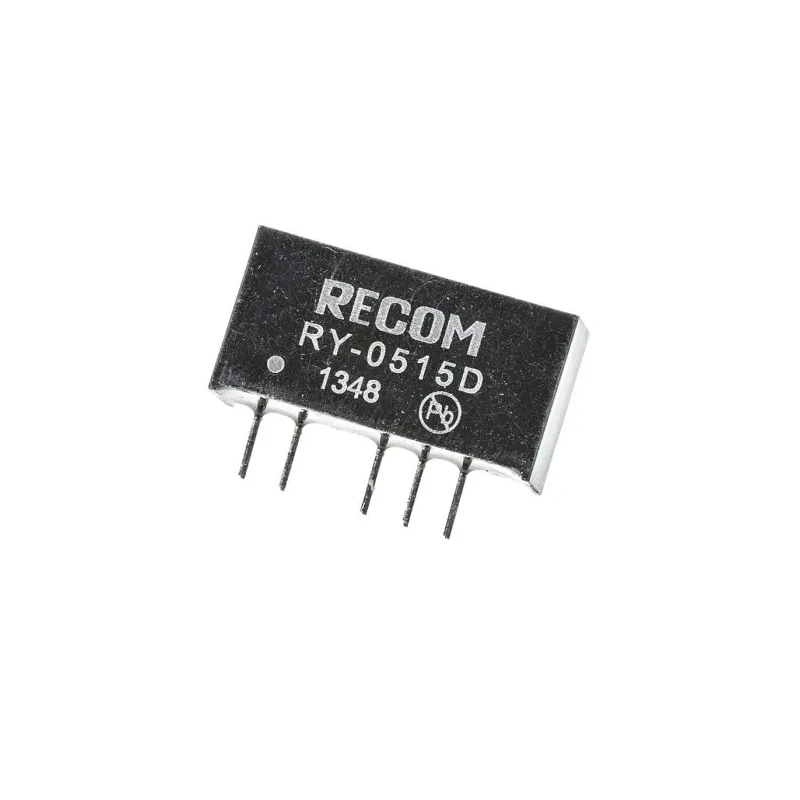

Recom Regulated Isolated Dual Output DC/DC Converter 15 V 33 mA 1 W Through Hole SIP-7 RY-0515D
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RY DC/DC Converter, 15V dc/ 33 mA, 5 |
| Brand | Recom |
| Efficiency | 68% |
| Length | 19.65mm |
| Model | RY-0515D |
| Depth | 10.2mm |
| Mount Type | Through Hole |
| Series | RY |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP-7 |
| Minimum Operating Temperature | -40°C |
| MTBF | 135000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V |
| Minimum Input Voltage | 4.75V dc |
| Number of Pins | 7 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 33mA |
| Output Voltage Adjustment Range | 4.5/5.5 V |
| Isolation Voltage | 1kV dc |
| Output Voltage 2 | -15V dc |
Key Features
- Provides dual isolated regulated outputs with 15 V and -15 V dc voltages.
- Maximum output current rated at 33 mA for each output channel.
- Operating input voltage range from 4.75 V dc minimum to 5.5 V maximum.
- Small form factor TH SIP-7 package supports easy through-hole PCB mounting.
- Designed for long service life with 135,000 hours MTBF rating.
- Isolation voltage of 1 kV dc to protect from voltage spikes.
- Operating temperature range from -40 °C to 85 °C with performance derating above 70 °C.
- 68% efficiency ensuring efficient power conversion without heatsink.
Product Description
Recom RY-0515D is a regulated, isolated DC/DC converter widely used in electronic components, power supplies, and transformers applications. This dual output model delivers ±15 V dc output voltage with a maximum output current capacity of 33 mA per channel. It operates with an input voltage range between 4.75 V and 5.5 V dc, making it suitable for low voltage power supply systems.

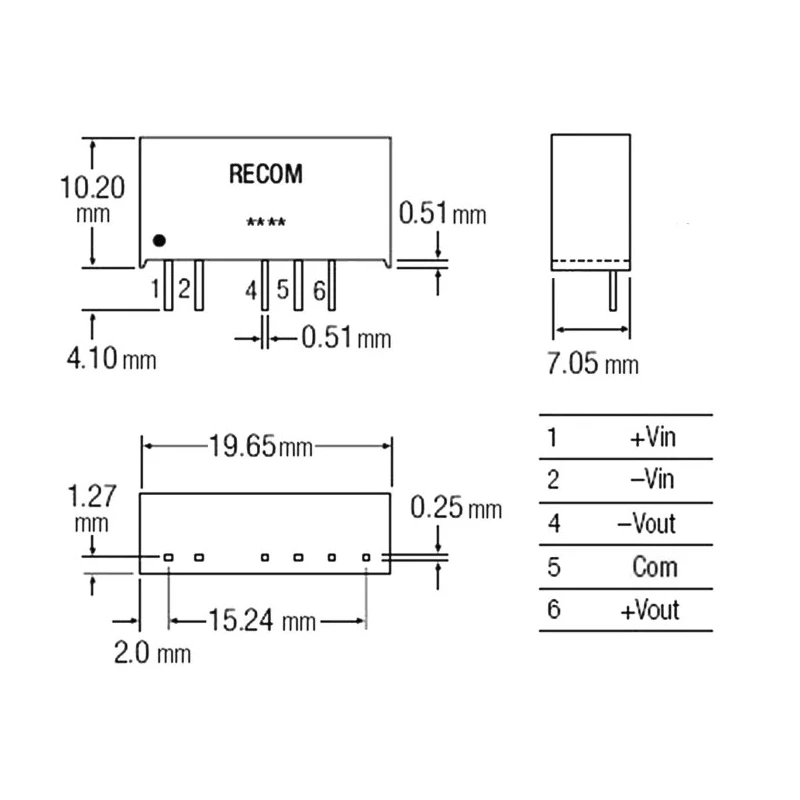

The device features a through-hole SIP-7 package, enabling straightforward mounting on printed circuit boards while maintaining a compact footprint of 19.65 mm length and 10.2 mm depth. The converter provides galvanic isolation of 1 kV dc which enhances system safety against transient voltages.
Designed for industrial and commercial use, it supports operation in harsh environments with temperatures ranging from -40 °C minimum up to 85 °C maximum. Additionally, it offers an MTBF of 135,000 hours, underscoring its reliability in demanding applications.
With 68% efficiency, the converter operates without requiring any heatsink, and its encapsulated UL94V-0 compliant package ensures durability and safety against electrical hazards.
Dual regulated isolated outputs with positive and negative voltage rails. Wide input voltage tolerance suitable for varying supply conditions. Compact SIP7 through-hole package for easy PCB integration. High isolation voltage supports protection in sensitive electronics.
Long operational lifetime rated through MTBF figure. Wide operating temperature range suitable for industrial and laboratory environments. Compliance with UL94V-0 flammability standard for electrical safety. Encapsulated design prevents damage from environmental contaminants.
Ideal for power supply applications, instrumentation, industrial controls, and automation systems. This Recom DC/DC Converter model is extensively used in various industrial, commercial, laboratory, and telecommunications power supply solutions.
Explore the broad EnvMart catalog for additional reliable power supply modules and electronic components matching your exact requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual isolated regulated outputs of +15 V and -15 V dc.
The maximum output current rated for each output channel is 33 mA.
It operates with an input voltage range from 4.75 V dc to 5.5 V dc.
The SIP-7 package measures 19.65 mm in length and 10.2 mm in depth.
The efficiency of this model is rated at 68%.
It features an isolation voltage of 1 kV dc, protecting against voltage spikes.
The operating temperature range is from -40 °C to 85 °C, with performance derating above 70 °C.
This converter has a Mean Time Between Failures (MTBF) rating of 135,000 hours.
This model features two outputs, providing both positive and negative voltage rails.
It supports through-hole mounting, making it suitable for PCB integration.
This converter is widely used in power supply applications, instrumentation, industrial controls, and automation systems.
The encapsulated package complies with the UL94V-0 flammability standard for electrical safety.
