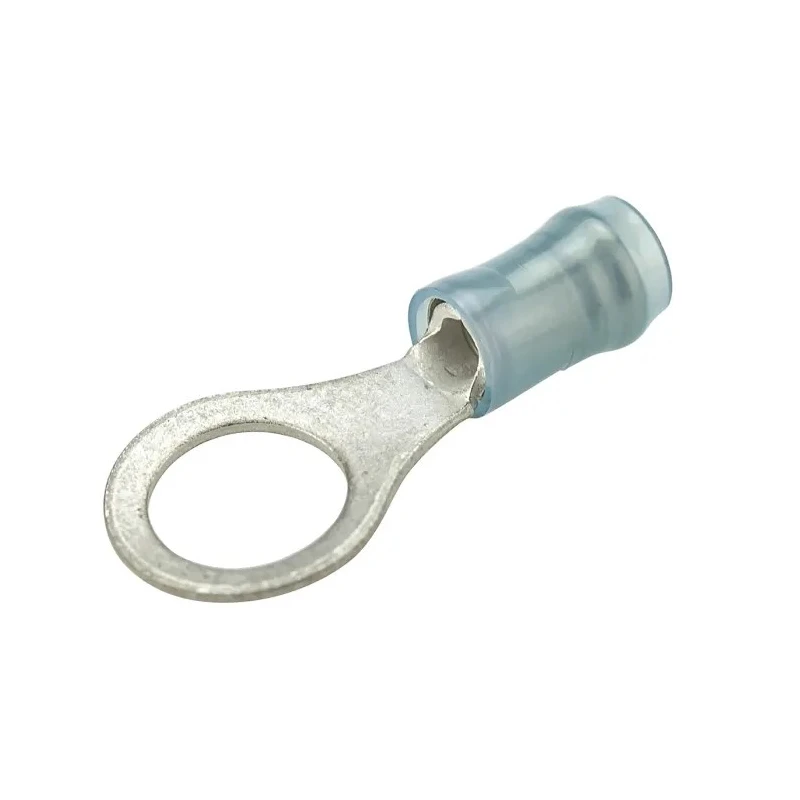

TE Connectivity PIDG Insulated Ring Terminal M8 Stud Size 16 AWG 14 AWG Wire Size Blue 328998

TE Connectivity 328998 PIDG Insulated Ring Terminal is designed for reliable electrical connections in industrial and commercial wiring applications. It features an insulated nylon sleeve colored blue for easy wire size identification and enhanced insulation protection. The terminal is engineered with a high conductivity copper body and barrel with internal copper sleeve that supports wire integrity by preventing fraying and offering improved insulation support.

The serrations inside the wire barrel ensure maximum contact and tensile strength once crimped, enabling secure and durable electrical connections suitable for harsh environments. The funnelled wire entry design facilitates rapid wire insertion, optimizing workflow during mass production.

This terminal supports wire sizes from 16 AWG up to 14 AWG and fits an M8 stud size, with an overall length of 27.38 mm. The nylon insulation material is durable and rated for maximum operating temperatures of up to 105°C, making it suitable for applications in instrumentation, control systems, lighting, power supplies, panel boxes, transportation, and aerospace industries.

The PIDG terminals comply with or exceed standards such as MIL-T-7928 Type II, Class 1 and 2, ensuring quality and reliability. These features make it ideal for use in electrical assemblies requiring consistent, high-quality crimps and long-term durability.

High conductivity copper body provides excellent electrical performance. Integrated copper sleeve protects wire insulation and prevents strand fraying. Serrated wire barrel ensures maximum crimp strength and contact reliability.

Colour-coded blue nylon insulation sleeve enables quick wire size recognition. Funnelled wire entry improves wire insertion speed and reduces production time. Rated for maximum operating temperature of 105°C for demanding applications.

Compatible with 16 AWG to 14 AWG wire size and M8 stud size. Ideal for industrial, aerospace, automotive, and control system wiring.

This PIDG insulated ring terminal is a dependable component for electrical splicing, offering reliability and ease of use for industrial and commercial wiring needs. Find it in the Wire Terminals & Splices category for your electronic components and connector solutions at EnvMart.
