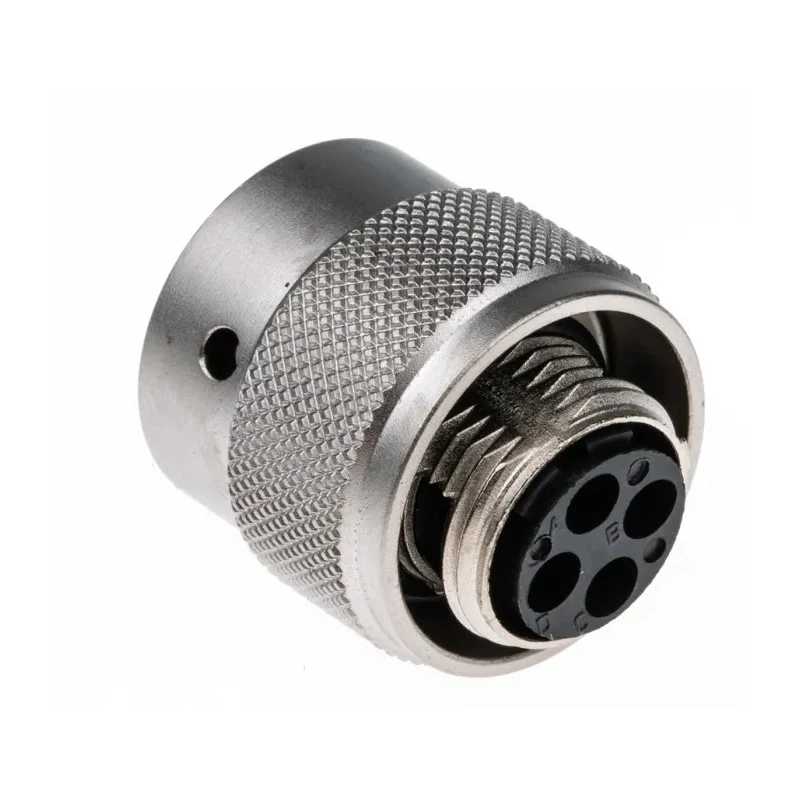

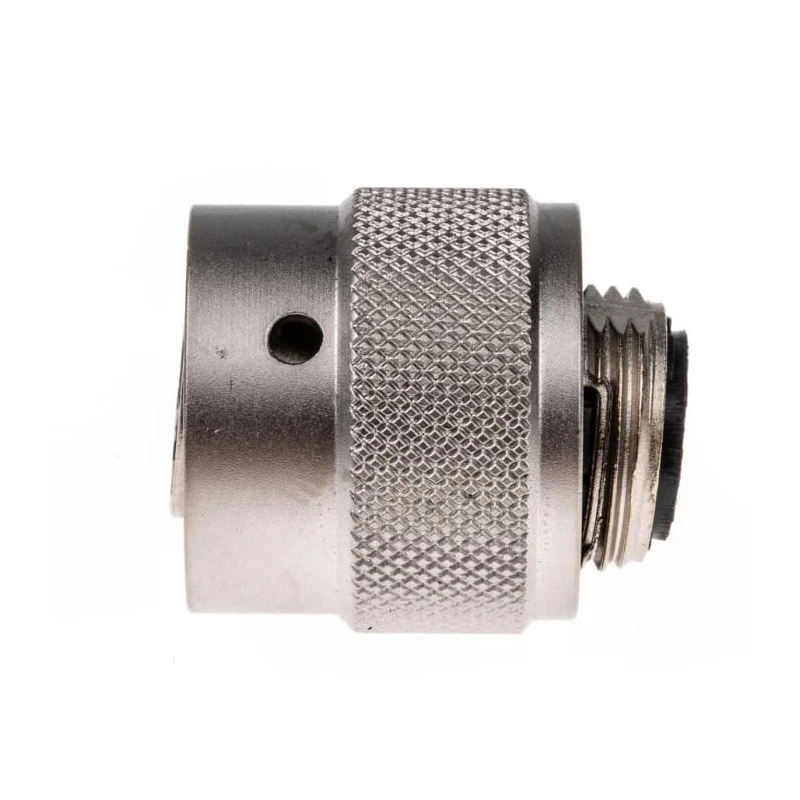

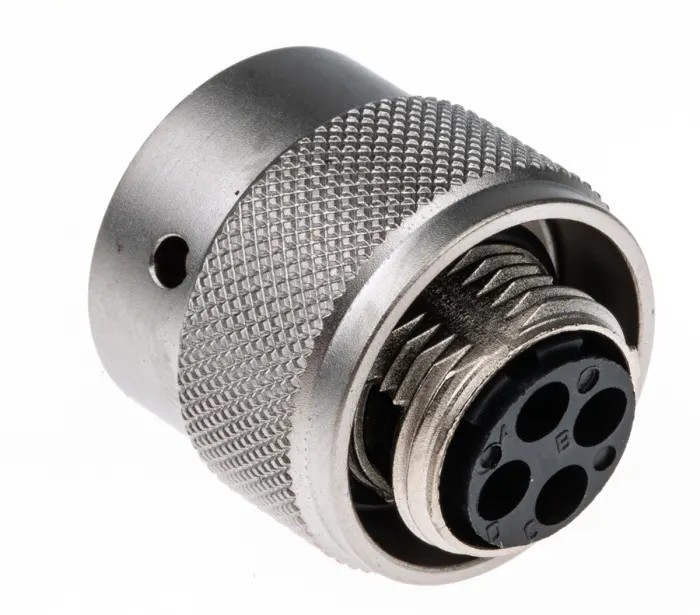

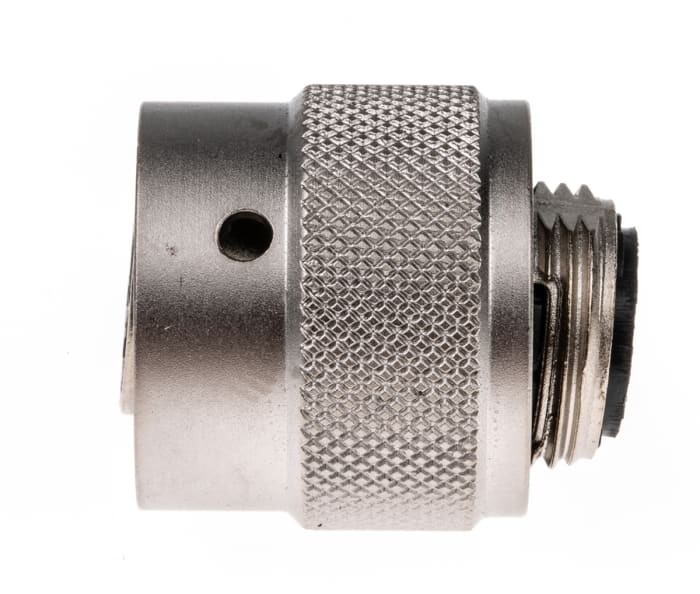

Souriau Sunbank by Eaton MIL Spec Circular Connector, UTO Straight 4 Way Cable, Male Connector with Female UT06104SH

Souriau Sunbank by Eaton UT06104SH MIL Spec Circular Connector is a high-quality, straight 4 way cable connector featuring a male connector body and female contacts. Rated for 500 volts, this connector ensures dependable performance in demanding environments.

Constructed with a nickel-plated shell, it offers excellent corrosion resistance and durability. The connector features a bayonet mating system that provides secure and efficient coupling, supporting up to 500 connection cycles. The design supports IP68 and IP69 ingress protection ratings, making it suitable for applications exposed to dust and water.

Operating temperature ranges from -40°C to 105°C allow for versatile use in industrial, military, and aerospace applications. It meets MIL-C-26482 military specifications, ensuring strict compliance for reliability under harsh conditions. Crimp termination type provides consistent and stable cable connections with 4 female contacts inside a shell size 10 housing mounted on the cable.

This connector series UTO/UTOW is designed for applications requiring sealed cylindrical metal connectors including industrial, military, and aerospace sectors. The metal casing includes a bayonet locking ring, and a 5-pin guiding system ensures correct insertion and alignment between plug and base components.

Operates at 500 volts ensuring electrical integrity. Features a nickel-plated shell for corrosion resistance. Bayonet mating type provides secure and repeated connections. IP68 and IP69 rating for dust and water ingress protection.

Wide operating temperature range from -40°C to 105°C. Complies with MIL-C-26482 military standards for rugged use. Crimp termination for reliable cable connection. Includes four female contacts in shell size 10. Robust metal cable mount construction for mechanical protection.

Manufactured in France to high quality standards.

This Souriau Sunbank by Eaton connector is suitable for industrial, military, construction, aerospace, and other demanding environments requiring high reliability and sealing. It is compatible with other series such as TRIM TRIO and UTP connectors. The product supports secure signal and power transmission under harsh environmental conditions.

For further technical design and mechanical integration, 3D models and schematics are available. Explore similar products within the Mil Spec Circular Connector category at EnvMart for comprehensive connector solutions tailored to precise industrial needs.
