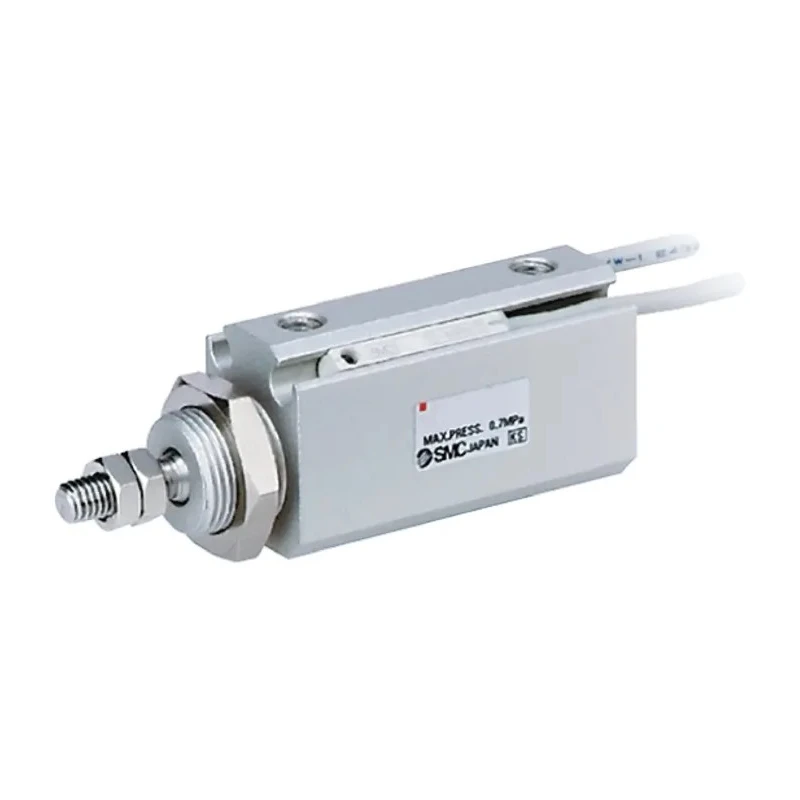

SMC 10 mm Pneumatic Piston Rod Cylinder Double Acting Panel Mount Aluminium Body 70°C CDJP2B16-10D

SMC CDJP2B16-10D Pneumatic Piston Rod Cylinder is a precision double acting actuator designed for reliable performance in pneumatic power and fluid control systems. Featuring a 10 mm bore diameter and a 10 mm stroke length, this cylinder offers efficient linear motion with a compact design.

The cylinder body is constructed from aluminium, providing a lightweight yet robust unit suitable for panel mounting. Rubber bumper cushions at both ends serve to dampen impacts and extend cylinder life during cyclic operations.

Operating temperature is rated up to 70°C, allowing the cylinder to function effectively in various environmental conditions. The piston rod is a single, male-threaded type with metric threads, facilitating easy integration with other pneumatic components. This model supports a maximum piston speed of 500 mm/s, making it suitable for medium-speed pneumatic actuation.

Designed with an IP67 protection rating, the cylinder ensures tight sealing and protection from dust and water ingress, critical for industrial applications. Its operating pressure ranges from 0.6 bar minimum to 7 bar maximum depending on bore size, which ensures adaptability to different pneumatic pressure environments. The lubrication-free design further minimizes system maintenance and enhances operational reliability.

Compact double acting pneumatic cylinder with 10 mm stroke length. Aluminium body construction ensures lightweight with durability. Panel mount type with rubber bumper cushioning at both ends for smooth operation. Maximum operating temperature up to 70°C for versatile industrial applications.

Single male-threaded piston rod with metric thread standard. Maximum piston speed of 500 mm/s supported. IP67 rated design offering protection against dust and water ingress. Operating pressure range from 0.6 bar minimum to 7 bar maximum depending on bore size.

Does not require lubrication, reducing maintenance needs. Suitable for automated industrial pneumatic systems and fluid power control.

This cylinder is ideal for industrial pneumatic automation, manufacturing processes, fluid power management, and other applications requiring precise linear motion control under varied operating conditions. The product is manufactured in China and meets demanding durability requirements.
