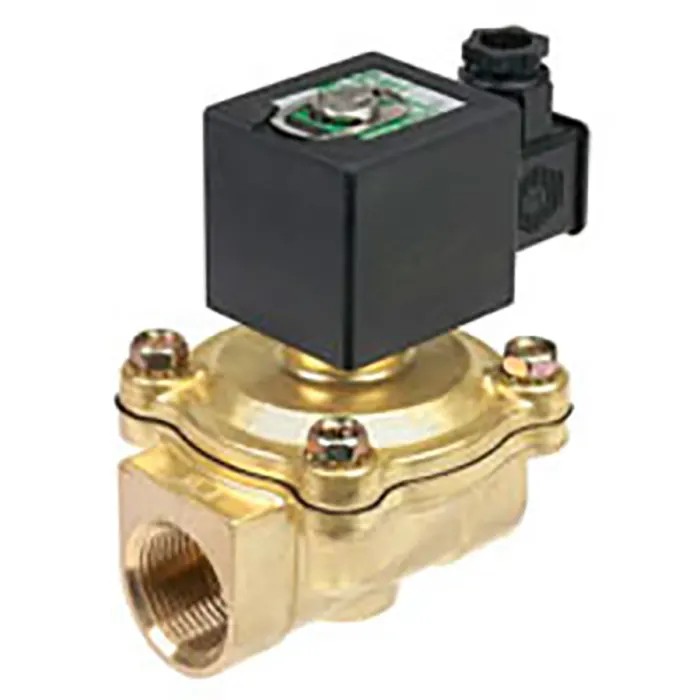

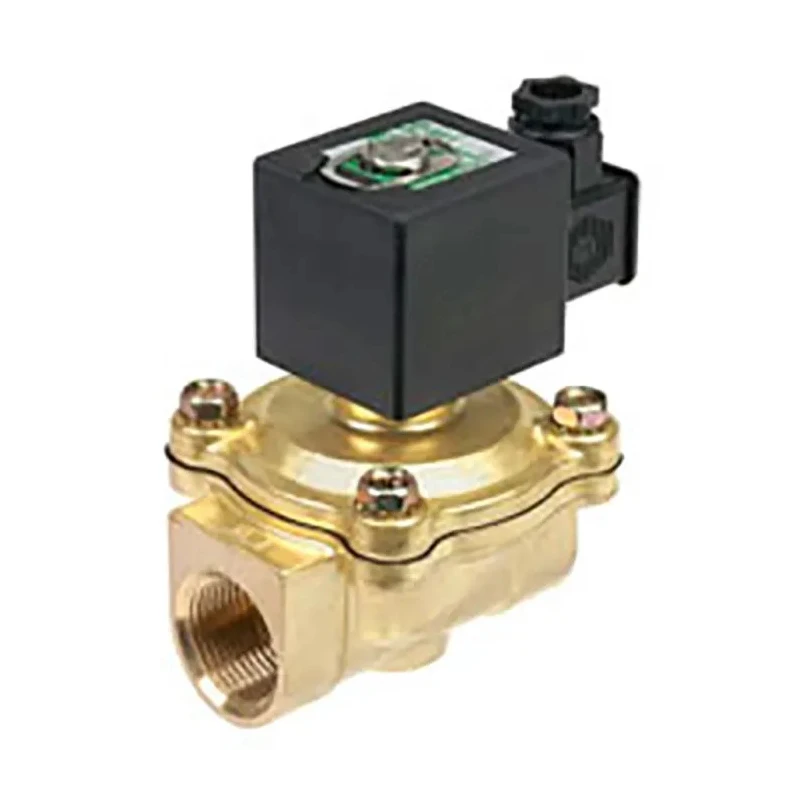

EMERSON ? ASCO Brass Body 2 Port NC Solenoid Valve 24V AC, Orifice Diameter 19mm, 10 Bar Pressure SCG238A048.24/50

The EMERSON ? ASCO SCG238A048.24/50 solenoid valve is a robust industrial-grade valve designed for controlling water flow in various industrial, commercial, and laboratory fluid systems. It features a brass body construction that ensures durability and resistance against corrosion, making it ideal for plumbing and pipeline applications that require reliable fluid isolation and control.

Operating at 24V AC supply voltage, this 2 port, normally closed (NC) valve offers effective fluid power control with an orifice diameter of 19mm, suitable for moderate flow rates. The valve is specifically engineered with power-assisted control utilizing a floating diaphragm, which eliminates water hammer effects often seen when stopping water flow abruptly.

This valve can sustain operating pressures up to 10 bar and withstand ambient temperatures from -20°C to 85°C, accommodating a wide range of environmental conditions. The servo assist feature enhances valve response and reliability under dynamic operating circumstances.

Threaded inlet and outlet connections conform to G ISO 228/1, making it compatible for standard piping installations. The valve meets strict industry standards and approvals such as EN 60730-2-8, FCI-82-1, IEC 335, EN 60529, WRAS, ISO 4400 / EN 175301-803, and comes with hazardous area certifications ATEX and EC, certifying its safety and suitability for potentially explosive atmospheres.

With a flow factor Kv of 4.5 m³/hour, the SCG238A048.24/50 provides precise fluid regulation necessary for industrial automation, water treatment, manufacturing processes, and HVAC systems. This valve is manufactured in France, reflecting high-quality European engineering standards.

The valve features a 19mm orifice diameter suitable for efficient fluid control. It supports a maximum operating pressure of 10 bar for reliable performance. Designed to operate within a temperature range from -20°C to 85°C.

The valve includes servo assist functionality for enhanced control. Complies with multiple standards including EN 60730-2-8 and WRAS approval for water systems. Constructed with threaded inlet and outlet connections adhering to G ISO 228/1 standard.

Offers protection with hazardous area certifications including ATEX and EC. Flow factor Kv rated at 4.5 cubic meters per hour for precise flow management. Manufactured in France, ensuring quality and durability.

This solenoid valve is ideal for industrial, plumbing, water treatment, HVAC, and manufacturing applications requiring efficient and safe fluid control. Explore more components within the Solenoid Valves category on EnvMart for complementary solutions.
