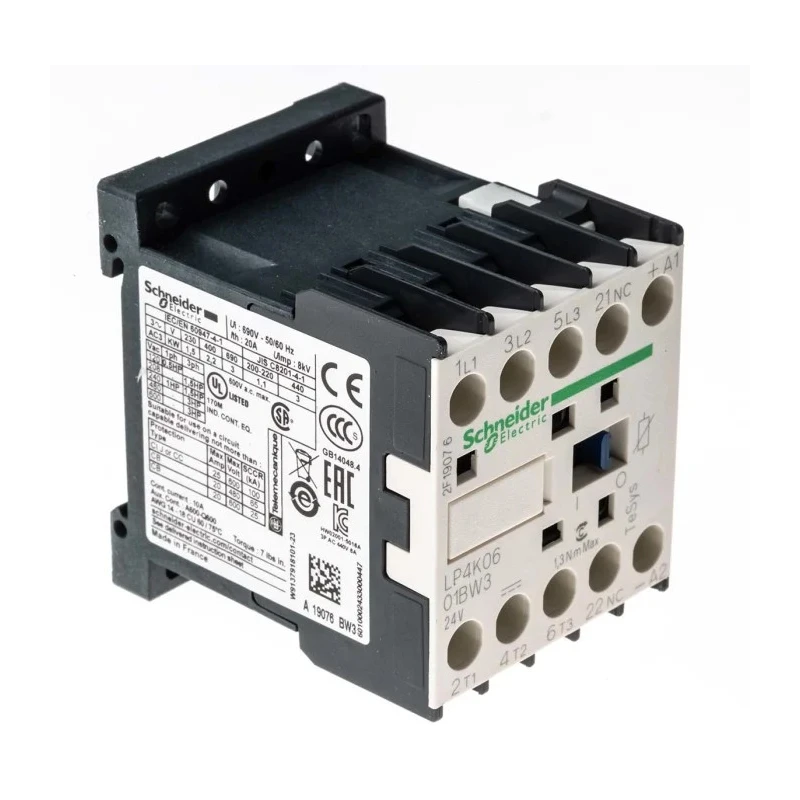

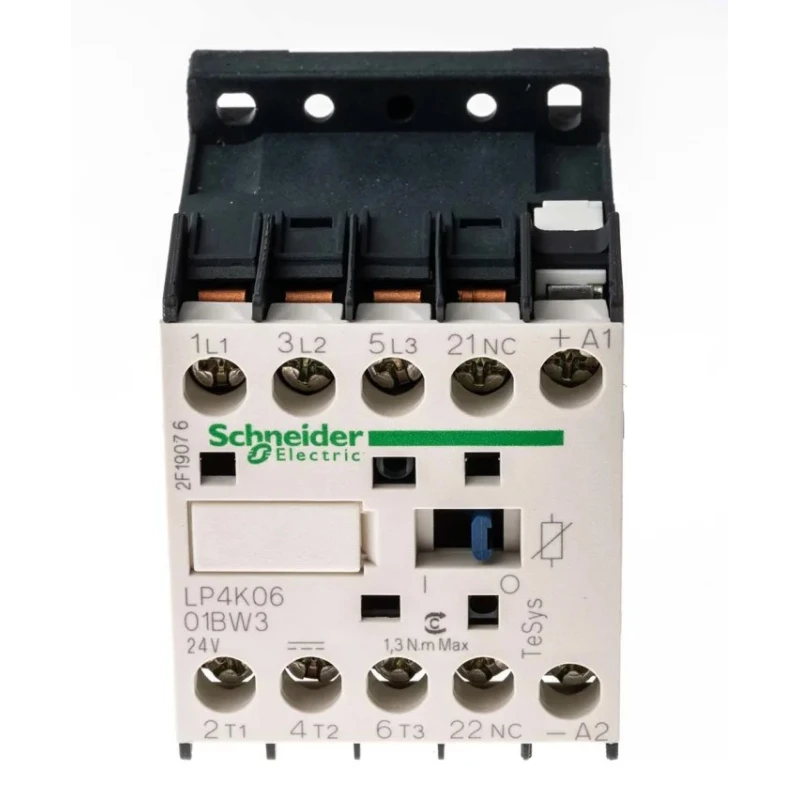

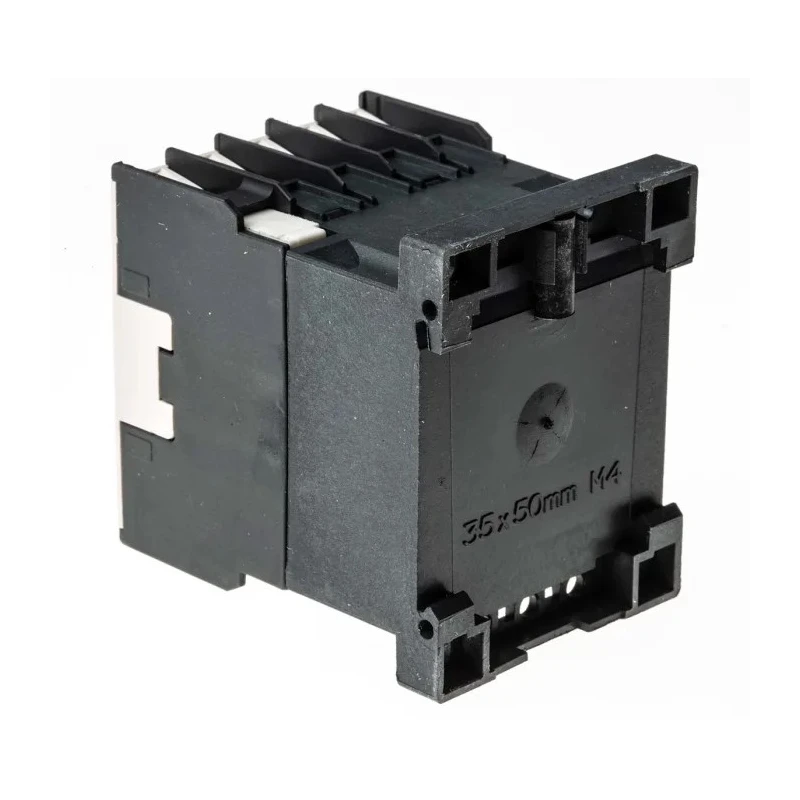

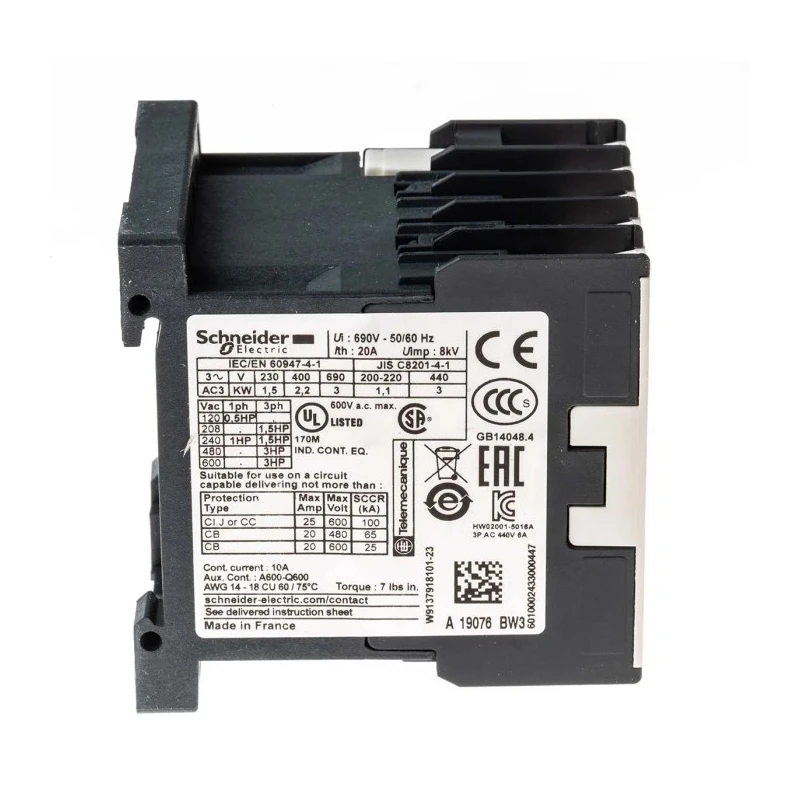

Schneider Electric LP4K Contactor 24V DC Coil 3-Pole 6A 3 kW 3 NO 690V AC LP4K0601BW3

Schneider Electric LP4K0601BW3 Contactor is a high-performance 3-pole device with a 24V DC coil voltage, designed for motor control and automation systems. This compact unit measures 58mm in length, 45mm in width, and 57mm in depth, making it suitable for DIN rail mounting and installations in limited space.

Constructed to handle a contact voltage of up to 690V AC and a contact current of 6A, it delivers a power rating of 3 kW. Equipped with one normally closed (1NC) auxiliary contact, it increases versatility for auxiliary functions. Its integrated bidirectional peak limiting diode enhances durability by protecting the contactor against high current spikes during motor start-up and shutdown phases.

The contactor is reliable across a temperature range from -25°C to +50°C, ensuring stable performance in diverse industrial environments. It uses screw-type terminals for firm and dependable electrical connections. The LP4K0601BW3 is suitable for a variety of industrial applications including motor control in industrial machinery, HVAC systems, pumps, material handling, and conveyor systems, supporting automation processes within manufacturing setups.

Standards and certifications such as CCC, CSA, EAC, IEC, UL, and RoHS confirm compliance with international quality and safety requirements. Originating from France, this Schneider Electric contactor aligns with sustainable design principles, being designed for disassembly and improved recyclability.

Operates at 24V DC coil voltage with low power consumption. Supports contact voltage up to 690V AC for multiple applications. Includes 3 poles with 3 normally open contacts for motor control. Features one 1NC auxiliary contact for additional control circuit functionality.

Compact design with dimensions suitable for DIN rail mounting. Integrated bidirectional peak limiting diode for long-lasting operation. Wide operating temperature range from -25°C to 50°C ensures reliability. Screw terminal connections provide secure electrical contact.

Compliant with multiple international approvals and standards. Designed for use in automation, HVAC, pumps, and material handling applications. Discover more Schneider Electric Contactors and electrical components in the EnvMart catalog for your industrial automation and electrical control needs.
