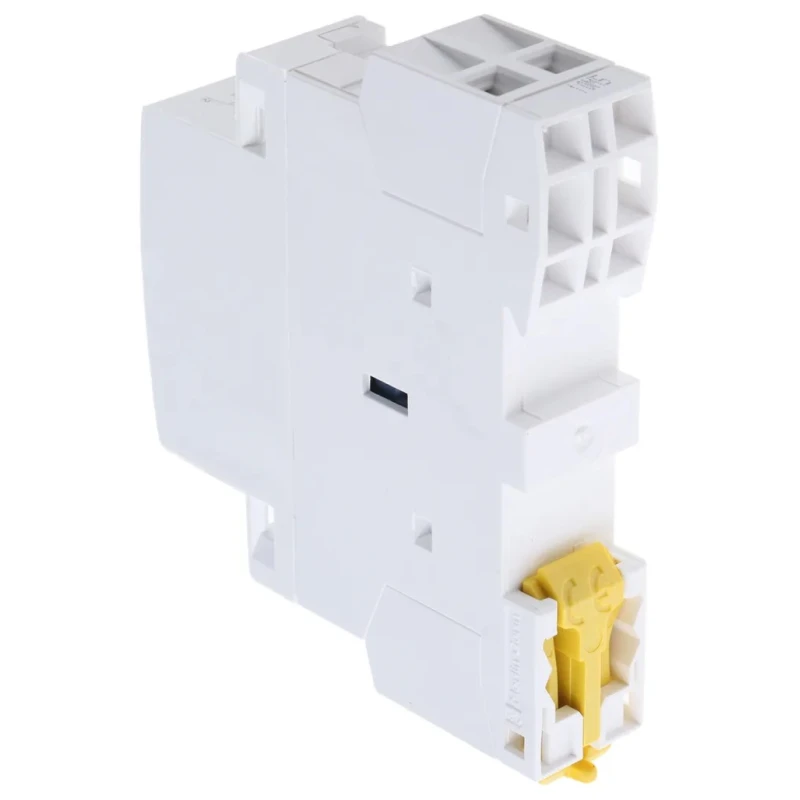

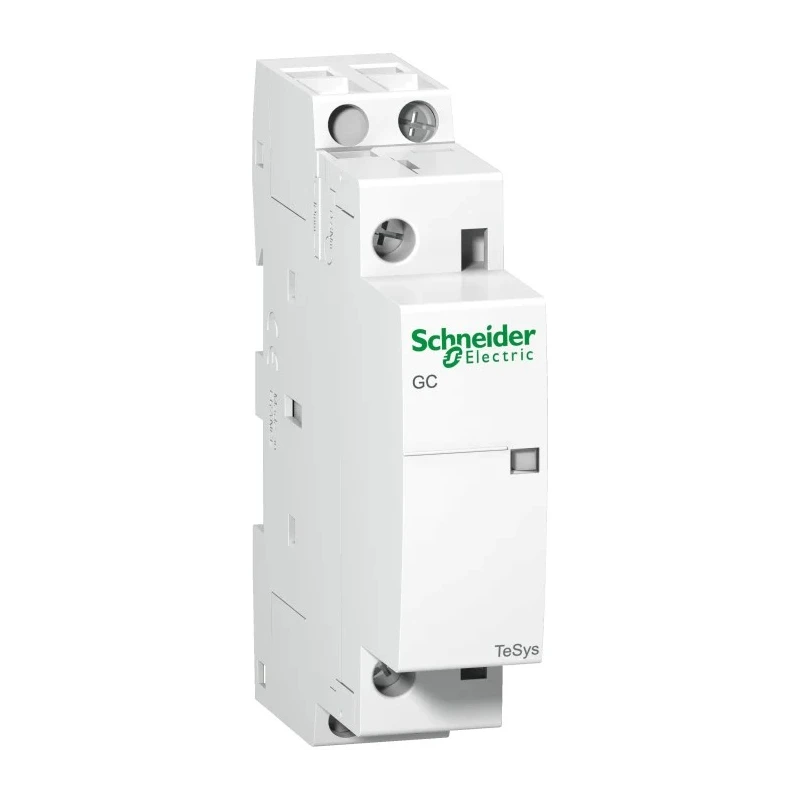

Schneider Electric GC25 Contactor, 230V AC Coil, 1-Pole, 25 A, 1.6 W Power Rating, 1 NO, 500V AC Contact Voltage GC2510M5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 81mm |
| Model | GC2510M5 |
| Depth | 65mm |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | GC25 |
| Power Rating | 1.6W |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 1 |
| Standards/Approvals | VDE, RoHS, CEBEC, EN, IEC, NF-USE, OVE |
| Contact Voltage | 500V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 1 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | SPST |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| Class-2 insulation | continuous safety for operators and unqualified personnel |
Key Features
- The contactor operates with a coil voltage of 230V AC and has a power rating of 1.6 W at 230V AC.
- It features 1 normally open (NO) contact configuration, suitable for reliable switching.
- Designed for DIN rail mounting with screw terminals offering IP20 finger-safe protection.
- Operational temperature range from -5°C to 50°C ensures versatile use in different environments.
- Meets international standards including VDE, RoHS, CEBEC, EN, IEC, NF-USE, and OVE for quality assurance.
- Includes built-in auxiliary contacts to enhance switching capabilities.
- Class-2 insulation provides continuous safety for operators and unqualified personnel.
- Impulse relay and day-night functions improve utility in motor control scenarios.
Product Description
Schneider Electric GC2510M5 is a robust and compact TeSys GC series contactor engineered for motor control applications. Featuring a 230V AC coil voltage and a power rating of 1.6 W, this 1-pole contactor supports a contact current of 25A and contact voltage up to 500V AC. Its normally open (1 NO) contact configuration provides reliable power switching for various industrial and commercial uses.
The device is designed for DIN rail mounting, utilizing screw terminals that are IP20 finger-safe for enhanced operator safety. With an operational temperature range from -5°C to 50°C, it can sustain performance in a variety of ambient conditions. Its compact size (81mm length, 65mm depth, and 17.5mm width) allows for efficient installation in control panels.
Compliant with multiple international standards like VDE, RoHS, CEBEC, EN, IEC, NF-USE, and OVE, this contactor ensures high reliability and safety adherence. The built-in auxiliary contacts add switching functionality suitable for complex control circuits. Class-2 insulation guarantees continuous operator safety including protection for unqualified personnel.
The Schneider Electric TeSys GC modular contactors feature impulse relay and day-night function capabilities, making them adaptable for a wide range of motor control tasks. Designed with environmental responsibility in mind, this contactor is made to be easily disassembled, promoting sustainability and eco-friendly disposal.
This contactor is ideal for industrial automation, motor control, HVAC systems, manufacturing equipment, and electrical panels. It supports AC1 and AC3 utilization categories, enabling it to switch resistive loads or squirrel cage motors effectively.
The coil voltage is 230V AC with 1.6 W power rating. Single pole with 25A operational current. DIN rail mounting with screw-type terminals for easy installation. Compact dimensions: 81mm (L) x 65mm (D) x 17.5mm (W). Compliance with VDE, RoHS, CEBEC, EN, IEC, NF-USE, and OVE standards.
Built-in 1 NO auxiliary contact for extended functionality. Class-2 insulation for user safety. Designed for disassembly supporting sustainability. Suitable for controlling motors, pumps, compressors, and heating systems.
Explore more Schneider Electric Contactors and related automation control gear available on EnvMart for professional industrial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this contactor is 230V AC.
It has a power rating of 1.6 W at 230V AC.
The maximum contact voltage supported is 500V AC.
The operational current rating is 25A.
This model is a 1-pole contactor.
The dimensions are 81mm in length, 65mm in depth, and 17.5mm in width.
It is designed for DIN rail mounting.
The operational temperature range is from -5°C to 50°C.
It features screw terminals that are IP20 finger-safe.
It complies with VDE, RoHS, CEBEC, EN, IEC, NF-USE, and OVE standards.
Yes, it includes 1 normally open (NO) auxiliary contact for enhanced functionality.
This contactor is suitable for motor control applications, including HVAC systems and manufacturing equipment.
