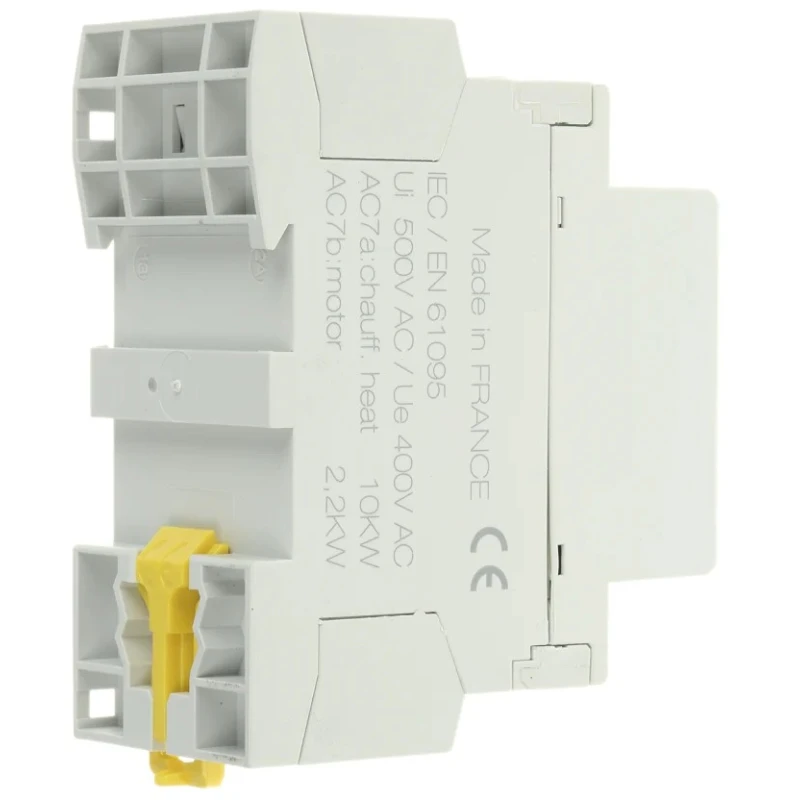

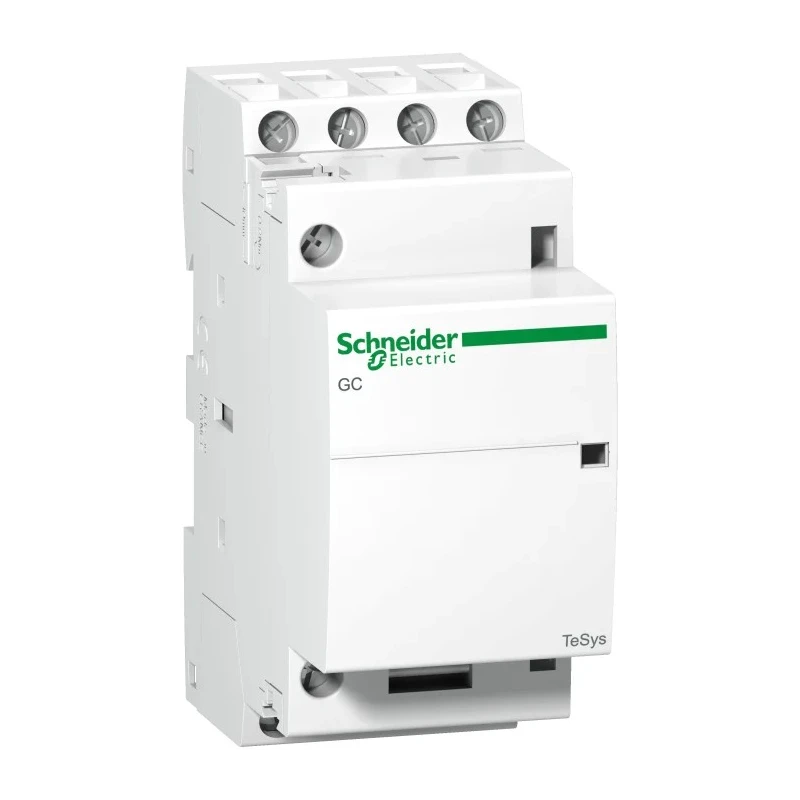

Schneider Electric GC16 Contactor 230V AC Coil 4-Pole 16 A 0.65 W Coil Power GC1640M5
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 81mm |
| Model | GC1640M5 |
| Depth | 65mm |
| Width | 35mm |
| Mount Type | DIN Rail |
| Series | GC16 |
| Power Rating | 0.65W |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | VDE, RoHS, OVE, NF-USE, IEC, EN, CEBEC |
| Contact Voltage | 415V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 16A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 16A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| Class-2 insulation | continuous safety for operators and unqualified personnel |
Key Features
- This contactor is designed for motor control applications with a normal state of 4 NO contacts.
- The coil power is low at 0.65 W for 230V AC, ensuring energy efficiency.
- It features IP20 finger-safe screw terminal connections compatible with both North American and international markings.
- DIN Rail mounting allows easy installation in control panels.
- Operates within a temperature range of -5°C to 50°C, suitable for varied industrial environments.
- Includes one auxiliary contact with configuration 1 NO for added switching functionality.
- Designed for disassembly promoting sustainability and compliance with regulatory standards such as VDE, RoHS, IEC, and CEBEC.
- Ideal for industrial automation, manufacturing, HVAC motor control, and general electrical control gear systems.
Product Description
Schneider Electric GC1640M5 Contactor is a robust modular contactor designed for efficient motor control applications. It operates on a 230V AC coil voltage and supports a 4-pole configuration with a 16 A contact current, delivering reliable switching performance with low energy consumption at 0.65 W coil power.
Featuring screw-type terminals with IP20 finger-safe protection, this contactor ensures operator safety and compatibility with both North American and international terminal markings. Its compact form factor, measuring 81 mm in length, 35 mm in width, and 65 mm in depth, allows for easy installation on DIN rails or panels in control cabinets.
With a normal state configuration of 4 normally open (NO) contacts and an additional auxiliary contact configured as 1 NO, it offers enhanced switching capabilities required in motor control circuits. The device is suitable for use in a wide range of industrial sectors including manufacturing, HVAC systems, water treatment plants, and automated machinery.
The contactor operates reliably within a temperature range of -5°C to 50°C and complies with recognized international standards such as VDE, RoHS, IEC, EN, and CEBEC. Its class-2 insulation ensures continuous safety for operators and unqualified personnel. Schneider Electric’s design emphasizes sustainability with a product engineered for disassembly.
Motor control application with 230V AC coil voltage. 4-pole, 16 A contact current for typical industrial loads. Low coil power consumption of 0.65 W at 230V AC. IP20 finger-safe screw terminals with international markings.
Compact DIN rail mounting for flexible panel installation. Auxiliary contact included to enhance switching functions. Reliable operation from -5°C to 50°C ambient temperatures. Compliant with multiple safety and environmental standards.
Designed for disassembly and sustainability.
This Schneider Electric Contactor is an ideal choice for industrial automation, electrical control panels, HVAC motor control, and other manufacturing applications requiring dependable and safe power switching solutions.
Discover the full range of Schneider Electric products and explore advanced automation solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this contactor is 230V AC.
It has a maximum contact current rating of 16 A.
This model features a 4-pole configuration.
The coil power consumption is low at 0.65 W.
The dimensions are 81 mm in length, 35 mm in width, and 65 mm in depth.
It uses screw-type terminals with IP20 finger-safe protection.
It operates within a temperature range of -5°C to 50°C.
Yes, it includes one auxiliary contact configured as 1 normally open (NO).
It complies with several standards including VDE, RoHS, IEC, and CEBEC.
Yes, it is designed for easy installation on DIN rails.
It is designed for motor control applications in industrial automation and HVAC systems.
It is designed for disassembly, promoting sustainability.
