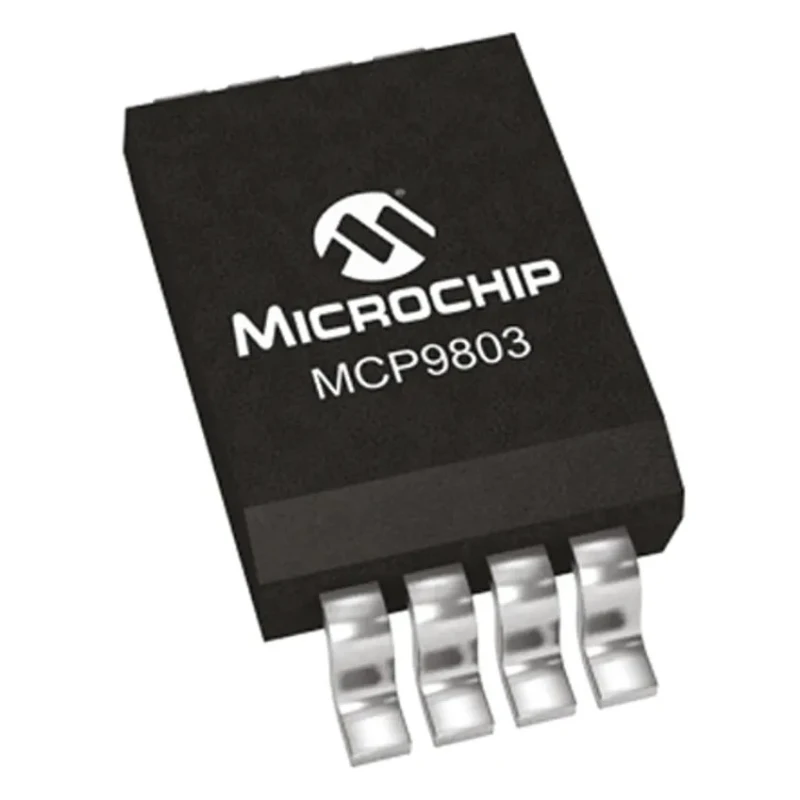

Microchip MCP9803 Series Digital Output Temperature Transducer Surface Mount Serial-I2C SMBus ±0.5°C 8-Pin SOIC MCP9803
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.5°C |
| Brand | Microchip |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | MCP9803 |
| Width | 3.9mm |
| Mount Type | Surface |
| Output type | Digital |
| Series | MCP9803 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -55°C |
| Interface Type | Serial-I2C, SMBus |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
Key Features
- Operates over a wide temperature range from -55°C to 125°C.
- Utilizes Serial I2C and SMBus interface for easy integration.
- Operates on a supply voltage from 2.7V to 5.5V.
- Compact dimensions of 4.9mm length, 3.9mm width, and 1.25mm height.
- Stable and accurate temperature conversion suitable for multiple electronics applications.
- Low power consumption ideal for embedded systems and portable devices.
- Robust surface mount SOIC package ensuring easy PCB integration.
- Ideal for PCs, servers, mobile phones, and data communication equipment.
Product Description
Microchip MCP9803 series high accuracy digital output temperature transducer (model MCP9803) is designed to provide precise temperature measurements with an accuracy of ±0.5°C. The device converts temperature readings ranging from -55°C to 125°C into a digital output via a 2-wire Serial I2C or SMBus interface. It features a compact 8-pin SOIC surface mount package with dimensions of 4.9mm in length, 3.9mm in width, and 1.25mm in height, making it ideal for space-constrained circuit designs.
This sensor operates comfortably over a supply voltage range of 2.7V to 5.5V, supporting low power operation, which is beneficial for battery-powered devices and embedded systems. The MCP9803 is widely used in electronic applications such as PCs, servers, hard disk drives, mobile phones, office equipment, and data communication devices, providing reliable temperature data for system monitoring and control.
The device lacks specific automotive standards certification but is suited for commercial and industrial electronics environments. Its robust surface mount SOIC package allows for easy automated assembly and high-density PCB layouts.
High accuracy temperature conversion of ±0.5°C ensures reliable sensing. Digital output via I2C and SMBus facilitates simple interfacing with microcontrollers. Wide operating temperature range from -55°C to 125°C for various environments.
Low voltage operation from 2.7V to 5.5V supports power-sensitive applications. Compact 8-pin SOIC surface mount package enhances PCB space efficiency. Applications include computing, mobile devices, and communication equipment.
Non-automotive grade without specific automotive standard certification.
This MCP9803 digital temperature transducer is recommended for industrial and commercial electronic applications requiring accurate and reliable temperature monitoring. Explore the full range of Temperature Sensor ICs at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP9803 temperature sensor has an accuracy of ±0.5°C.
This model operates over a temperature range from -55°C to 125°C.
The MCP9803 provides a digital output via a Serial I2C or SMBus interface.
It operates on a supply voltage ranging from 2.7V to 5.5V.
The MCP9803 has dimensions of 4.9mm in length, 3.9mm in width, and 1.25mm in height.
This temperature sensor comes in an 8-pin SOIC surface mount package.
The MCP9803 is suitable for applications in PCs, servers, mobile phones, and data communication equipment.
The MCP9803 has a pin count of 8.
The MCP9803 lacks specific automotive standards certification but is suitable for commercial and industrial electronics environments.
The minimum operating temperature is -55°C, and the maximum is 125°C.
The low power consumption makes it ideal for battery-powered devices and embedded systems.
The MCP9803 supports surface mounting, which allows for easy PCB integration.
