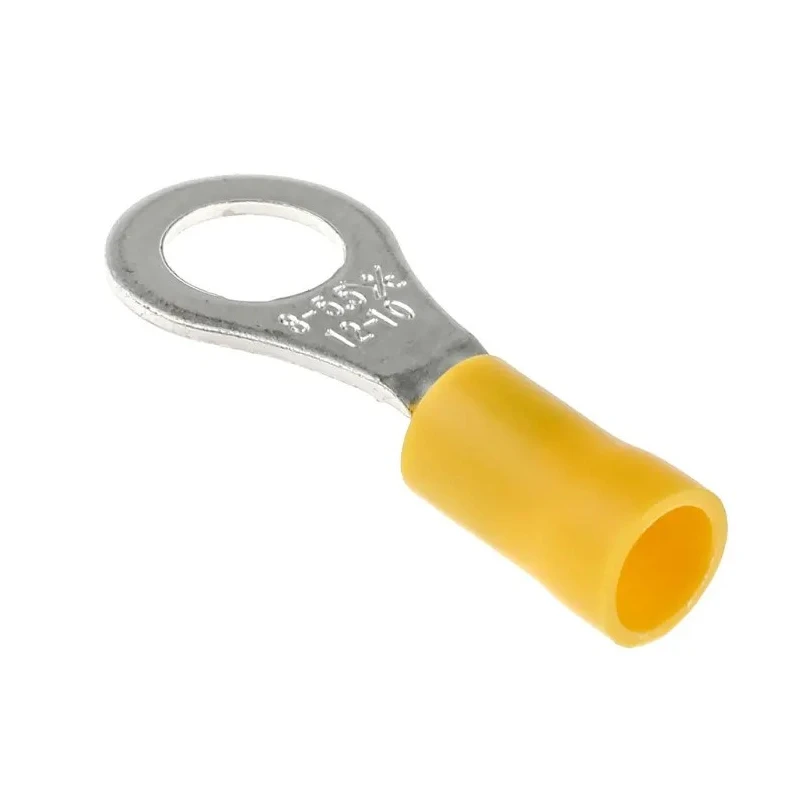

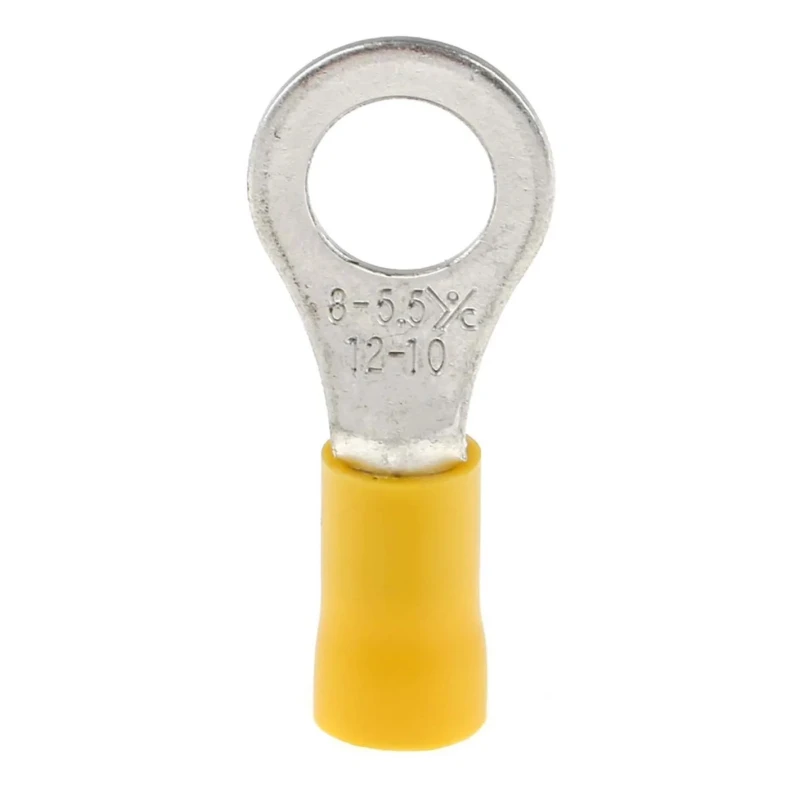

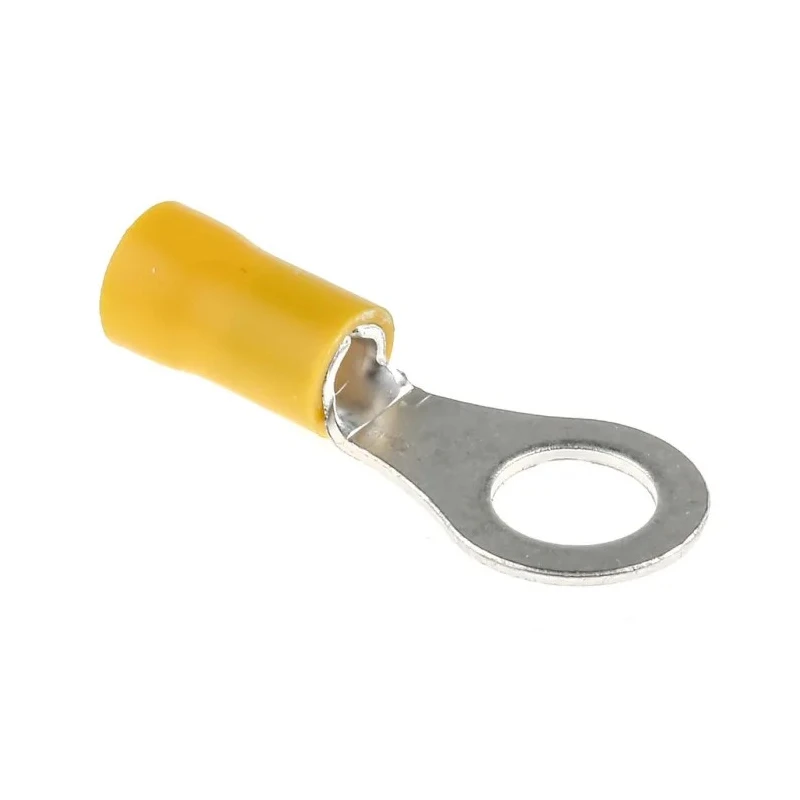

RS PRO Insulated Ring Terminal M8 Stud Size 12 AWG to 10 AWG Yellow Polyvinyl Chloride Insulation 34.2mm Length 534-424
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Yellow |
| THICKNESS | 1mm |
| Model | 534-424 |
| Insulation | Insulated |
| Overall Length | 34.2mm |
| Contact Material | Copper |
| Insulation Material | Polyvinyl Chloride |
| Minimum Operating Temperature | 75°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.5mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 14mm |
| Inner Ring Diameter | 8.4mm |
| Stud Size | M8 |
| CRIMP CONNS-EYELET M8Brand | NEUTRAL |
Key Features
- The ring terminal features yellow polyvinyl chloride insulation for protection and easy identification.
- Constructed with copper contact material and tin plating for excellent conductivity and corrosion resistance.
- The terminal has an outer ring diameter of 14 mm and inner ring diameter of 8.4 mm.
- Overall length measures 34.2 mm with a thickness of 1 mm.
- Rated for minimum and maximum wire sizes 2.5 mm² to 6 mm² respectively.
- Suitable for crimping using the RS PRO vinyl insulated crimp tool.
- Operating temperature rated up to 75°C ensuring stable performance in electrical applications.
- Widely used in industrial control systems, automotive wiring, communication equipment, power supplies, and domestic appliances.
Product Description
RS PRO 534-424 insulated ring terminal is a high-quality electrical connector designed for secure crimping on wires with gauges from 12 AWG to 10 AWG. It features a yellow polyvinyl chloride insulation that provides both electrical protection and color-coded identification to ensure easy use in multiple wiring applications.
The terminal is constructed from highly conductive copper with a tin plating finish to enhance corrosion resistance and ensure reliable long-term electrical contact. Its overall length of 34.2 mm, outer ring diameter of 14 mm, and inner ring diameter of 8.4 mm make it ideal for M8 stud connections. The contact thickness is 1 mm, contributing to its mechanical robustness.
This ring terminal is rated for wire sizes ranging from 2.5 mm² to 6 mm² and can operate continuously at temperatures up to 75°C, making it suitable for demanding electrical environments. It is recommended to use with compatible RS PRO vinyl insulated crimp tools for optimal crimping quality.
Its typical applications include wiring in industrial control and automation systems, automotive electrical connections, communication hardware, power supply wiring, and household electrical appliances. The vinyl insulation also expands entry entry for straightforward wire insertion, increasing ease of installation.
Copper body material provides excellent conductivity and easy crimping. Tin plating enhances corrosion resistance and conductivity. Vinyl insulation ensures electrical insulation and terminal protection. Color-coded yellow insulation allows quick size identification.
Expanded insulation entry facilitates easy wire insertion during crimping. Compatible with RS PRO vinyl insulated crimp ring terminals for secure wiring connections. Suitable for industrial, automotive, communication, power supply, and domestic appliance wiring applications.
Choose RS PRO insulated ring terminals for dependable, corrosion-resistant, and color-coded connections that meet industrial and commercial electrical wiring standards. Explore more RS PRO Electronics Components at EnvMart for your wiring and terminal needs.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for wire sizes ranging from 12 AWG to 10 AWG, which corresponds to 2.5 mm² to 6 mm².
The overall length of the terminal is 34.2 mm, with an outer ring diameter of 14 mm and an inner ring diameter of 8.4 mm.
The terminal features insulation made from polyvinyl chloride (PVC), which provides electrical protection and easy identification.
It is rated for continuous operation at temperatures up to 75°C.
It is recommended to use with compatible RS PRO vinyl insulated crimp tools for optimal crimping quality.
The contact material is copper, which is tin plated to enhance conductivity and corrosion resistance.
The terminal has a thickness of 1 mm.
Typical applications include wiring in industrial control systems, automotive electrical connections, communication hardware, power supply wiring, and household appliances.
The outer ring diameter measures 14 mm.
The inner ring diameter is 8.4 mm.
The country of origin for this terminal is Taiwan.
The yellow polyvinyl chloride insulation provides electrical protection and allows for easy identification of the wire size during installation.
