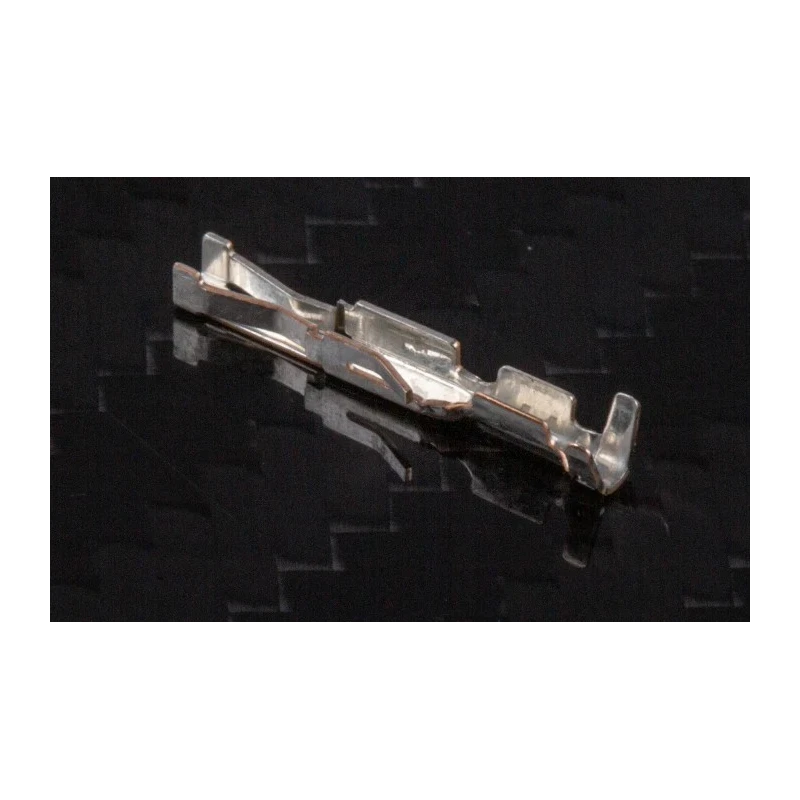

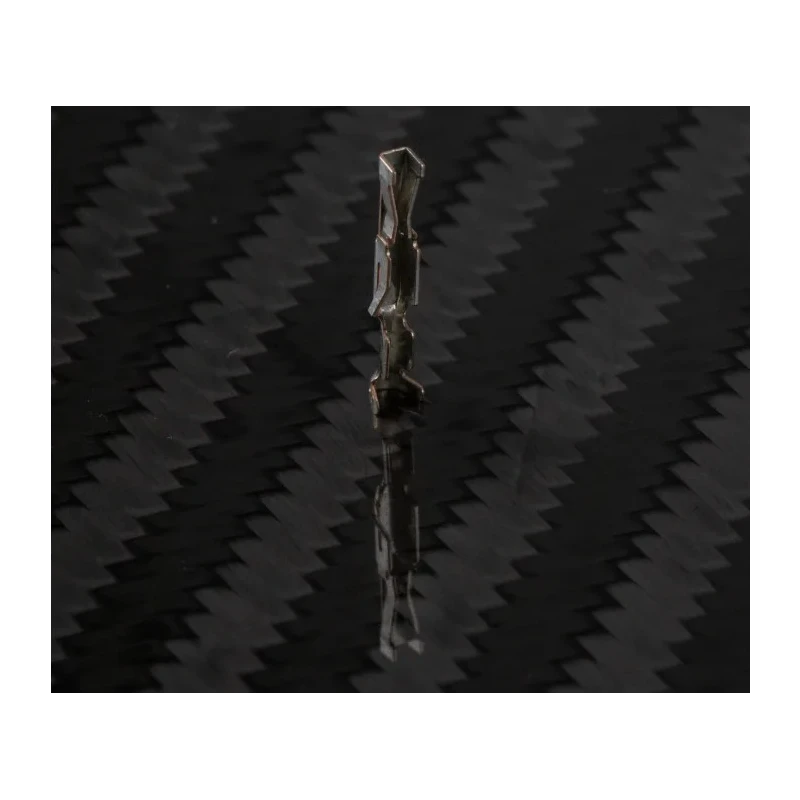

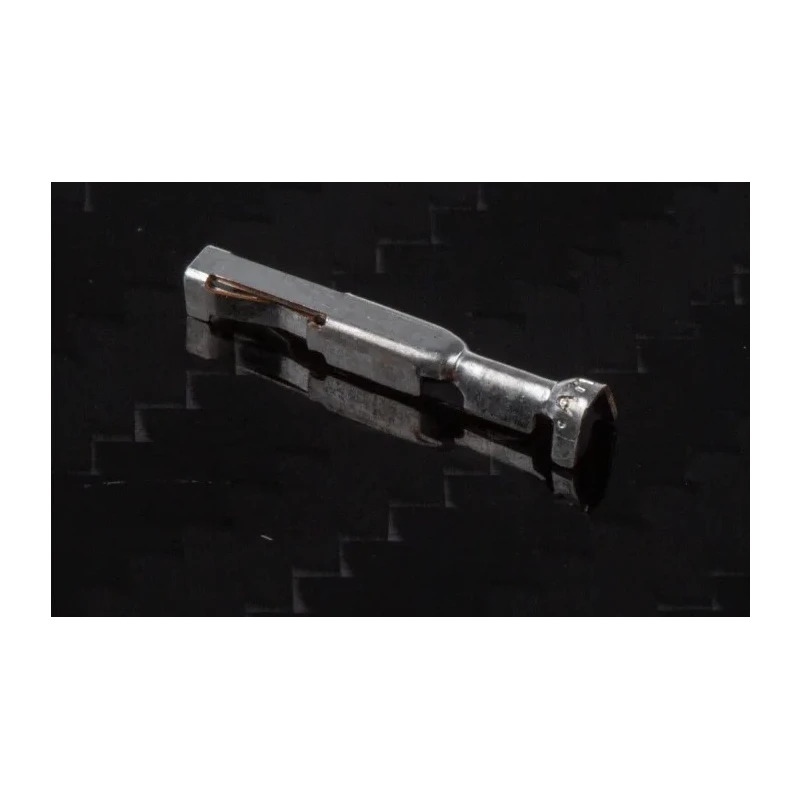

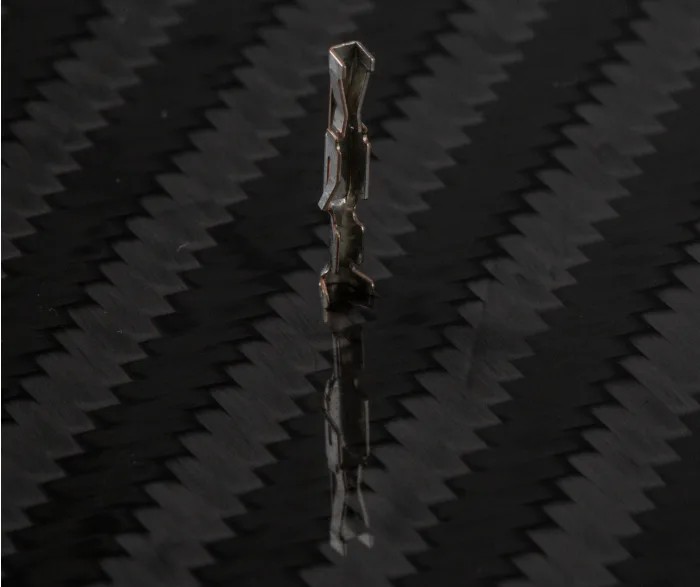

TE Connectivity AMPMODU HE14 Series Female Crimp Terminal 3A Current 28-24 AWG Tin-Plated Phosphor Bronze Contact HE14
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 13.3mm |
| Model | HE14 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU HE14 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| For Use With | AMPMODU HE14 Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Compatible with AMPMODU HE14 connector housings for reliable connections.
- Supports wire sizes from 28 AWG minimum to 24 AWG maximum.
- Constructed with tin-plated phosphor bronze for durability and corrosion resistance.
- Designed for crimp termination ensuring secure electrical contact.
- Maximum operating temperature of 125°C with minimum of -55°C.
- Compact length of 13.3mm for space-efficient applications.
- Rated for a continuous current of 3 amperes.
- Contact resistance up to 20 milliohms ensuring low electrical loss.
Product Description
TE Connectivity HE14 series female crimp terminal is designed specifically for AMPMODU HE14 connector housings, providing a dependable electrical connection solution for industrial and electronic applications.
Constructed from phosphor bronze with a tin plating, this crimp terminal ensures excellent corrosion resistance and electrical conductivity. It supports wire sizes ranging from 28 AWG (0.08 mm²) minimum to 24 AWG (0.2 mm²) maximum, accommodating typical wiring requirements in automation and control systems.
The terminal is rated for a continuous current of 3 amperes and operates reliably within a temperature range of -55°C to 125°C, making it suitable for harsh industrial environments. The crimp termination type offers a secure mechanical and electrical bond when used with compatible tooling.
With a compact length of 13.3 mm, the terminal fits efficiently into applications where space is limited. Its low contact resistance of up to 20 milliohms minimizes power loss and heat generation, enhancing the overall reliability of the electrical connection.
The AMPMODU HE14 interconnect system, including these terminals, is a widely accepted signal standard in automation and control applications, known for cost efficiency and robust performance.
Compatible with AMPMODU HE14 connector housings for reliable connections. Supports wire sizes from 28 AWG minimum to 24 AWG maximum. Made from tin-plated phosphor bronze for durability and corrosion resistance. Crimp termination ensures secure and stable electrical connections.
Operates between -55°C and 125°C temperature range. Compact length of 13.3 mm suitable for space-constrained setups. 3A continuous current rating for moderate power applications. Low contact resistance up to 20 mΩ reduces energy losses.
This crimp terminal is ideal for use in industrial automation, electronic equipment manufacturing, control systems, and other commercial electrical applications requiring reliable wire-to-board connections. It complies with basic industry standards and comes without specific approvals.
Explore more connectors and electronic components from TE Connectivity and enhance your automation and control system designs with precision components listed on EnvMart.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a continuous current of 3 amperes, suitable for moderate power applications.
It supports wire sizes ranging from 28 AWG (0.08 mm²) minimum to 24 AWG (0.2 mm²) maximum.
The maximum operating temperature is 125°C, allowing it to function in various environments.
It operates reliably within a temperature range down to -55°C.
The terminal has a compact length of 13.3 mm, making it suitable for space-constrained applications.
It is constructed from phosphor bronze with a tin plating, providing corrosion resistance and good electrical conductivity.
This model utilizes a crimp termination type, ensuring a secure mechanical and electrical bond when used with compatible tooling.
The maximum contact resistance is up to 20 milliohms, which helps minimize power loss and heat generation.
It is specifically designed for use with AMPMODU HE14 connector housings, ensuring reliable connections.
This crimp terminal is suitable for industrial automation, electronic equipment manufacturing, and control systems requiring reliable wire-to-board connections.
This terminal is a female type, designed for specific connections within the AMPMODU HE14 system.
The terminal measures 13.3 mm in length, accommodating various installation requirements in compact spaces.
