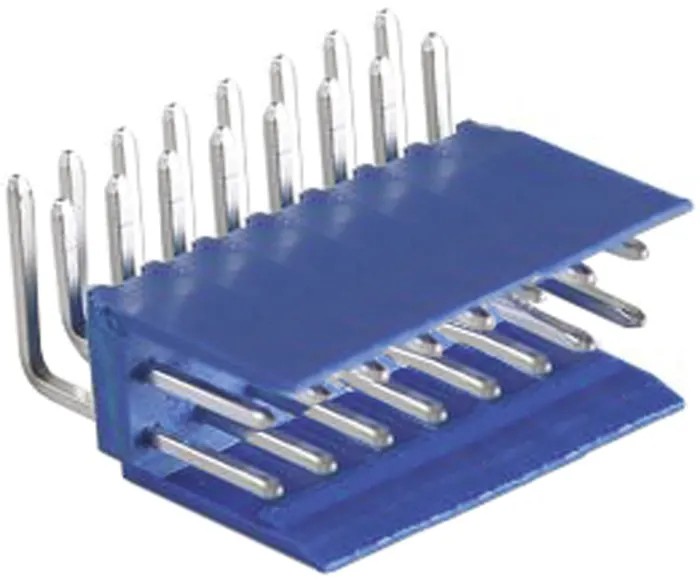

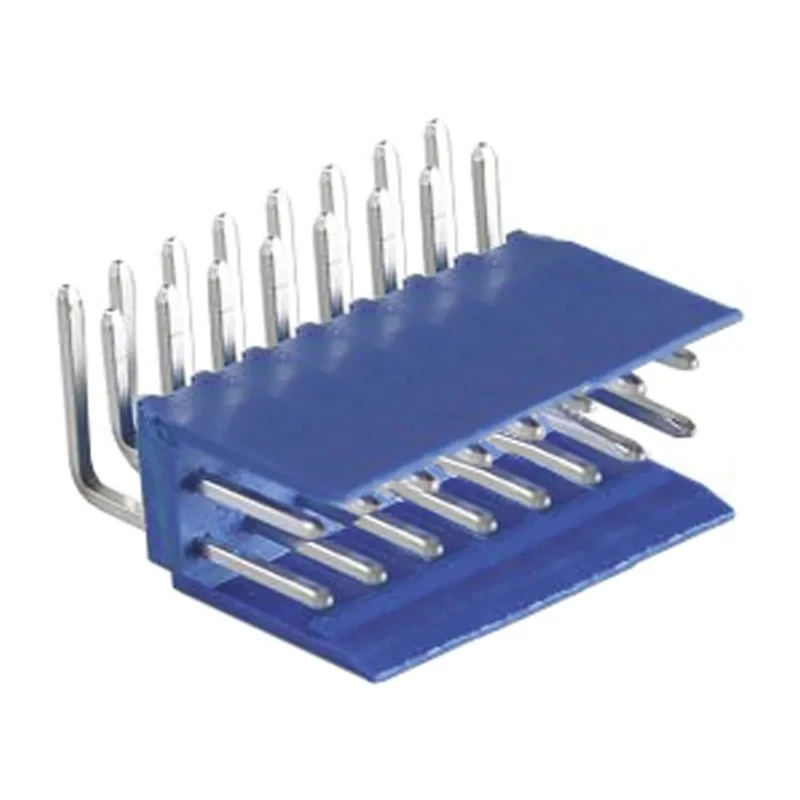

NEUTRAL AMPMODU Series Right Angle Through Hole PCB Header, 16 Contacts, 2.54 mm Pitch, 2 Row, Shrouded HE14
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | NEUTRAL |
| Orientation | Right Angle |
| Current | 3A |
| Model | HE14 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU HE14 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| HE14 16W 2/ROW 90 HDRBrand | NEUTRAL |
Key Features
- Constructed with high temperature thermoplastic housing providing UL 94V-0 rated flame resistance.
- Features a 2-row arrangement with 16 male phosphor bronze contacts plated with tin for durability.
- Designed with integrated friction lock and shrouding to prevent mismating and protect pins.
- Supports operation at up to 500 volts and currents up to 3 amps for reliable signal transmission.
- Operating temperature range from -40°C to 105°C ensures performance in diverse environments.
- Suitable for applications in automotive controls, telecommunications, industrial equipment, medical instruments, and storage appliances.
- Compatible with AMPMODU HE14 IDC receptacles for terminating discrete wires or ribbon cables.
- Tail pin length is 2.9 mm for secure soldering in PCB mounting.
Product Description
TE Connectivity HE14 Series Right Angle Through Hole PCB Header, model HE14, features 16 contacts arranged in two rows with a 2.54 mm pitch. This shrouded male connector employs high-temperature thermoplastic housing rated to UL 94V-0 standard, ensuring flame resistance and safety in demanding industrial applications.
The housing is polarized and shrouded to prevent mismating and protect the contacts, which are made from phosphor bronze and plated with tin. This connector is designed for through hole mounting on printed circuit boards, providing a secure wire-to-board connection.
Electrical specifications include a voltage rating of 500 V and a current carrying capacity of 3 A. It operates reliably across a broad temperature range from -40°C to 105°C, suitable for automotive, industrial, telecommunications, medical, and storage equipment environments.
The integrated friction lock ensures a secure mating connection, and the tail pins measure 2.9 mm for robust solder terminination. This PCB header pairs with AMPMODU HE14 IDC receptacles used for terminating discrete wires or 2.54 mm pitch ribbon cables, offering versatility in wire harnessing applications.
These connectors are part of the TE Connectivity AMPMODU HE14 interconnect system recognized for reliability and economy in automation and control systems. High temperature thermoplastic housing providing UL 94V-0 rated flame resistance.
Polarized shrouded design prevents mismating and protects pins. Phosphor bronze contacts plated with tin for durability. Through hole mount type suitable for PCB soldering. Operational voltage of 500 V and current rating of 3 A.
Operating temperature range from -40°C to 105°C. Integrated friction lock for secure connection. Compatible with AMPMODU HE14 IDC receptacles.
This TE Connectivity HE14 PCB header is ideal for use in industrial power distribution, automotive controls, telecommunications, and medical instrument systems. Browse more connectors and electronic components in the Electronics & Electricals category on EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 500 volts and a current carrying capacity of 3 amps.
It operates reliably across a temperature range from -40°C to 105°C.
The connector features 16 contacts arranged in two rows.
The housing is made from high-temperature thermoplastic, while the contacts are made of phosphor bronze and plated with tin for durability.
It utilizes solder termination for secure mounting on printed circuit boards.
Yes, it is compatible with AMPMODU HE14 IDC receptacles for terminating discrete wires or ribbon cables.
The tail pin length is 2.9 mm, which aids in secure soldering during PCB mounting.
This model is designed with a right angle orientation for through hole mounting.
Yes, it features a polarized and shrouded design to prevent mismating and protect the contacts.
It is suitable for applications in automotive controls, telecommunications, industrial equipment, medical instruments, and storage appliances.
This connector is part of the TE Connectivity AMPMODU HE14 series.
The country of origin for this PCB header is India.
