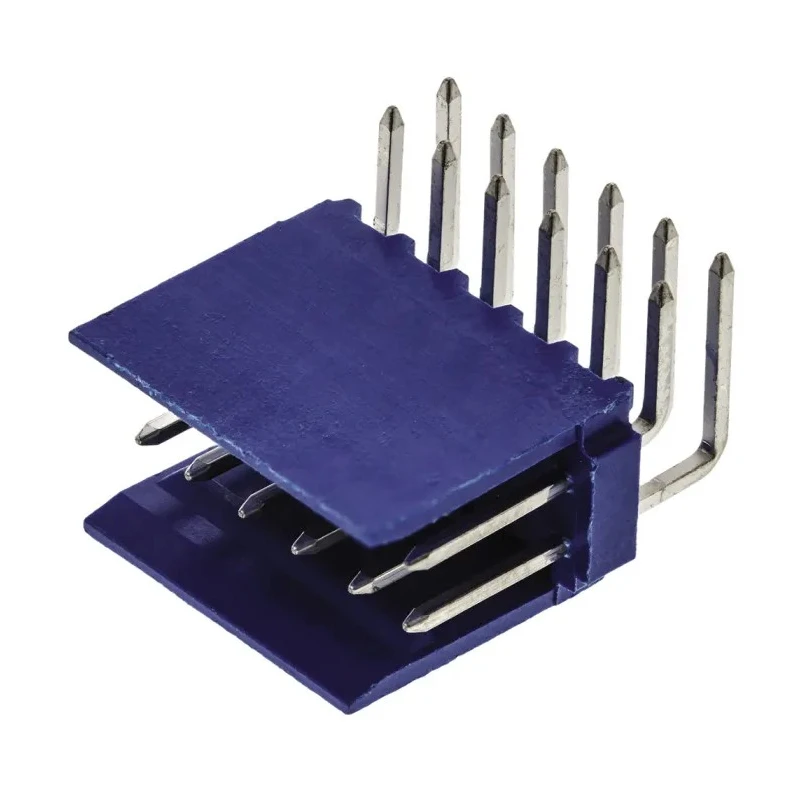

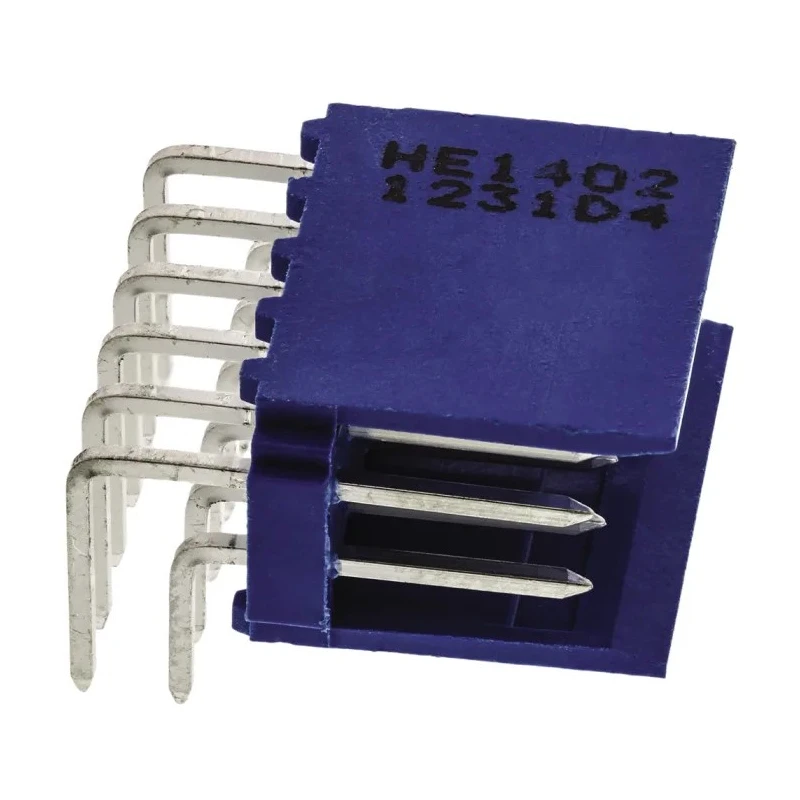

NEUTRAL AMPMODU Series Right Angle Through Hole Shrouded PCB Header 12 Contacts 2.54 mm Pitch 2 Row HE14
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | NEUTRAL |
| Orientation | Right Angle |
| Current | 3A |
| Model | HE14 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU HE14 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| HE14 12W 2/ROW 90 HDRBrand | NEUTRAL |
Key Features
- Features high temperature UL 94V-0 rated thermoplastic housings for durability.
- Shrouded design provides pin protection and prevents mismating with polarized construction.
- Integrated friction lock ensures secure and reliable connections.
- Constructed with phosphor bronze contacts plated with tin for excellent conductivity and corrosion resistance.
- Rated for 3A current, 500V voltage, and temperature range from -40°C to 105°C.
- Designed for wire-to-board connection systems with right angle orientation.
- Suitable for automotive controls, industrial equipment, telecommunications, medical instruments, and storage applications.
- Complies with standard through hole mount termination using soldering.
Product Description
TE Connectivity HE14 model AMPMODU series right angle shrouded PCB header features 12 contacts with a 2.54 mm pitch and 2 rows. This through hole connector offers excellent durability with its UL 94V-0 rated thermoplastic housing that withstands high temperatures up to 105°C. The housing is polarized to prevent connection errors and includes protective shrouds around the pins.
Constructed with tin-plated phosphor bronze male contacts, this PCB header supports currents up to 3A and voltages up to 500V, making it suitable for a wide range of industrial and electronic applications.
The integrated friction lock mechanism ensures a stable connection in environments subject to vibration or movement.
This connector series is designed specifically for wire-to-board mating systems and enables easy termination via soldering with a 2.9 mm tail pin length. Its right angle orientation optimizes PCB space utilization.
Typical applications include automotive control systems, industrial testing equipment, computer and telecommunication hardware, medical instruments, and storage devices. The AMPMODU HE14 interconnect system is an industry-recognized solution for automation and control applications requiring reliable, economical signal connections.
High temperature UL 94V-0 rated thermoplastic housing. Polarized shrouded design for pin protection and mismating prevention. Phosphor bronze tin-plated contacts with solder termination. 2.54 mm pitch and double row with right angle orientation.
3A current and 500V voltage rating. Operating temperature range from -40°C to 105°C. Integrated friction lock for secure mating. Suitable for automotive, industrial, medical, telecommunications, and storage equipment. Discover the extensive selection of industrial-grade PCB connectors at EnvMart to support your manufacturing and electronic applications.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 3A and a voltage of 500V.
The HE14 series features a pitch of 2.54 mm and has 12 contacts.
It is constructed with a thermoplastic housing and phosphor bronze contacts that are plated with tin.
The operating temperature range is from -40°C to 105°C.
This connector uses solder termination for installation.
It is designed for wire-to-board connection systems.
Yes, it features a shrouded design that provides pin protection and prevents mismating with its polarized construction.
The tail pin length is 2.9 mm.
This model has a right angle orientation, which optimizes PCB space utilization.
Typical applications include automotive controls, industrial equipment, telecommunications, medical instruments, and storage devices.
The housing is rated as UL 94V-0, indicating high temperature resistance and durability.
This PCB header has 2 rows.
