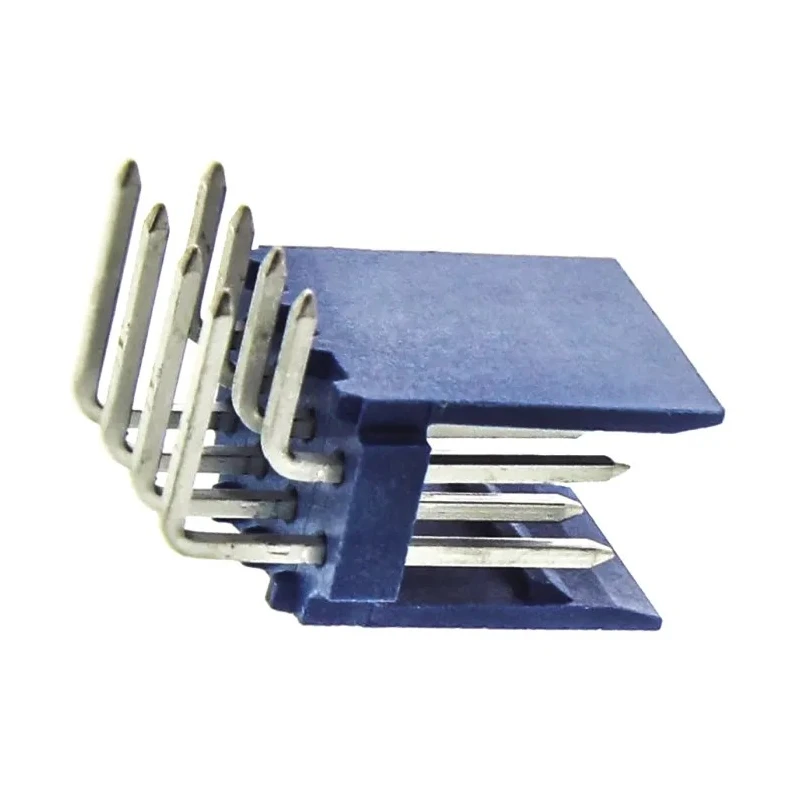

NEUTRAL AMPMODU Series Right Angle Through Hole PCB Header 8 Contact 2.54 mm Pitch 2 Row Shrouded HE14
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | NEUTRAL |
| Orientation | Right Angle |
| Current | 3A |
| Model | HE14 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU HE14 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| HE14 8W 2/ROW 90 HDRBrand | NEUTRAL |
Key Features
- Constructed with high temperature thermoplastic housing rated UL 94V-0 for enhanced durability.
- Shrouded design provides pin protection and polarization to prevent mismating.
- Integrated friction lock ensures secure and stable mating connection.
- Suitable for use with AMPMODU HE14 IDC receptacles for discrete wires or ribbon cable termination.
- Operates at a maximum voltage of 500V and current rating of 3A per contact.
- Phosphor bronze contacts with tin plating offer reliable electrical performance.
- Designed for solder termination with 2.9 mm tail pin length.
- Operates reliably between -40°C and 105°C ambient temperatures.
Product Description
TE Connectivity HE14 Series Right Angle Through Hole PCB Header, model HE14, features a durable shrouded design with 8 contacts arranged in 2 rows and a 2.54 mm pitch, optimized for wire-to-board connections. The header is constructed with a blue high temperature UL 94V-0 rated thermoplastic housing, enhancing its ability to perform reliably in demanding environments.
The shrouds provide added pin protection and prevent mismating through polarization, while the integrated friction lock ensures a secure mating connection. Phosphor bronze contacts plated with tin ensure consistent electrical conductivity and resistance to corrosion. With a current rating of 3A and voltage capability up to 500V, the connector supports a broad range of industrial and commercial applications.
This PCB header supports right angle mounting and solder termination, with tail pins measuring 2.9 mm for precise PCB integration. It offers robust operation across a temperature range of -40°C to 105°C, making it well-suited for automotive controls, industrial equipment, telecommunications, medical instrumentation, and computing applications.
The AMPMODU interconnect system including the HE14 series is a reliable and economical solution widely used in automation and control systems. Its compatibility with AMPMODU HE14 IDC receptacles allows for efficient wire or ribbon cable termination.
High temperature thermoplastic UL 94V-0 rated housing ensures durability. Shrouded pins provide physical protection and prevent mismating. Integrated friction lock for secure and stable connection. Phosphor bronze tin-plated contacts for reliable conductivity.
Suitable for automotive, industrial, computing, telecommunications, and medical applications. Operates at 3A current and 500V voltage ratings. Through hole mount with right angle orientation for PCB integration. Wide operating temperature range from -40°C to 105°C.
Explore the TE Connectivity range of PCB Headers and connectors on EnvMart for reliable and high-performance interconnect solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this model is 500V.
This connector has a current rating of 3A per contact.
The pitch size of the contacts is 2.54 mm.
The contacts are made of phosphor bronze and are plated with tin.
This model uses solder termination.
The tail pin length is 2.9 mm.
It operates reliably between -40°C and 105°C.
This header has 8 contacts arranged in 2 rows.
This model features a right angle orientation.
Yes, it is suitable for use with AMPMODU HE14 IDC receptacles for ribbon cable termination.
The housing is made of high temperature thermoplastic rated UL 94V-0.
It is suitable for automotive controls, industrial equipment, telecommunications, medical instrumentation, and computing applications.
