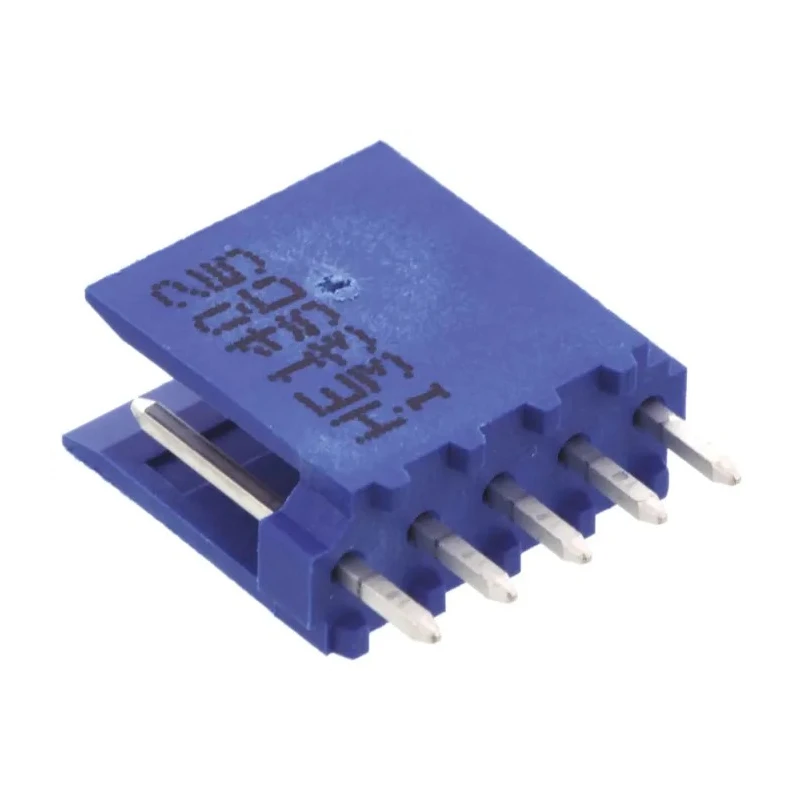

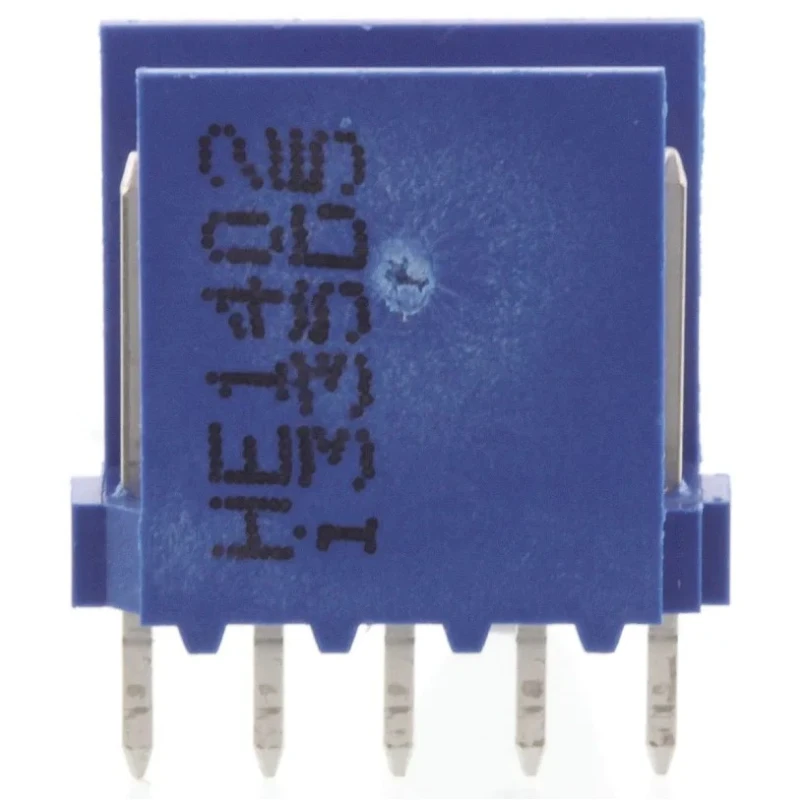

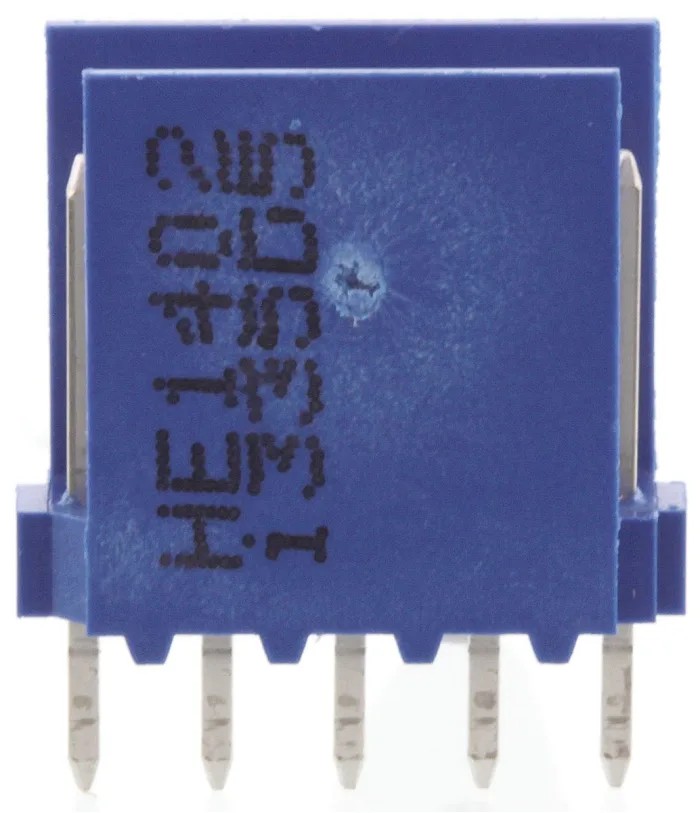

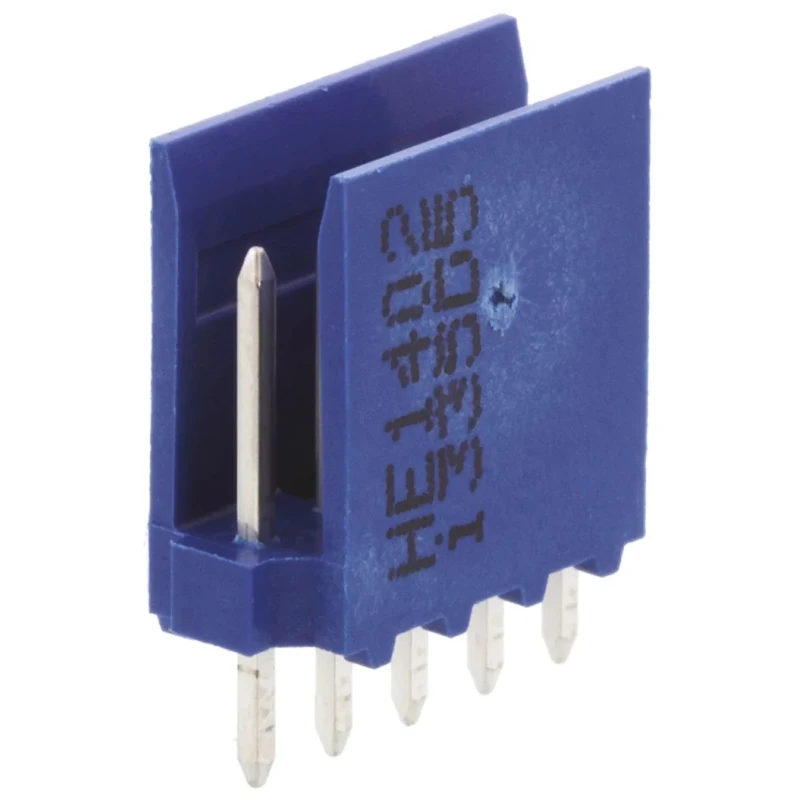

NEUTRAL AMPMODU Series Straight Through Hole Shrouded PCB Header 5 Contacts 2.54mm Pitch HE14
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | NEUTRAL |
| Orientation | Straight |
| Current | 3A |
| Model | HE14 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU HE14 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.79mm |
| HE14 5W 1/ROW STRT HDRBrand | NEUTRAL |
Key Features
- Features high temperature thermoplastic housing for durability.
- Includes pin shrouds for enhanced protection against damage.
- Polarized design prevents incorrect mating during assembly.
- Integrated friction lock ensures secure and stable connection.
- Suitable for industrial, automotive, telecommunications, medical, and test equipment applications.
- Contact material is phosphor bronze with tin plating to improve conductivity and resist corrosion.
- Operates within -40°C to 105°C temperature range for versatility.
- Rated for 3A current and 500V voltage capacity.
Product Description
TE Connectivity HE14 Series Shrouded PCB Header model HE14 features a 2.54 mm pitch, 1 row, and 5 contacts designed for through-hole mounting on PCBs in demanding electronic applications. The connector housing is made from blue high temperature UL 94V-0 rated thermoplastic, providing excellent thermal resistance and mechanical strength.
This shrouded male header incorporates polarization to prevent mismating and includes protective shrouds to safeguard pins during assembly and operation. An integrated friction lock enhances connection security and stability, ensuring reliable wire-to-board interfacing.
The connector system is wire-to-board type, with contact material of phosphor bronze plated with tin for enhanced conductivity and corrosion resistance. Tail pin length is 2.79 mm, suitable for solder termination. The device operates safely between -40°C and 105°C and supports current up to 3A and voltage up to 500V.
Widely used in automotive controls, industrial machinery, telecommunications, computers, medical instruments, storage equipment, and appliances, this TE Connectivity AMPMODU HE14 header meets the rigorous demands of these environments with dependable performance.
The package contains a single shrouded PCB header with 5 contacts aligned in a single row and spaced at 2.54 mm pitch. The robust design and features make it a versatile choice for multiple PCB interconnection needs across various industrial and commercial applications.
High temperature thermoplastic housing for durability. Protective shrouds guard pins. Polarization prevents mismating. Integrated friction lock provides secure connection. Suitable for automotive, industrial, telecommunications, and medical uses.
Phosphor bronze contact with tin plating. Operating temperature range from -40°C to 105°C. 3A current rating and 500V voltage rating. Tail pin length 2.79 mm for through-hole solder termination. Single row, 5 contacts, 2.54 mm pitch for compact PCB design.
Explore more PCB connectors and related components on EnvMart to support your electronics design and manufacturing requirements.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this PCB header is 2.54 mm.
It is rated for a current of 3A and a voltage of 500V.
This connector operates within a temperature range of -40°C to 105°C.
The housing is made of high temperature thermoplastic, and the contacts are made of phosphor bronze with tin plating.
This model features 5 contacts arranged in a single row.
It uses solder termination for secure connections.
Yes, it has a polarized design to prevent incorrect mating during assembly.
The tail pin length is 2.79 mm, suitable for through-hole solder termination.
It is suitable for automotive, industrial, telecommunications, medical, and test equipment applications.
This model utilizes a wire-to-board connector system.
It includes pin shrouds for protection against damage and an integrated friction lock for a secure connection.
The country of origin for this PCB header is India.
